Expansions and Configurations
10.3 Installing -104 / PC/104 Plus modules
SIMATIC IPC427C
Operating Instructions, 04/2009, A5E02414743-01
61

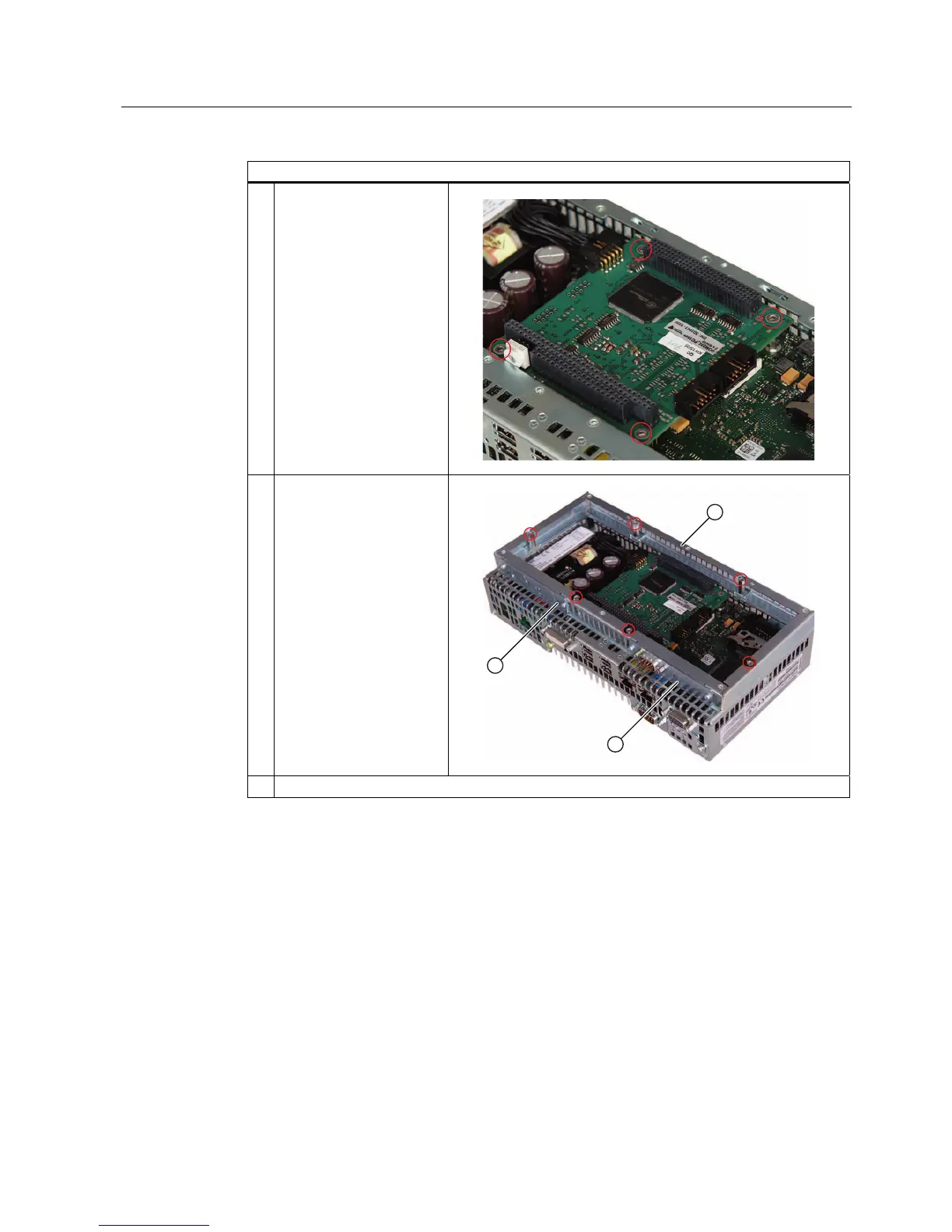

Steps for mounting an expansion module
3 Secure the module with four
screws or spacing bolts.
4 Mount the expansion frame
② and secure it with six
spacing bolts.
Mount the slot plates ③.
5 Mount the front panel on the expansion frame.
Mounting additional PCI-104 or PC/104-
Plus
modules
The device can be equipped with a maximum of PCI-104 or PC/104-
Plus
modules. An
additional expansion frame is required for each module.
Follow the mounting procedure described in the previous section (steps 2 to 4).
Configuring/installing a PCI-104 or PC/104-
Plus
module
You may need to make settings in the BIOS Setup. For detailed information about
installation, refer to the manufacturer documentation for the respective module.
