Expansions and Configurations
10.4 Installing/Removing Compact Flash Cards
SIMATIC IPC427C
64 Operating Instructions, 04/2009, A5E02414743-01
Installing the Compact Flash card

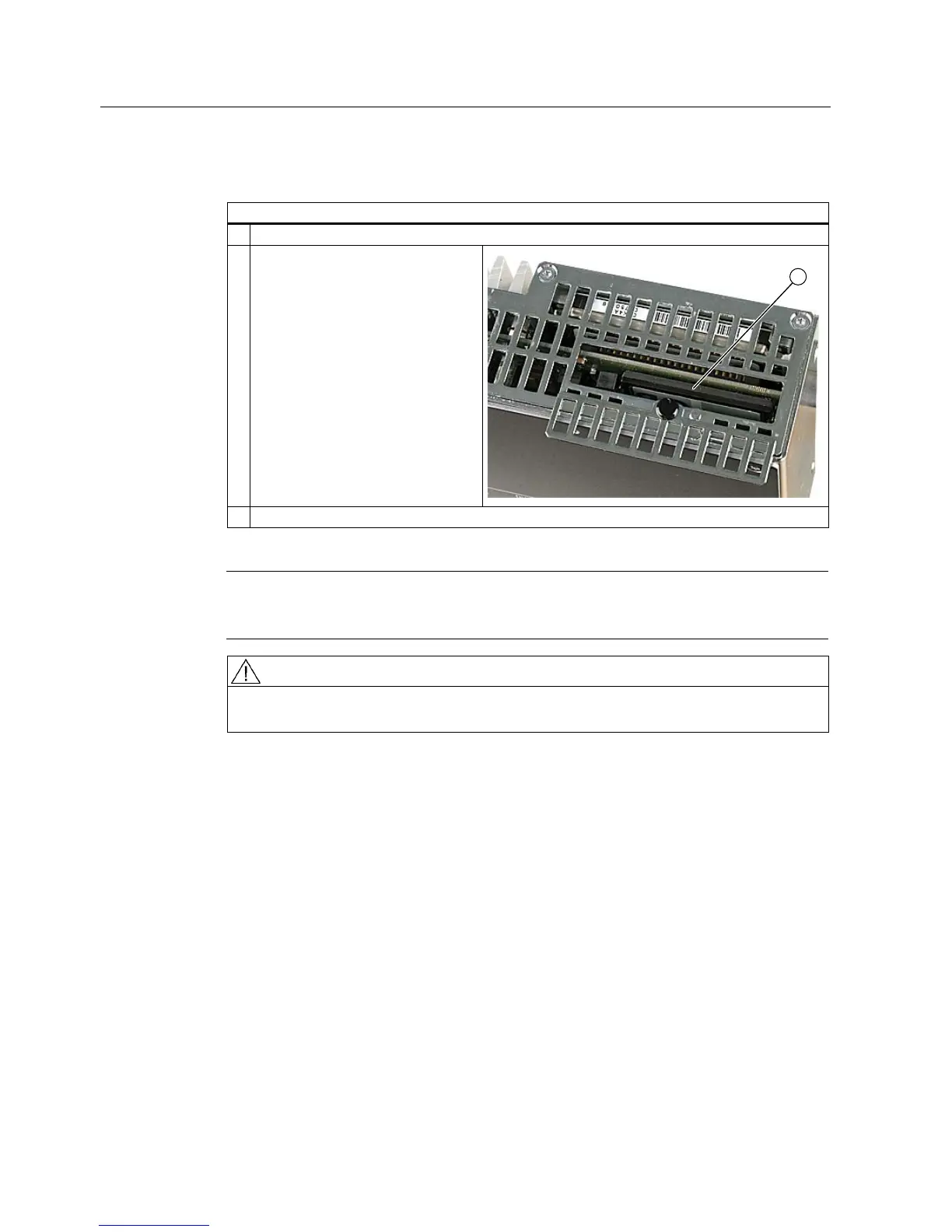

Steps for installing a Compact Flash card
1 Open the module receptacle.
2 Insert the CompactFlash card with the
connector facing in until it locks into
place ①.
3 Close the module receptacle again.
Note
The Compact Flash slot is coded against reversed insertion. Insert it so that its upper side
(label side) is facing the front panel of the device.
CAUTION
If the Compact Flash card meets resistance, flip it over. Never insert the CompactFlash
card with force.
