Mounting and connecting the device
3.4 Connecting the device
SIMATIC IPC477D, IPC477D PRO
Operating Instructions, 11/2016, A5E31347228-AF
101
Securing cables in the built-in unit with ATEX/IECEx/UL Hazloc approval
The strain relief for USB and DisplayPort connectors prevents unintentional disconnection of
the connectors from the device. The strain relief is included in the scope of delivery of
devices with ATEX/IECEx/UL Hazloc approval (identified as such in the configurator) and is
delivered with the required fasteners.

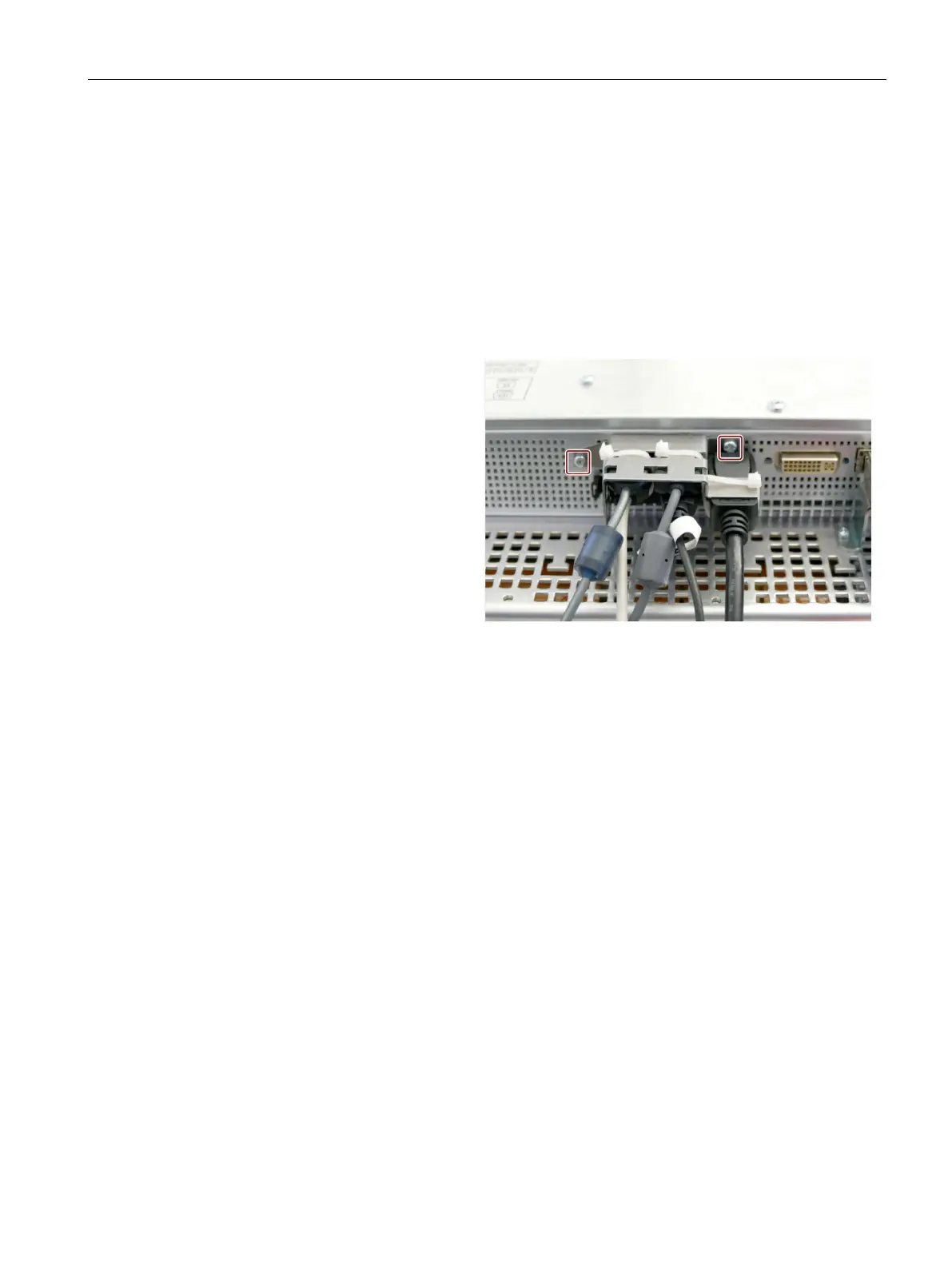

Fasten the strain relief at the points shown.
Connect the USB and DisplayPort cables.
3. Secure each connector with a cable tie.
