Mounting and connecting the device
3.4 Connecting the device
SIMATIC IPC477D, IPC477D PRO
102 Operating Instructions, 11/2016, A5E31347228-AF

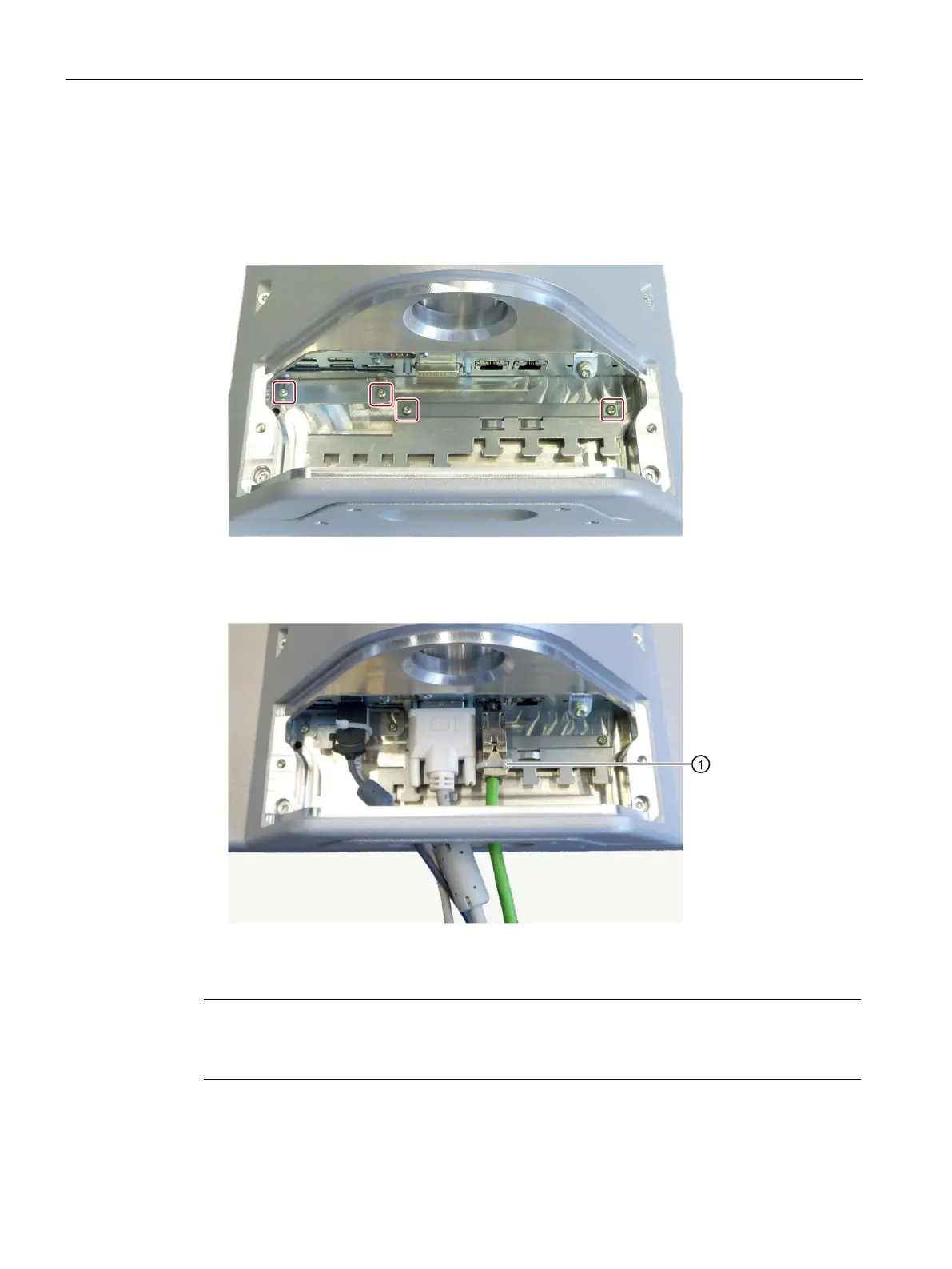

Securing the cables on the PRO device
Strain relief for the device is provided in the scope of delivery.
1. Fasten the strain reliefs at the points shown.
2. Connect the USB, DisplayPort and LAN cables.
3. Secure each cable connected to the device to the strain relief using a cable tie or fixing
screws for the D-sub connectors. The required cable ties are not included.
Fastening with cable ties
4. Cut off the protruding ends of the cable ties.
Note
No PROFIBUS interface for 15" devices
A PROFIBUS interface is not available for 15" devices.
