Mounting and connecting the device
3.4 Connecting the device
SIMATIC IPC477D, IPC477D PRO
88 Operating Instructions, 11/2016, A5E31347228-AF
Power supply PRO device
3.4.3.1
Opening and closing the terminal compartment cover
Requirements
● The device is disconnected from the power supply.
● Torx TX20 screwdriver
Opening the terminal compartment cover

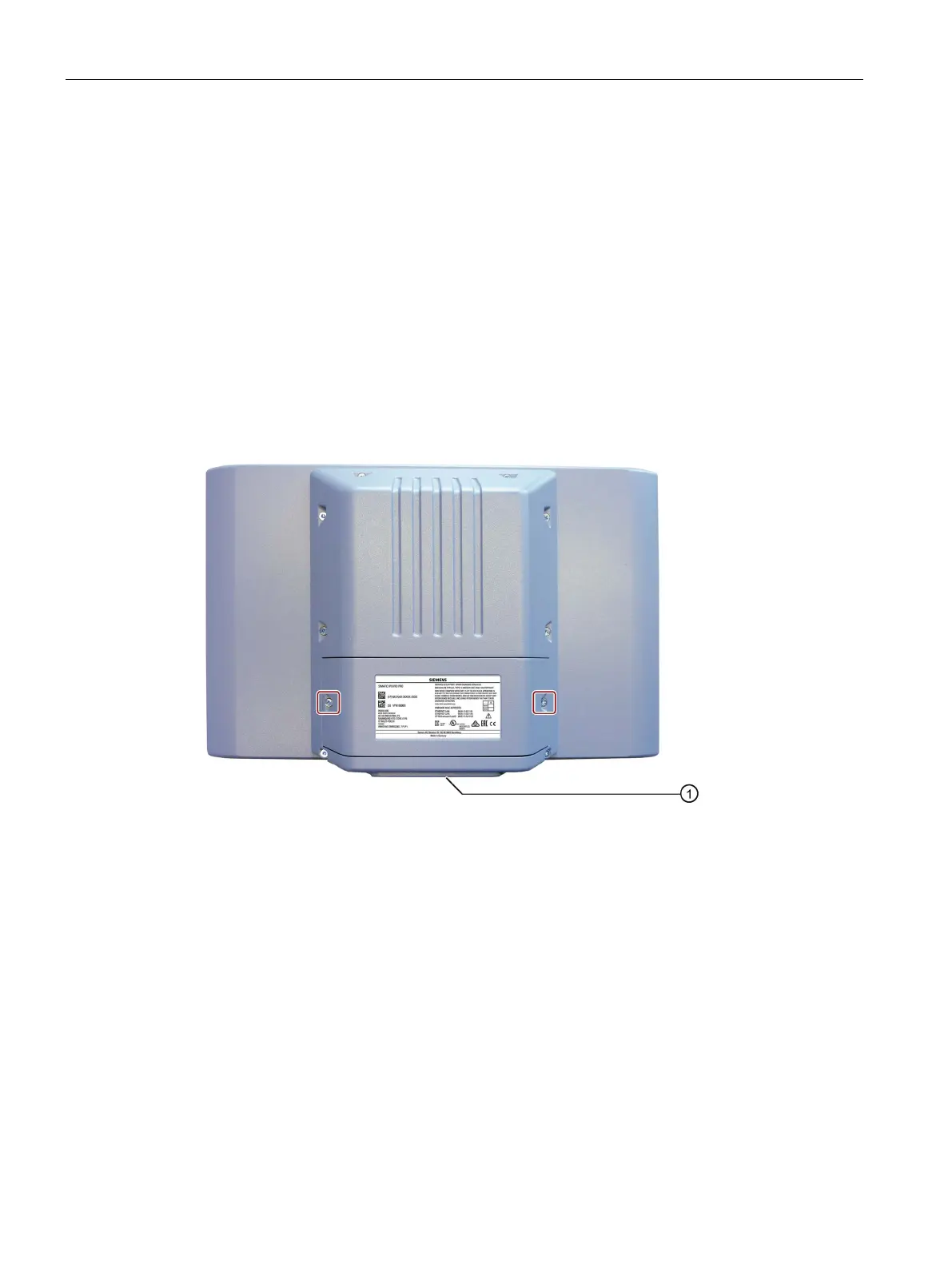

Opening the terminal compartment cover for device version stand and support arm without
extension.
