Overview
1.6 System components for built-in units
SIMATIC IPC477D, IPC477D PRO
34 Operating Instructions, 11/2016, A5E31347228-AF
Other accessories

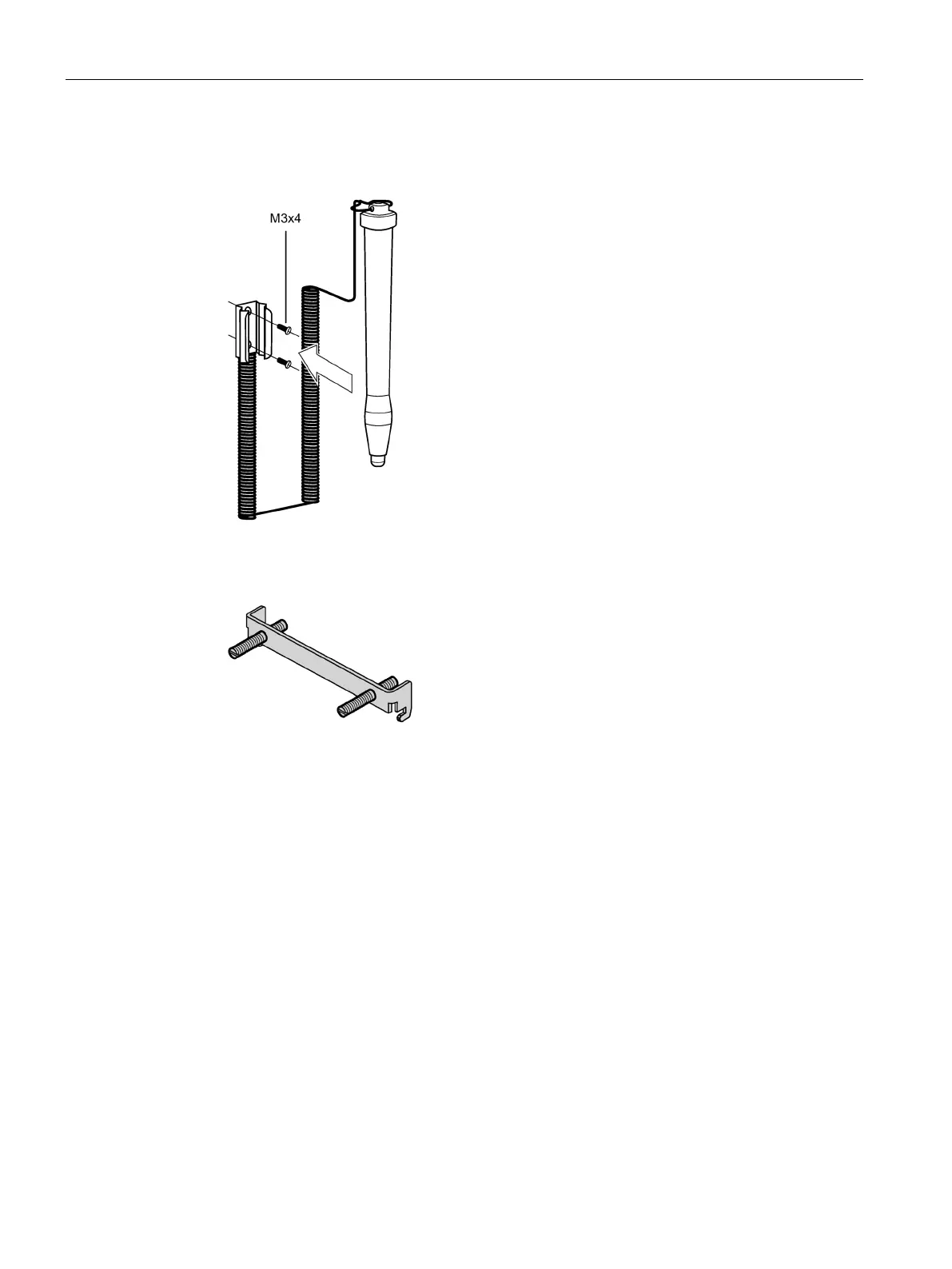

● Touch stylus only for devices with resistive single-touch screen
● Mounting bracket
If there are higher requirements for the front seal, fasten the device with mounting
brackets in a control cabinet.
1.6
System components for built-in units
RS422-RS232 converter
The converter is required to connect controllers from other manufacturers. Connect the
RS422-RS232 converter to the RS422/RS485 interface. The converter converts the input
signals to RS232 signals.
Article number of the converter RS 422 to RS 232: 6AV6 671-8XE00-0AX0.
90° elbow adapter
If space is limited, you can use an elbow adapter at the RS 422/RS 485 interface.
Article number of the 90° elbow adapter: 6AV6 671-8XD00-0AX0.
