Mounting and connecting the device
3.2 Installing the built-in unit
SIMATIC IPC477D, IPC477D PRO
Operating Instructions, 11/2016, A5E31347228-AF
65
Mounting the device with mounting brackets
If there are strict requirements for the front seal, it may be necessary to fasten the device
with mounting brackets in a cabinet. You can secure each device with 6 mounting brackets.
The mounting brackets are available as accessories. You can find ordering information in the
section Accessories (Page 32).
● All packaging components and protective films have been removed from the device.
● The accessory mounting brackets are available.
● 2.5 mm hexagonal spanner
Note
If the mounting seal is damaged or protrudes over the device, the degree of protection is not
guaranteed.

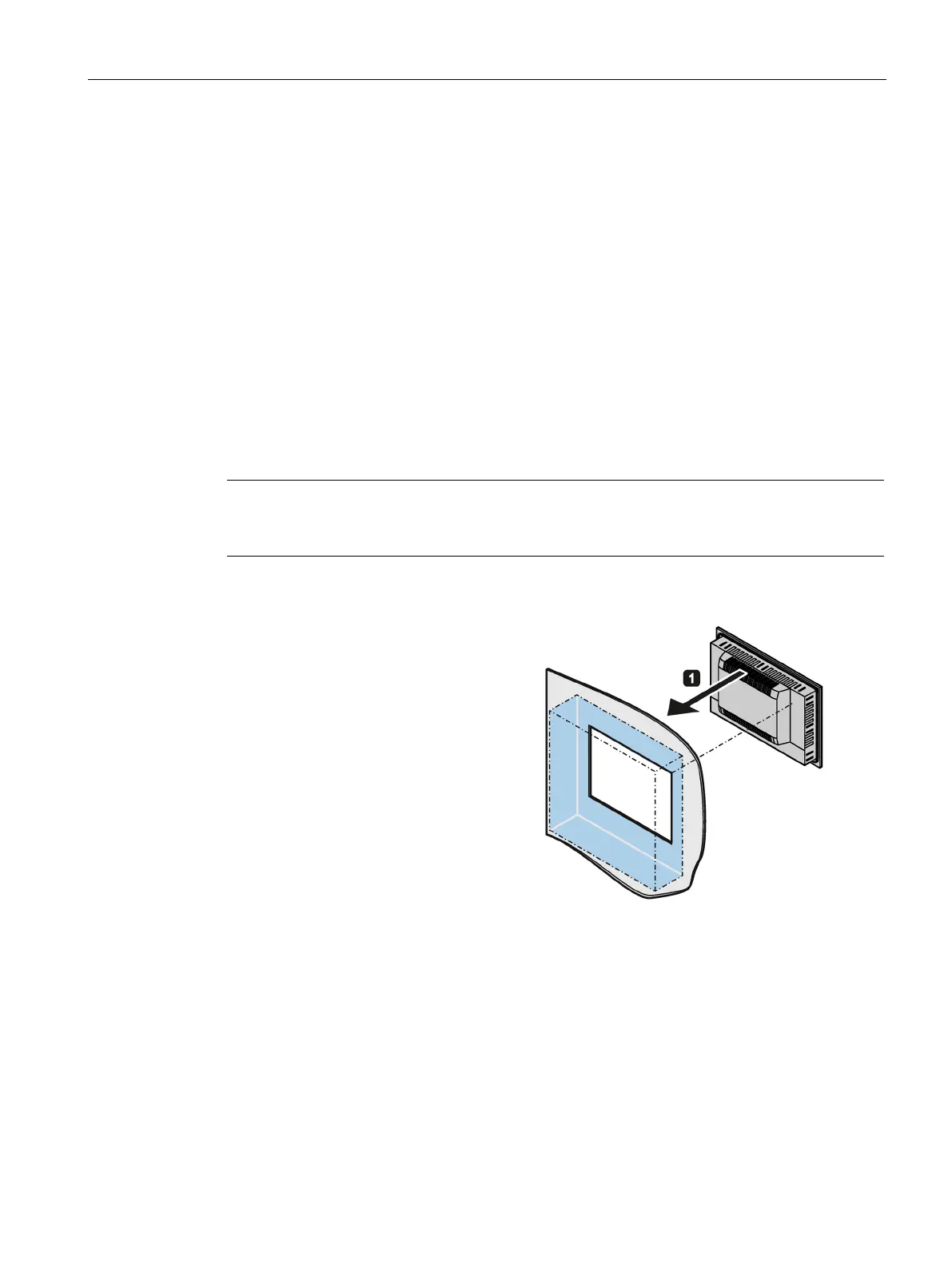

Working from the front, insert the device
i
nto the mounting cut-out.
