Mounting and connecting the device
3.2 Installing the built-in unit
SIMATIC IPC477D, IPC477D PRO
64 Operating Instructions, 11/2016, A5E31347228-AF

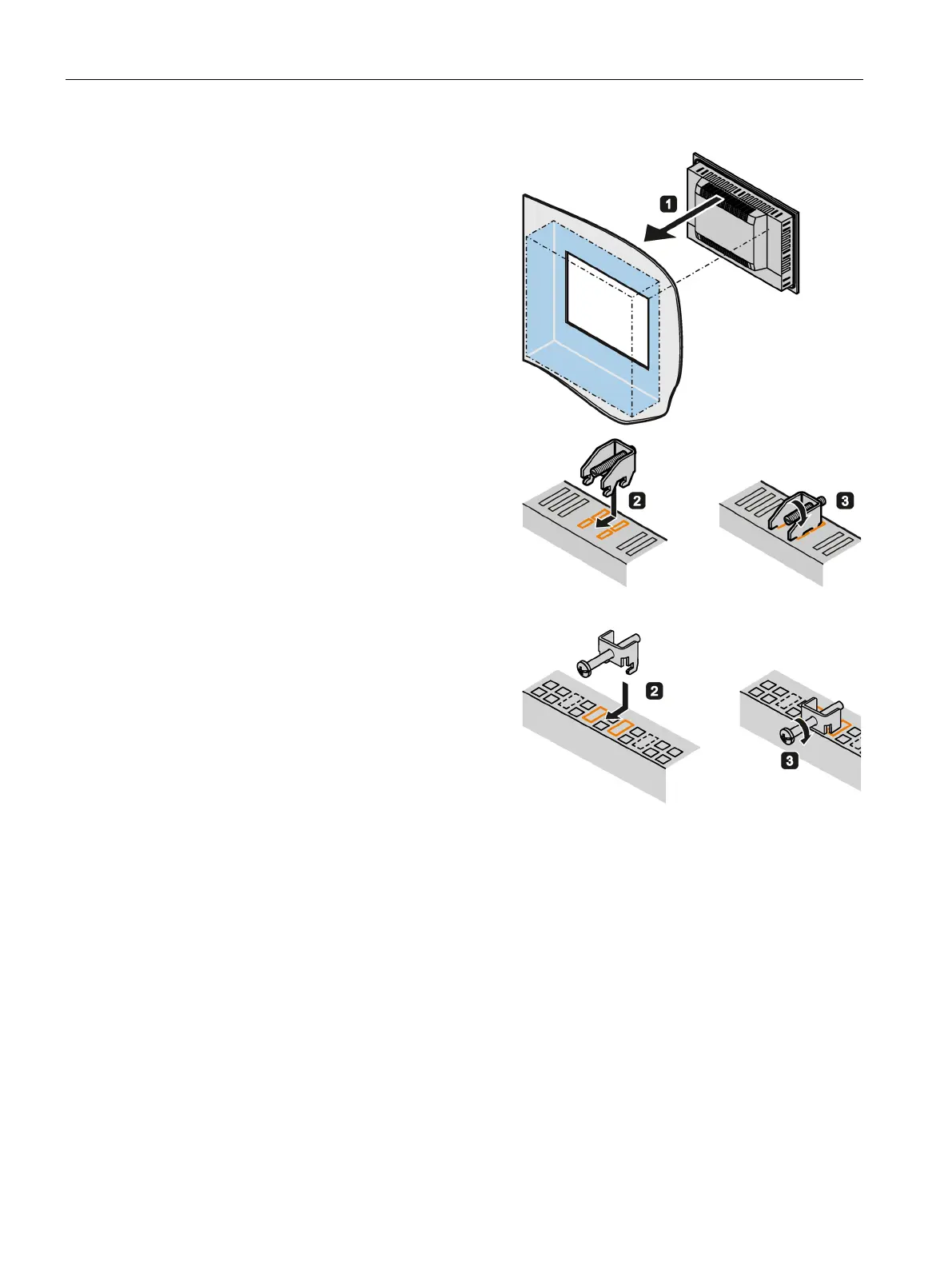

Working from the front, insert the device
into the mounting cut
-out. Secure the
device to prevent it from falling out.
Mounting clips for devices with 12" display
mounting clip into the cutout
provided on the device. Make sure it is
in the correct position, see the section
"
Mounting clips or mounting brackets,
-compliant installation
Tighten the threaded pin to secure the
mounting clip. The maximum torque
when tightening the threaded pins of the
mounting clips is 0.5 Nm.
Repeat steps 2 and 3 for all mounting
clips.
heck the fit of the mounting seal.
Mounting clips for devices with 15", 19" or 22"
display
