Siemens SIMATIC IPC477D User Manual

Technical information
8.5 Hardware descriptions
SIMATIC IPC477D, IPC477D PRO
240 Operating Instructions, 11/2016, A5E31347228-AF
8.5.5
CP 1616 onboard communications processor
8.5.5.1
Introduction
Typical Communication Partners
CP 1616 onboard as an IO controller

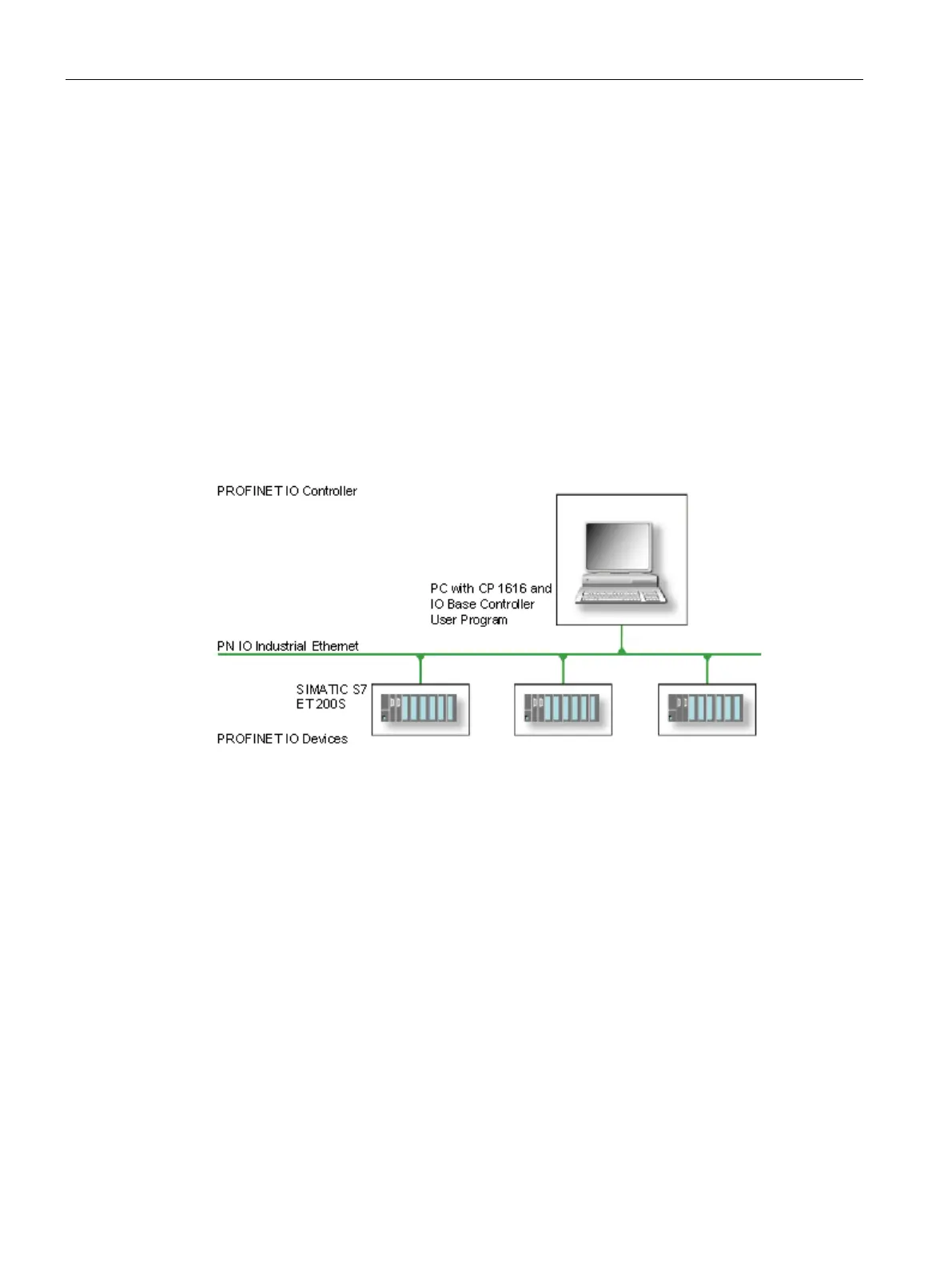

The following diagram shows a typical application: CP 1616 onboard as PROFINET IO
controller on the IO controller layer.
The IO base controller user program runs on the PC. This program accesses the functions of
the IO base user program interface.
Data traffic is routed via the communication processor to several SIMATIC S7 PROFINET IO
devices, ET 200S over Industrial Ethernet.
