1.7 System components for PRO devices
SIMATIC IPC477D, IPC477D PRO
Operating Instructions, 11/2016, A5E31347228-AF
37
Round tube adapter

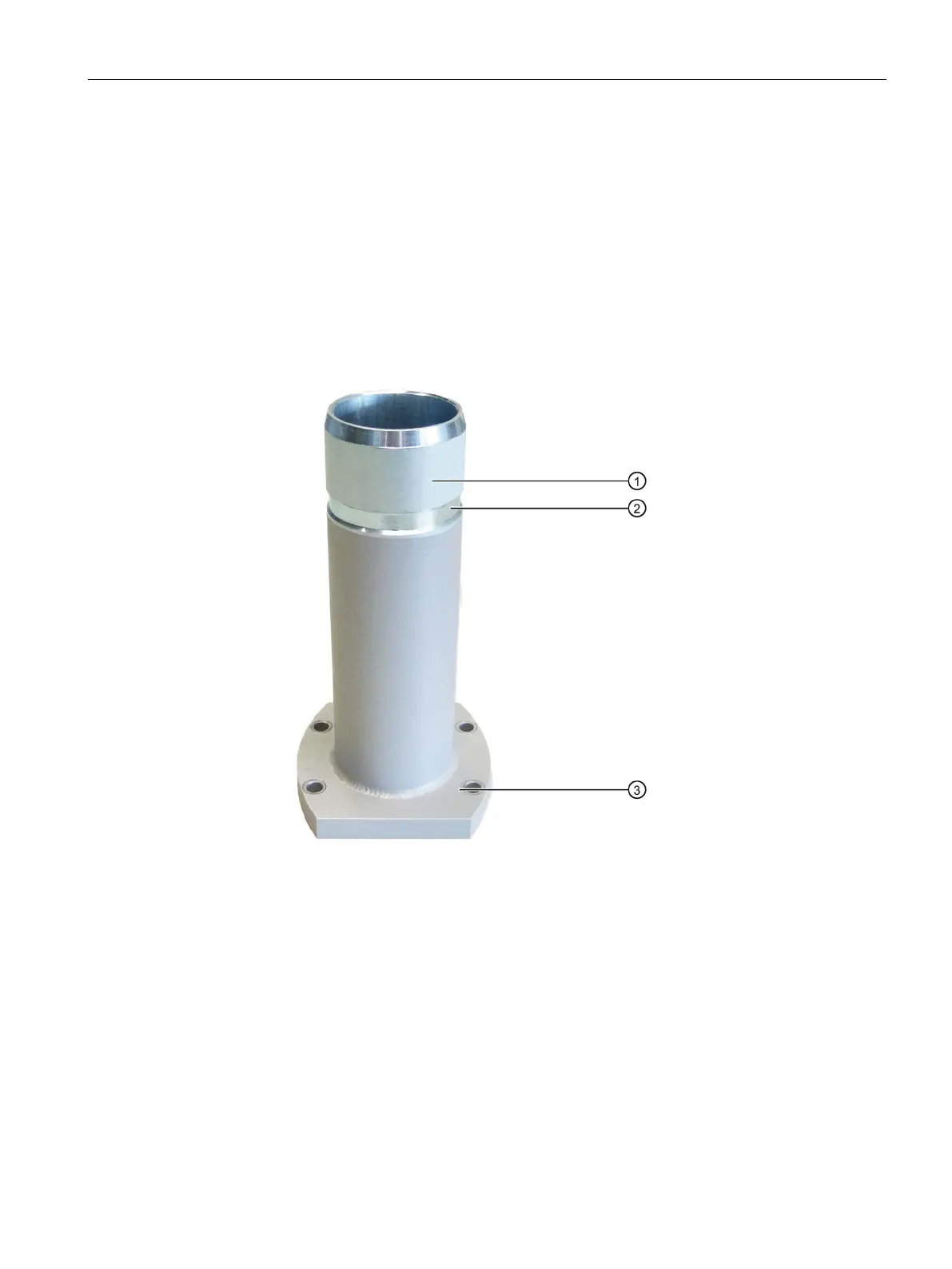

Round tube adapter for device version "prepared for support arm and extension elements"
An optional round tube adapter that is not included in the scope of delivery is available for
the device version "prepared for support arm and extension elements".
The flange mount converts the flange mount connection into a mechanically compatible
interface to the base adapter. The flange of the flange mount has the same drilling pattern as
the base adapter. This means you can use all couplings of the support arm or stand systems
with mechanical interface for the base adapter.
Ring groove for fastening on PRO device with setscrews
Mechanical interface to support arm
Article number of the flange mount: 6AV7674-1KF00-0AA0
