Overview
1.3 Design of the PRO device
SIMATIC IPC477D, IPC477D PRO
Operating Instructions, 11/2016, A5E31347228-AF
31

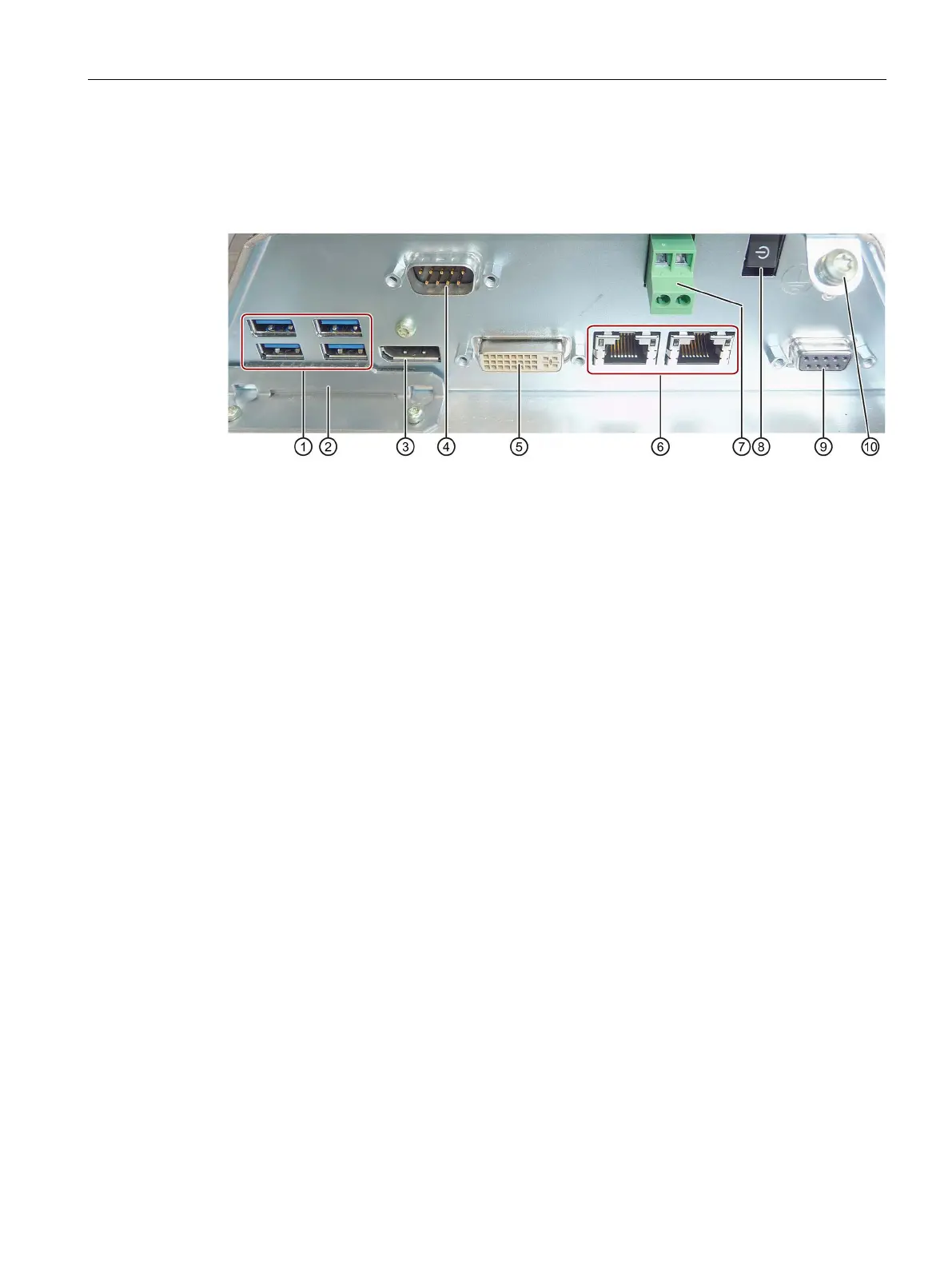

Interfaces and operator controls for PRO device
The figure of the interfaces applies to the PRO device. The assignment of the interfaces is
shown inside the terminal compartment cover.
USB 3.0 high speed/high current
Slot for external CFast card
Serial interface, 9-pin D-sub connector
DVI-I port DVI connector for CRT or LCD monitor
(VGA via DVI-VGA adapter) with DVI interface
RJ45 Ethernet connection 1 and 2 for 10/100/1000 Mbps
Connection terminal
Connection terminal inserted in delivered condition
PROFIBUS-DP/MPI interface
PROFIBUS DP/MPI interface RS 485, isolated,
9-pin D-sub socket (available for 19" and 22" devices)
Protective conductor connection
