Siemens SIMATIC IPC477D User Manual

Mounting and connecting the device
3.2 Installing the built-in unit
SIMATIC IPC477D, IPC477D PRO
66 Operating Instructions, 11/2016, A5E31347228-AF

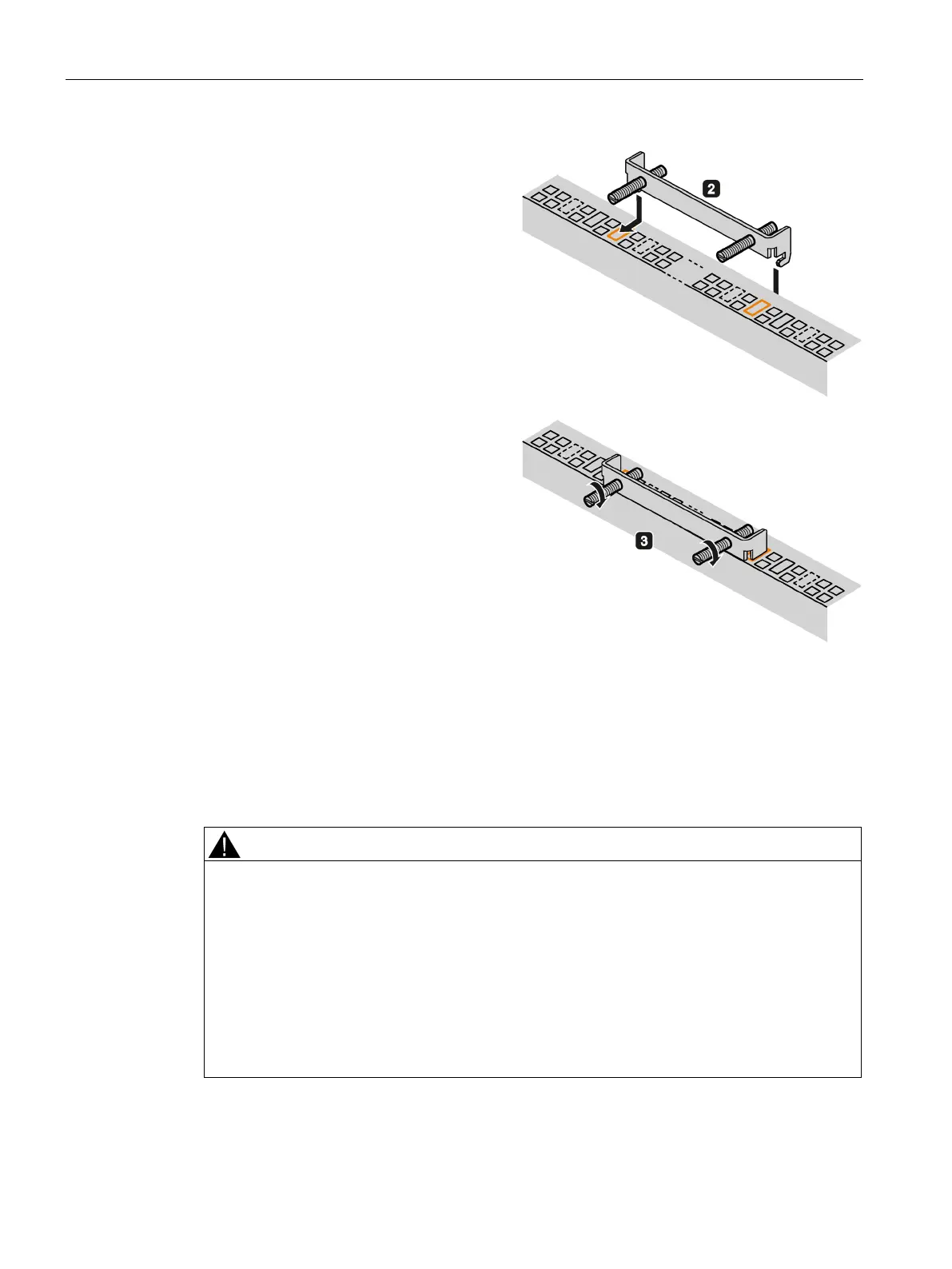

2.
Insert the mounting clamp into the r
e-
cesses on the device. Make sure it is in
the correct position, see the section
"
Mounting clips or mounting brackets,
position for IP65
-compliant installation
(Page
61)".
3.
Secure the mounting bracket by tighte
n-
ing the threaded pins. The maximum
permissible torque is 0.5
Nm.
4.
Repeat steps 2 and 3 until al
l mounting
brackets are attached.
5.
Check the fit of the mounting seal.
IP65 degree of protection
The installer of the plant is responsible for proper installation of the device.
WARNING
Risk of electric shock
The degree of protection cannot be guaranteed if the device is not correctly installed.
Moisture or water can penetrate and cause electric shock or plant damage.
The IP65 degree of protection is ensured for the front of the device only if you observe the
following:
• Installation with mounting clamps
• The circumferential seal is properly attached to a correctly sized cutout.
• Follow the instructions when measuring the dimensions as shown in the section
"Preparing the mounting cutout (Page 53)".
