Mounting and connecting the device
3.4 Connecting the device
SIMATIC IPC477D, IPC477D PRO
Operating Instructions, 11/2016, A5E31347228-AF
87

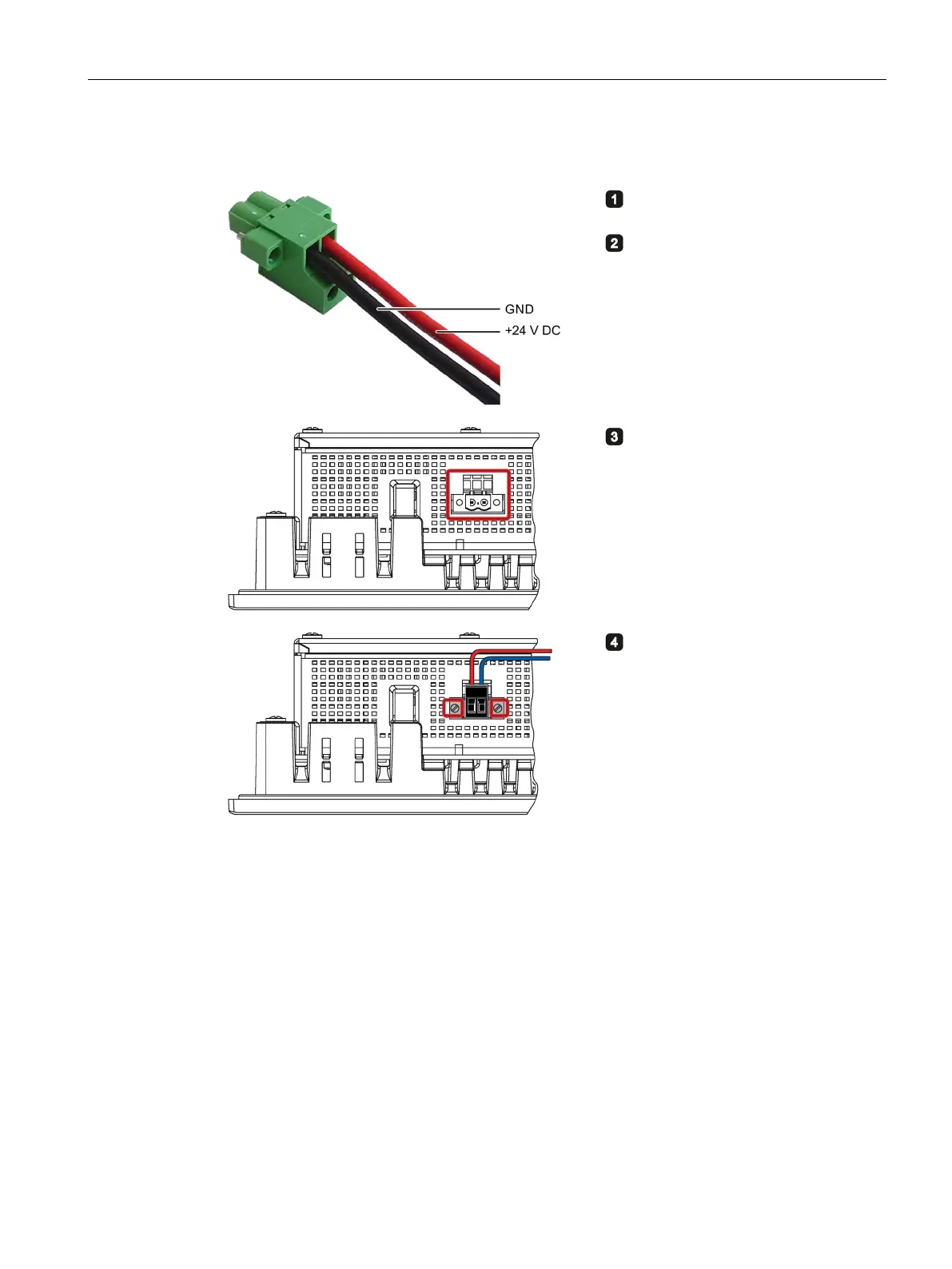

Switch off the 24 V DC power
Connect the wires of the power
supply.
Connect the connection terminal
at the marked position.
Secure the connection terminal
with the marked screws.
