Expanding the device and assigning device parameters
6.1 Opening the device
SIMATIC IPC477D, IPC477D PRO
134 Operating Instructions, 11/2016, A5E31347228-AF
Opening device without expansions
For devices without expansions, only the rear panel of the device is removed.
● The device is disconnected from the power supply.
● All cables are removed from the device.
● The device is removed.
● T10 screwdriver

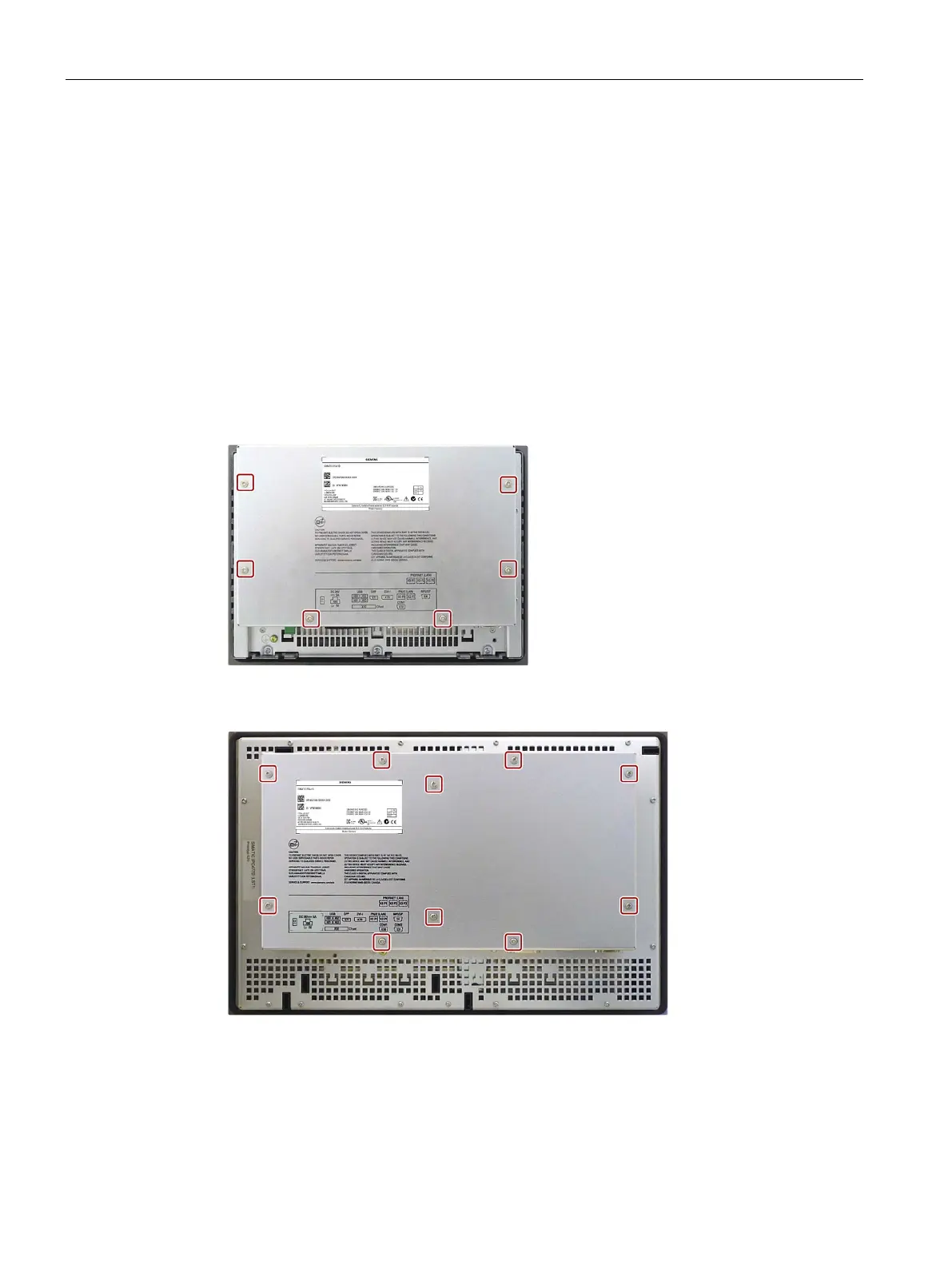

1. Remove the marked screws.
Device with 12" display
Device with 15", 19" or 22" display
Position and number of the fastening screws are the same for the devices with 15", 19"
and 22" display.
2. Remove the rear panel of the device.
