Expanding the device and assigning device parameters
6.3 Removing a PCIe card (built-in units with PCIe card without DVD drive)
SIMATIC IPC477D, IPC477D PRO
Operating Instructions, 11/2016, A5E31347228-AF
141
3.

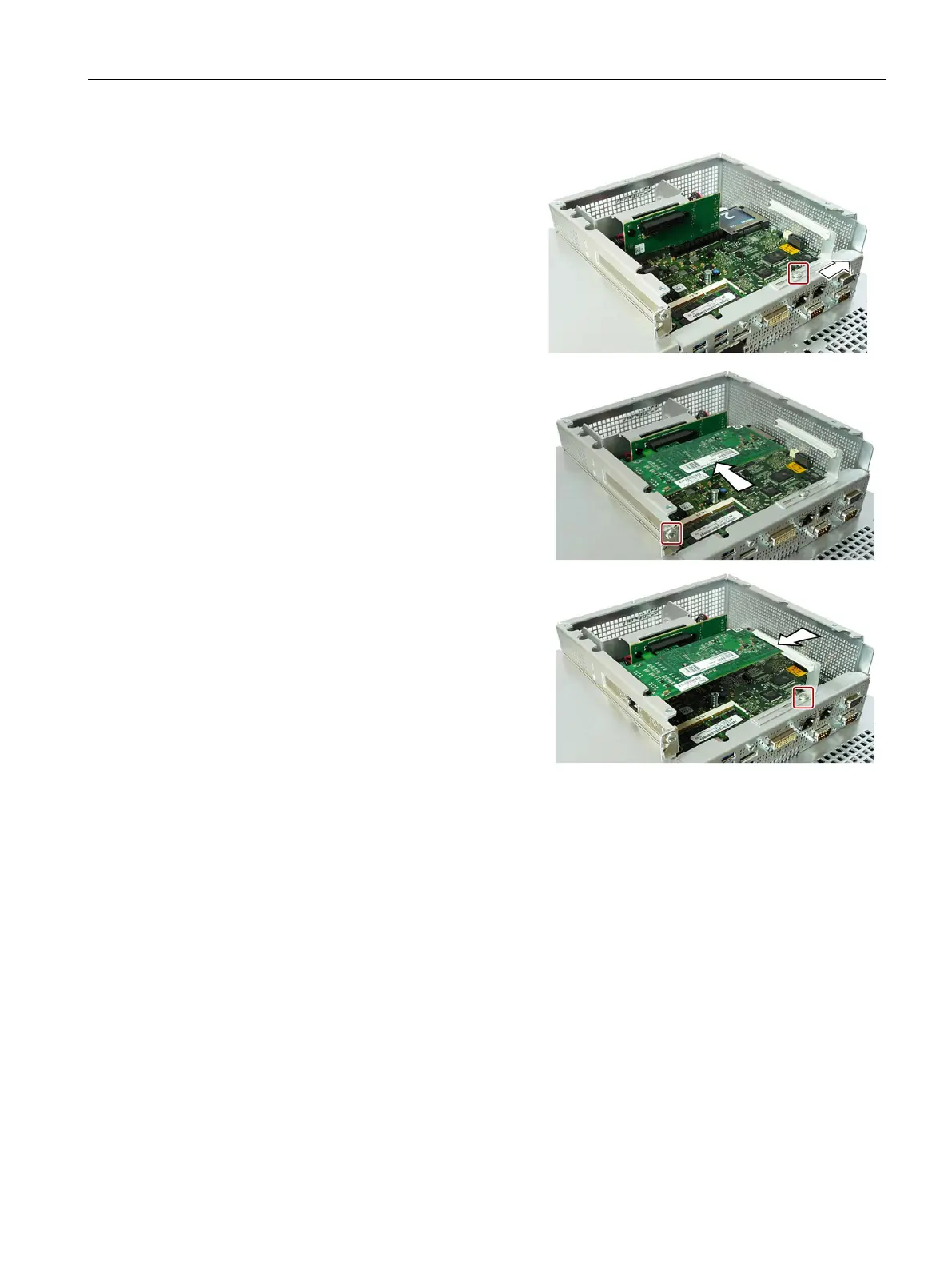

Loosen the marked screws of the PCIe
card holder and push the PCIe card
holder to the side.
3.
Insert the PCIe card in the direction of the
arrow and secure this with the marked
screw.
4.
Push the PCIe card holder in the dire
c-
tion of the PCIe card and secure this with
the marked screw.
5.
Close the device.
Removal
Follow the steps for installation in reverse order.
