Technical information

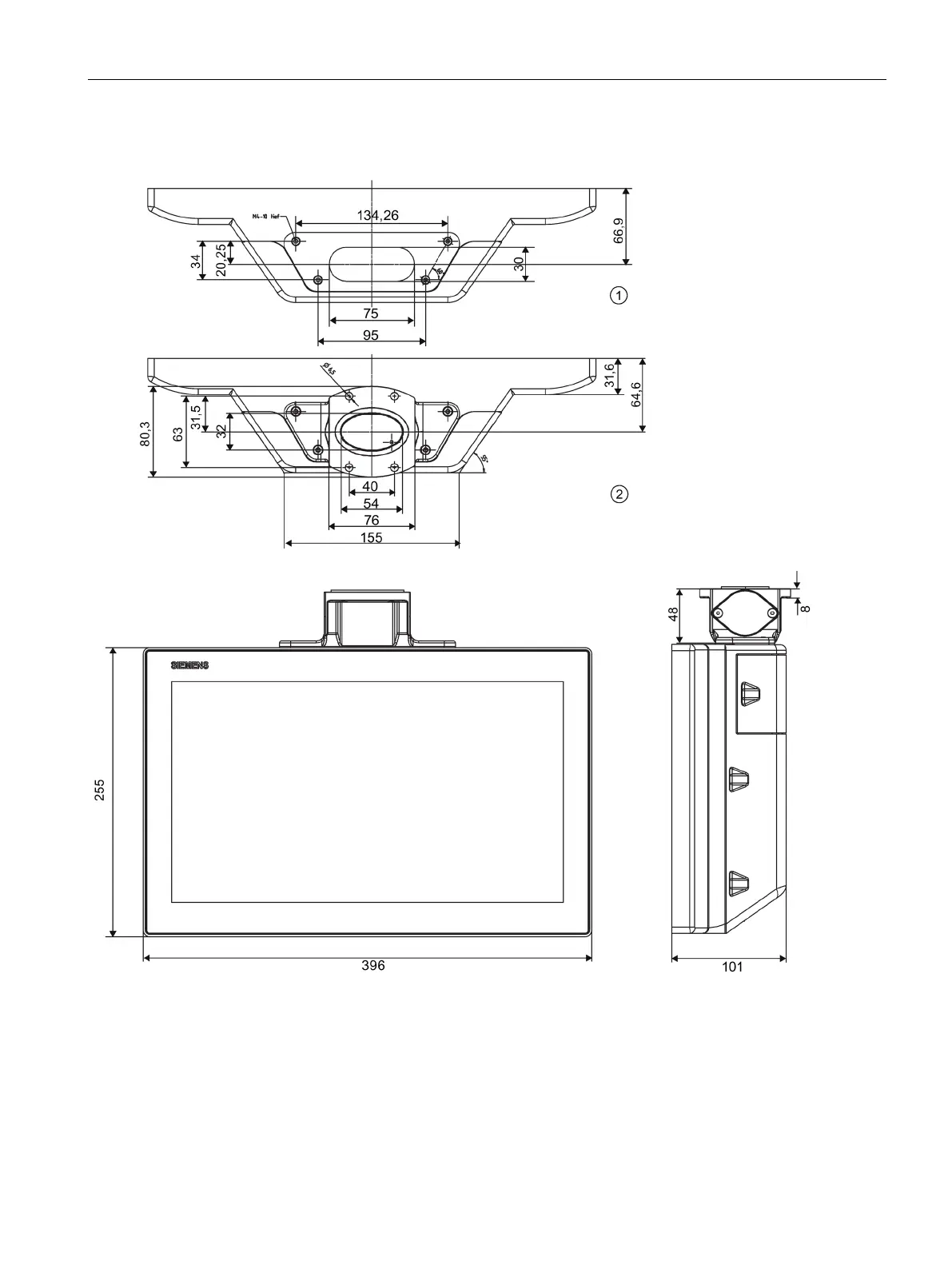

8.3 Dimension drawings
SIMATIC IPC477D, IPC477D PRO
Operating Instructions, 11/2016, A5E31347228-AF
193
Prepared for support arm
①
Without base adapter
②
With base adapter
All dimensions in mm
