Technical information

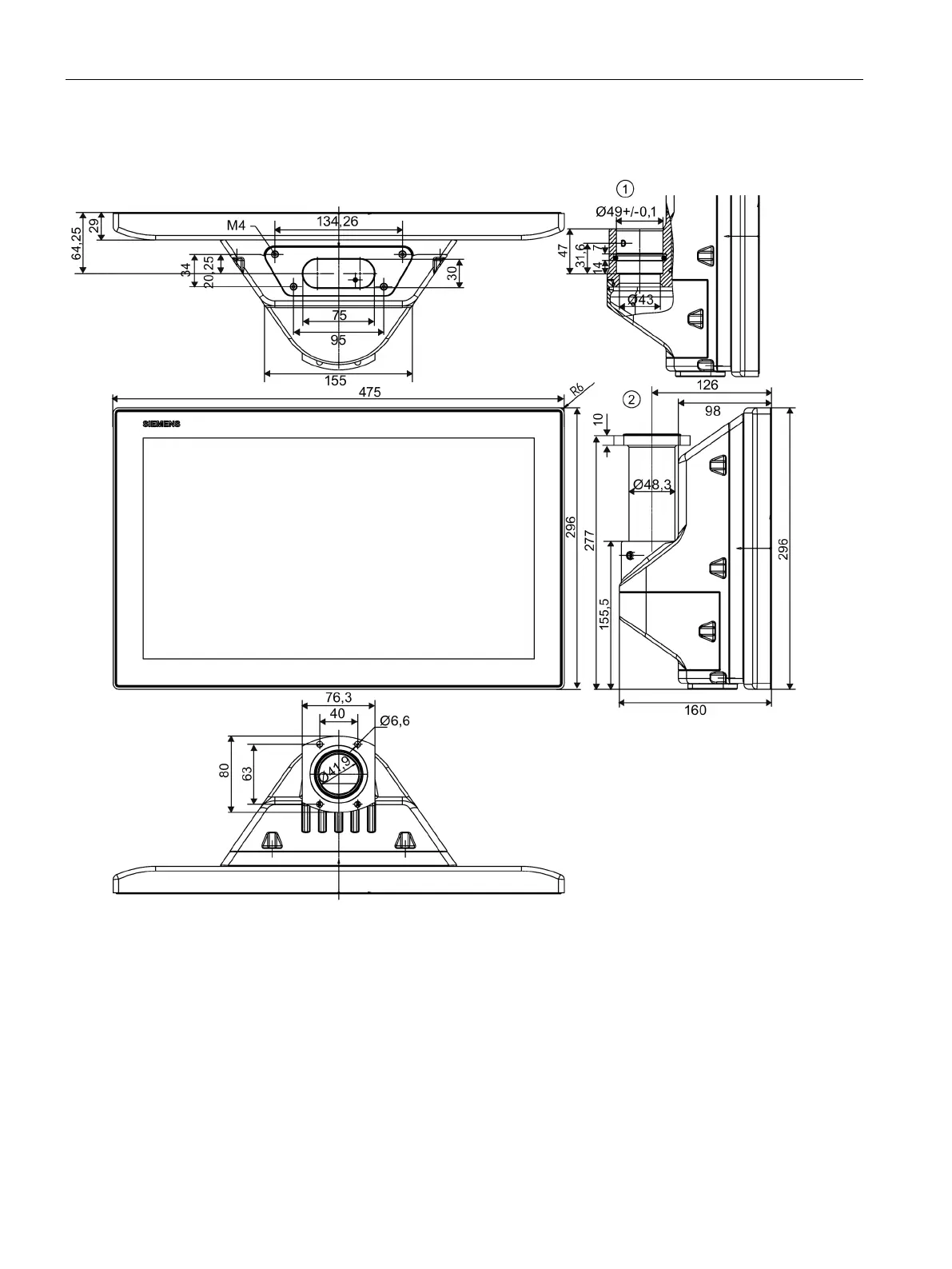

8.3 Dimension drawings
SIMATIC IPC477D, IPC477D PRO
198 Operating Instructions, 11/2016, A5E31347228-AF
Prepared for support arm and extension elements
①
Without flange mount
②
With flange mount
All dimensions in mm
