Overview
1.3 Design of the PRO device
SIMATIC IPC477D, IPC477D PRO
Operating Instructions, 11/2016, A5E31347228-AF
29

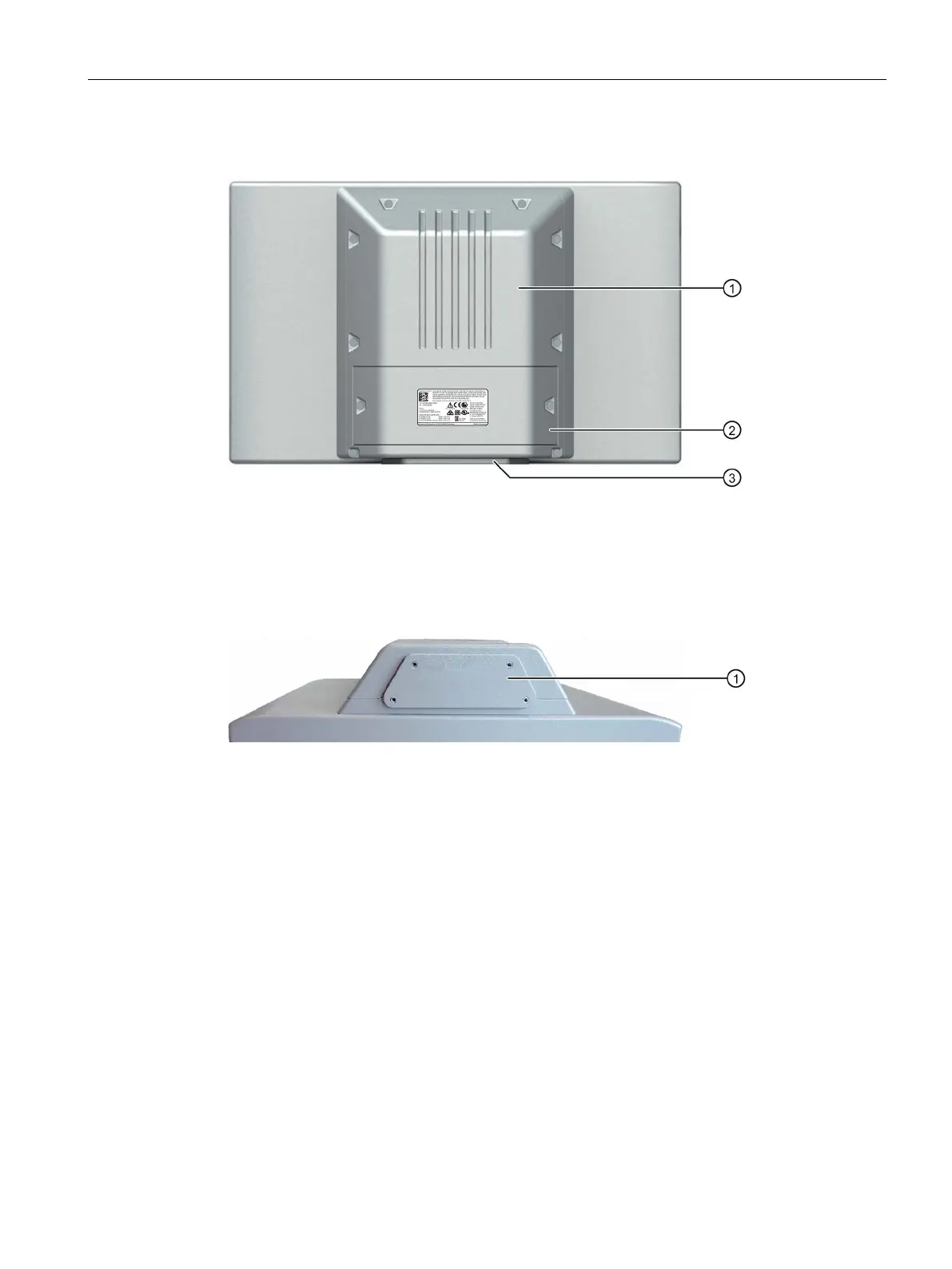

Rear view - device version "prepared for stand/extension elements"
①
Backplane cover
②
Terminal compartment cover
③
Mechanical interface for mounting/base adapter
Bottom view - device version "prepared for stand/extension elements"
①
Cover plate
