Mounting and connecting the device
3.1 Preparing for mounting
SIMATIC IPC477D, IPC477D PRO
56 Operating Instructions, 11/2016, A5E31347228-AF

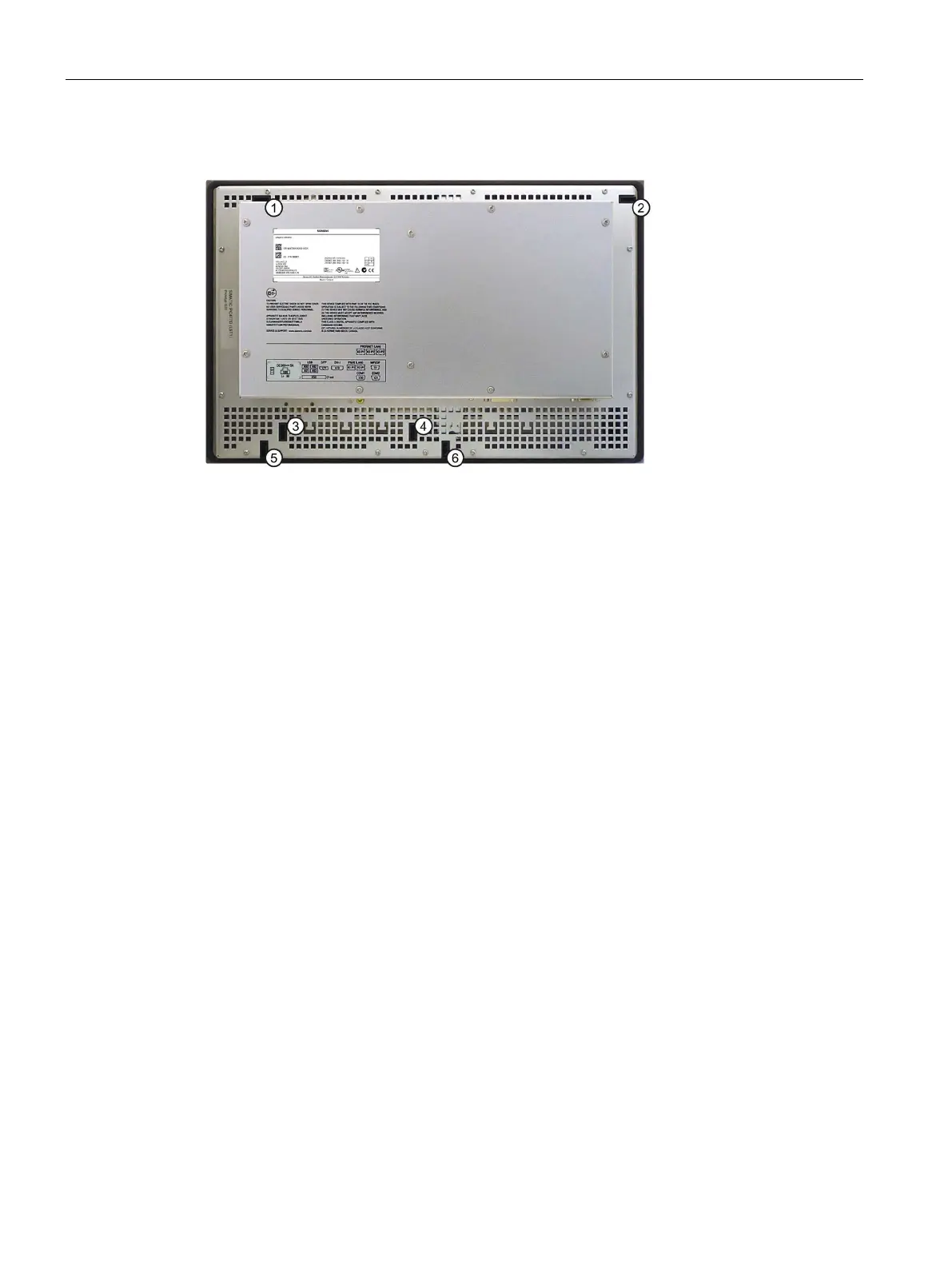

The following figure shows the positions of the device openings for each labeling strip.
Guide for labeling strips F1, F3 ... F15
Guide for labeling strips F2, F4 ... F16
Guide for labeling strips F17 ... F22
Guide for labeling strips F23 ... F26
Guide for labeling strips F27 ... F31
Guide for labeling strips F32 ... F36
The labeling strips protrude approximately 3 cm out of the slot. The template dimensions for
the labeling strips are designed so that the labeling is correctly placed for the function keys.
It is not necessary to secure the labeling strip.
When mounting the HMI device, make sure that the labeling strips do not get jammed
between the mounting cutout and the HMI device.
