Mounting and connecting the device
3.1 Preparing for mounting
SIMATIC IPC477D, IPC477D PRO
58 Operating Instructions, 11/2016, A5E31347228-AF

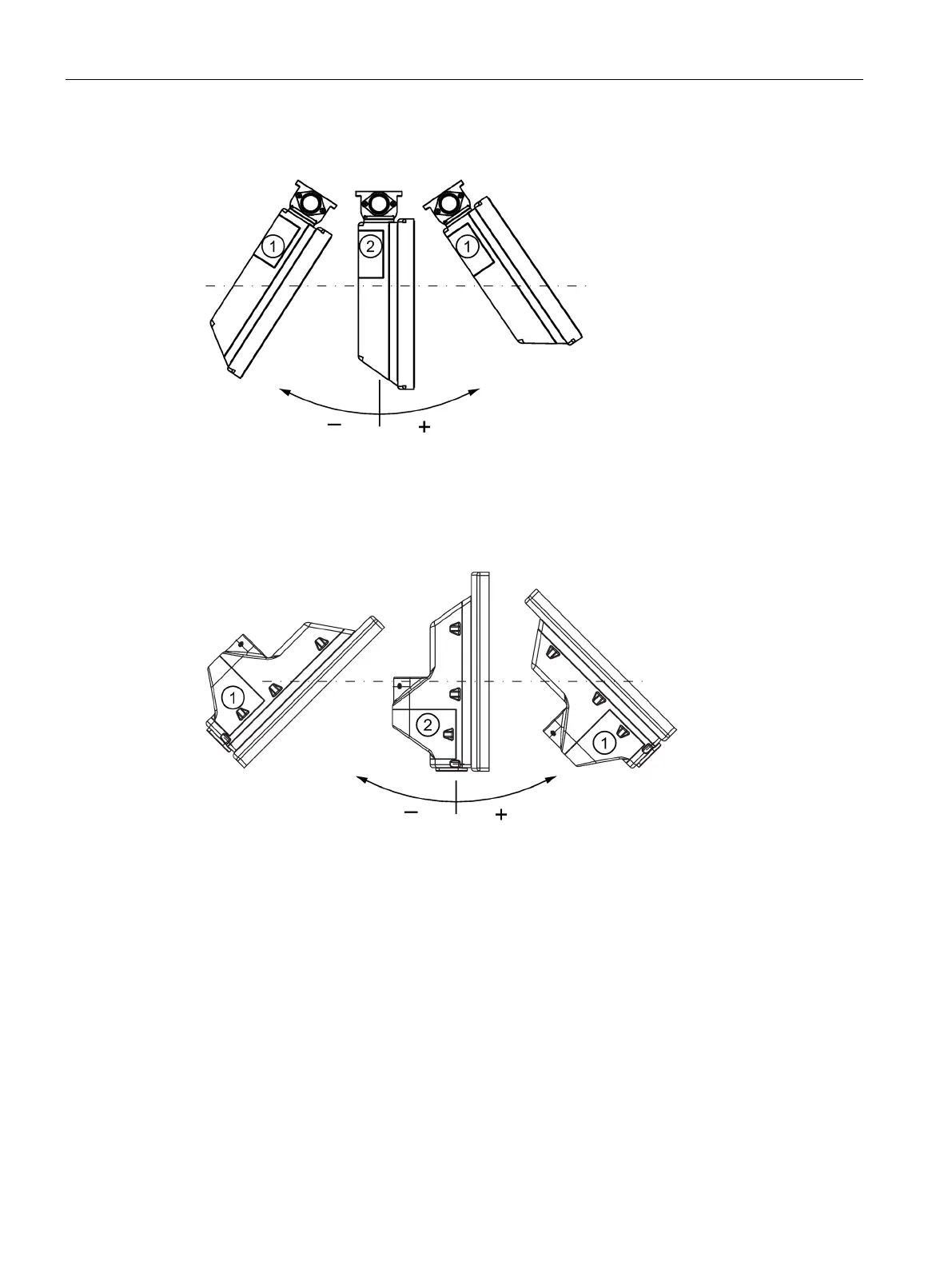

Device version "prepared for support arm without extension elements (flange on top)"
Mounting position
①
Inclined
≤ 45°
②
Vertical
0°
Device version "prepared for support arm and extension elements (round tube)"
Mounting position
①
Inclined
≤ 45°
②
Vertical
0°
