Mounting and connecting the device
3.2 Installing the built-in unit
SIMATIC IPC477D, IPC477D PRO
62 Operating Instructions, 11/2016, A5E31347228-AF

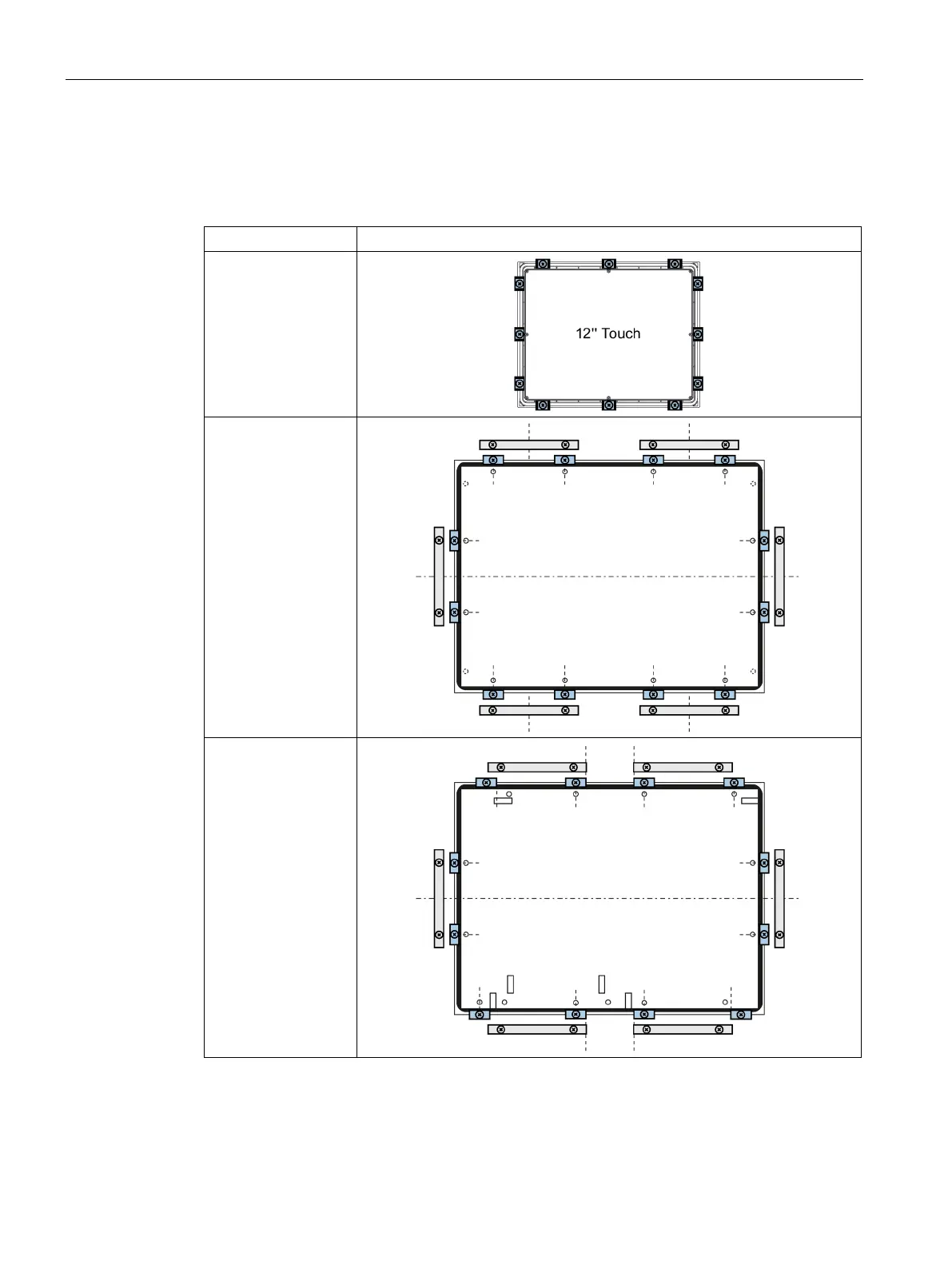

Positions of the mounting clips or mounting brackets for IP65
To achieve IP65 degree of protection for the device, the mounting clips or mounting brackets
must be installed at the positions shown below.
Touch screen device
with:
• 12" display
(mounting clips
only)
Touch screen device
with:
• 15" display
• 19" display
• 22" display
Touch/key device
with:
• 15" display
