Mounting and connecting the device

3.3 Mounting the PRO device

SIMATIC IPC477D, IPC477D PRO

Operating Instructions, 11/2016, A5E31347228-AF

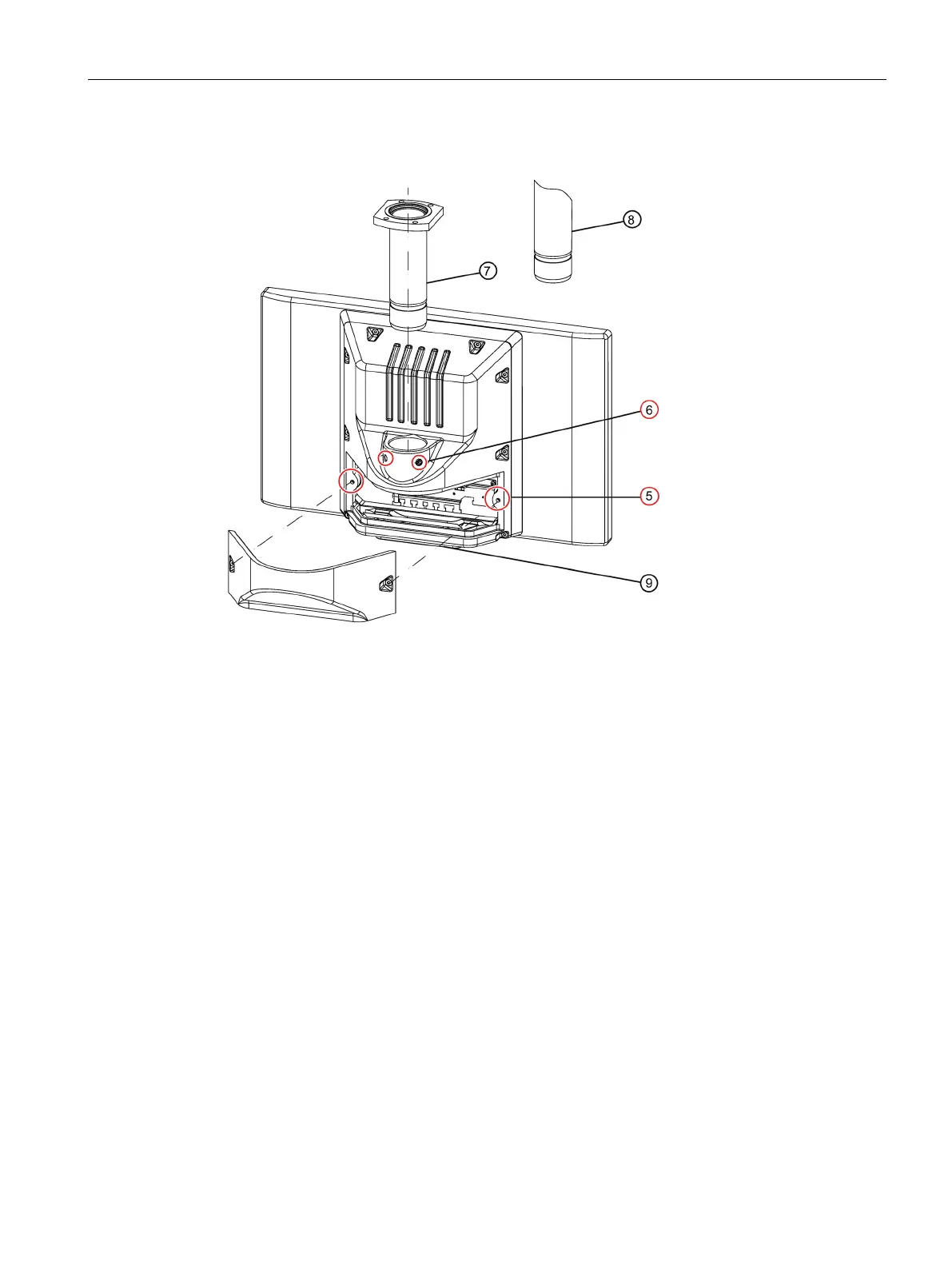

Prepared for support arm and extension elements (round tube)

⑤

Screws for connection compartment cover

⑥

Setscrews

⑦

Flange mount (not included in the scope of delivery; see System components for PRO devices

(Page 35))

⑧

Third-party round tube (∅ 48 mm)

⑨

Cover plate (Included in the scope of delivery; see Accessory kit (Page 32))
