Mounting and connecting the device
3.4 Connecting the device
SIMATIC IPC477D, IPC477D PRO
Operating Instructions, 11/2016, A5E31347228-AF
81
Procedure

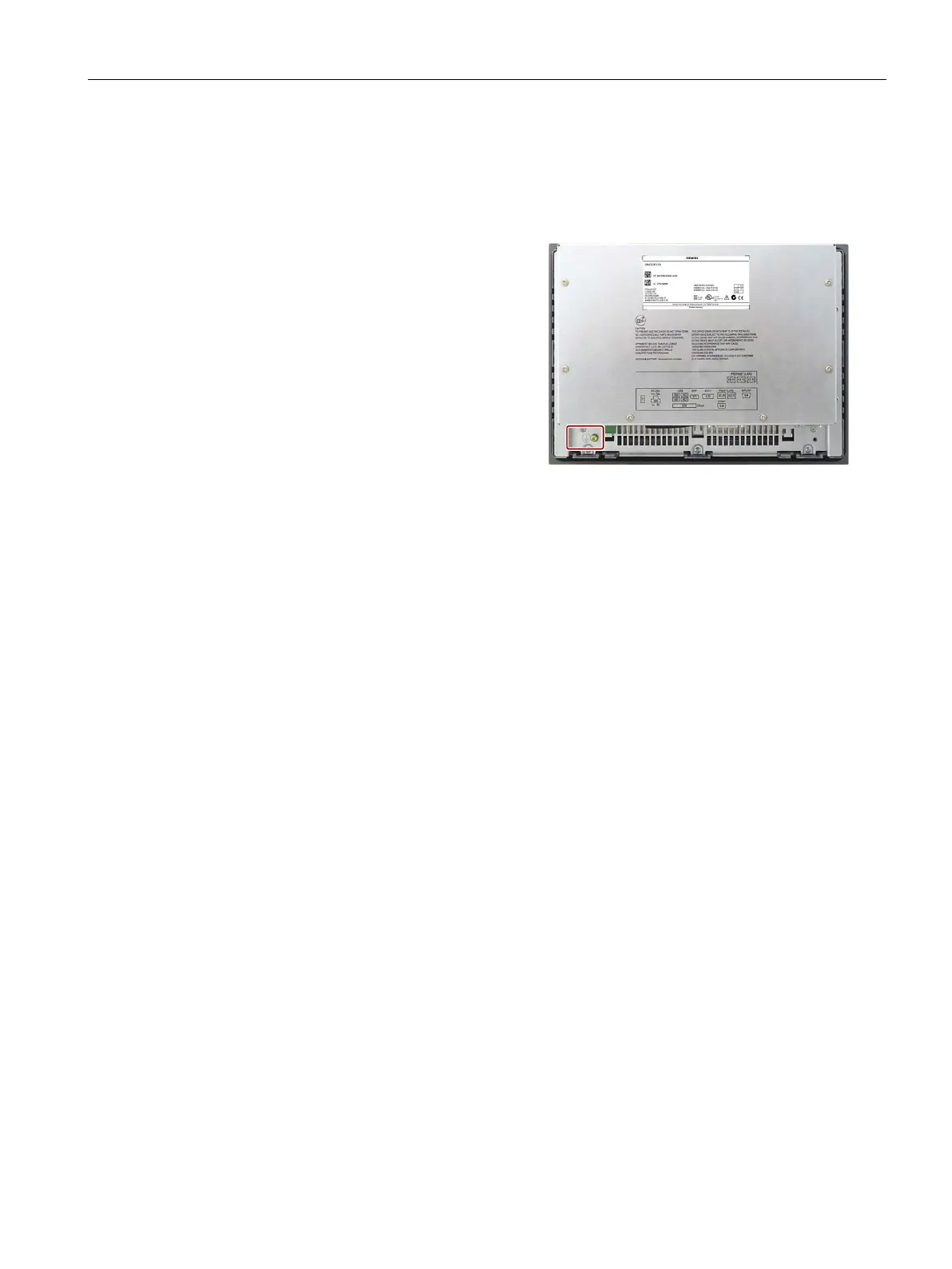

Connection of the protective conductor is described using the example of the 12" display.
1.
Clamp the cable lug onto the protective conductor.
2.
Connect the cable lug to the screw at
the
designated protective conductor conne
c-
tion.
3.
Connect the protective conductor to the protective conductor connection of the control
cabinet in which the device is installed.
