Dimension drawings
14.3 Dimensional drawings for the installation of expansion modules
SIMATIC Rack PC 547B
Operating Instructions, 12/2007, A5E01127519-02
101
14.3 Dimensional drawings for the installation of expansion modules

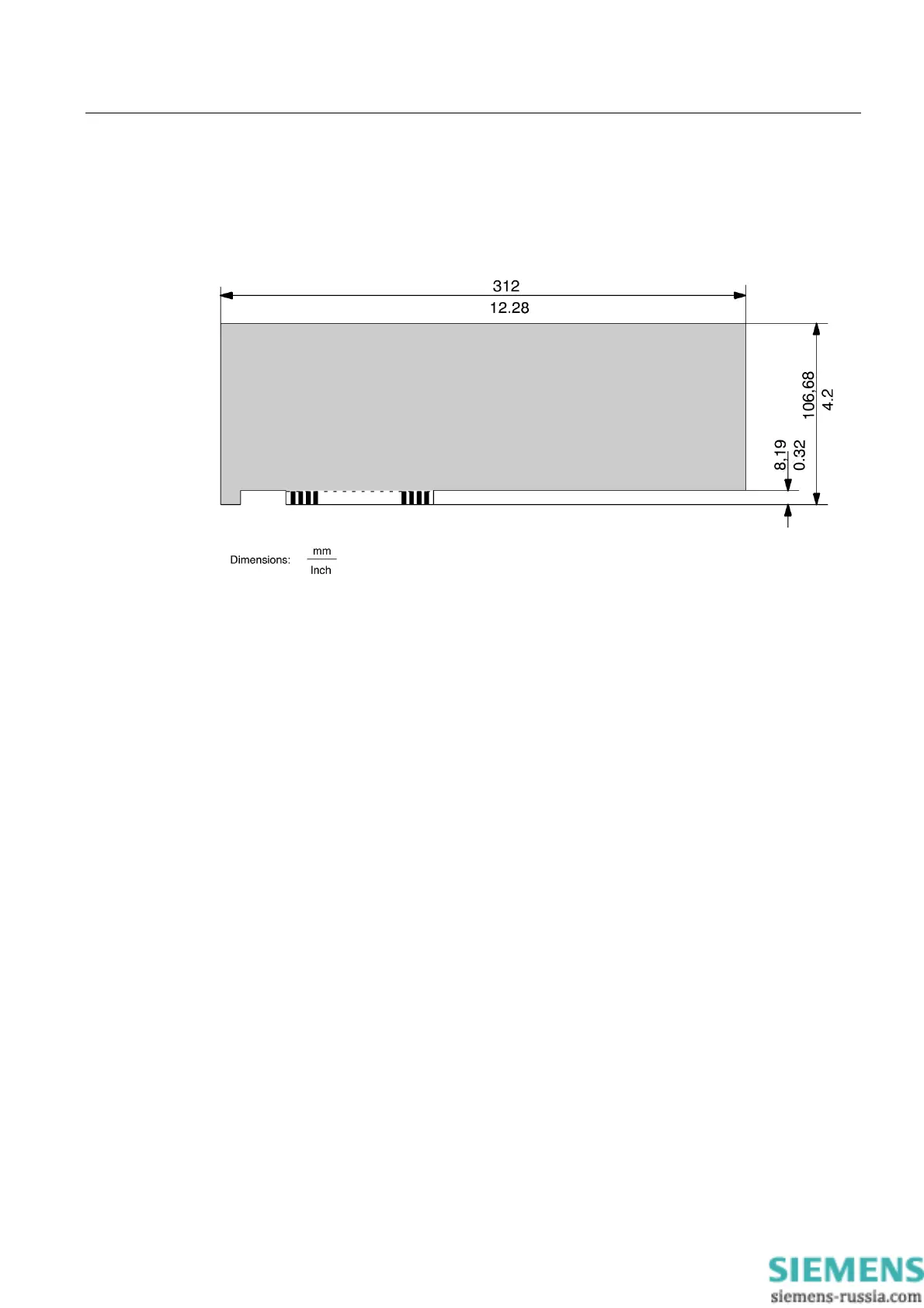

Figure 14-3 Long PCI module, PCIe module
