6.3 Equipotential bonding
A low-impedance ground connection improves the discharge of interference generated by
external power cables, signal cables or cables for I/O modules to ground.

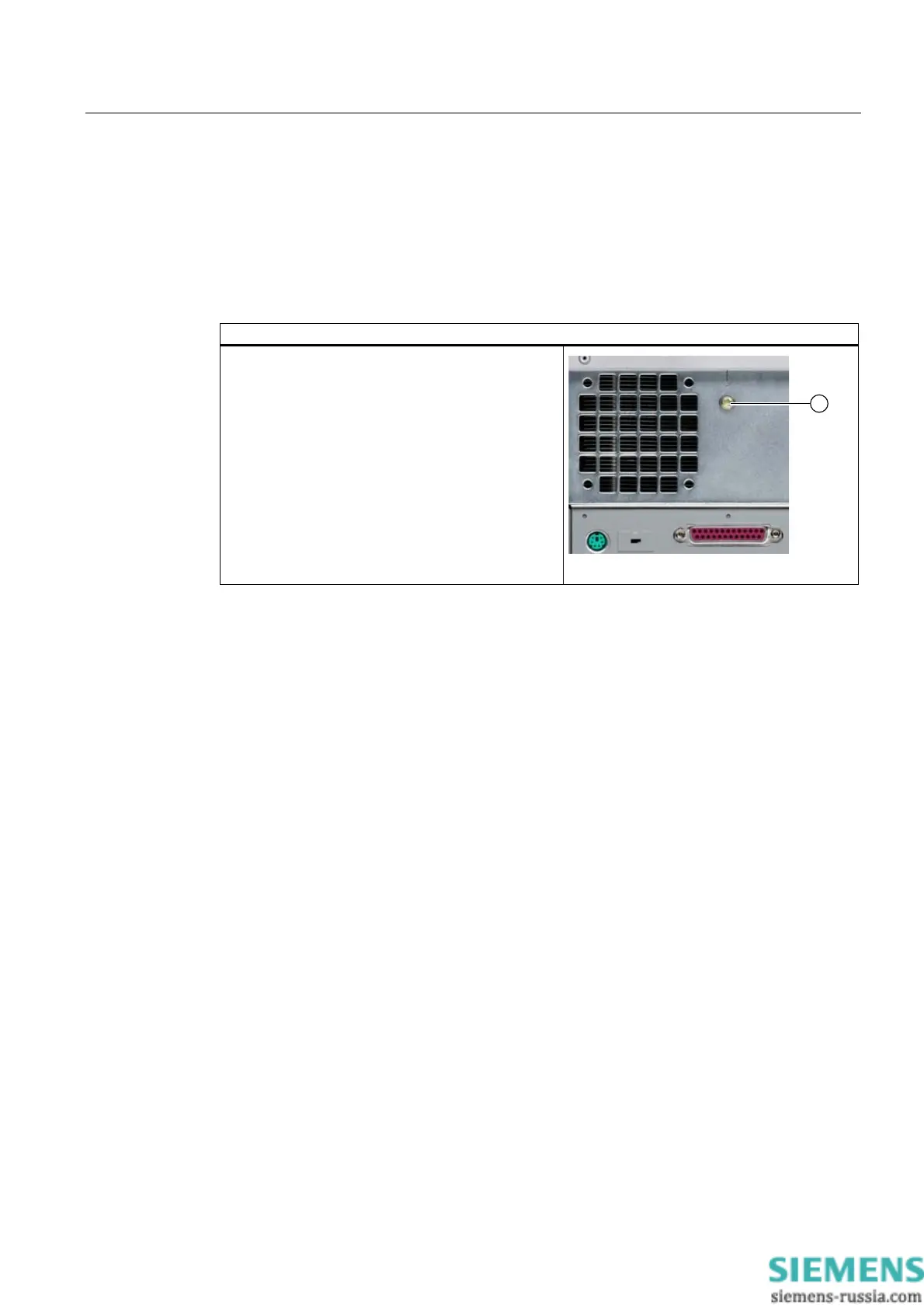

Equipotential bonding terminal
The equipotential bonding terminal (1) on the device
(large surface, large-area contact) must be
interconnected with the central grounding busbar of
the cabinet or plant in which the PC is to be installed.
The minimum conductor cross-section may not be
less than 5 mm
2
.
