10.4 Installing drives
SIMATIC Rack PC 547B
60 Operating Instructions, 12/2007, A5E01127519-02
10.4 Installing drives
10.4.1 Options of installing disk drives
The driver bay module consists of a horizontal and vertical driver carrier. A DVD-ROM, DVD
burner, floppy drive or removable cartridge can be installed in the drive bay module.

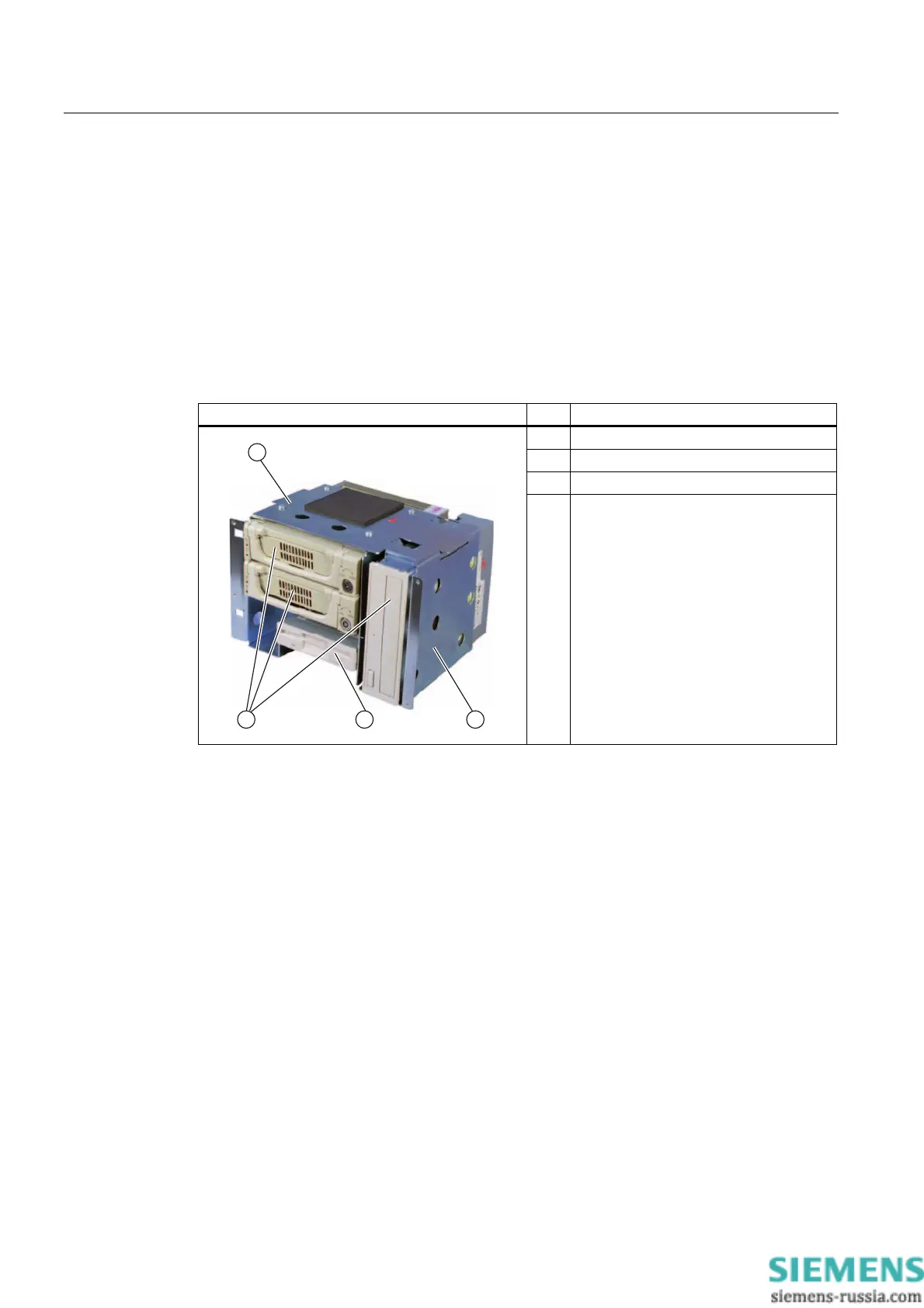

Drive bay module Item Description
(1) Horizontal drive bay
(2) Vertical drive bay
(3) 3.5" floppy desk drive (FD)
(4) 5.25" mounting bays for DVD/CD or hard
drives in removable cartridges
