Expansions and configuration
10.1 Opening the device
SIMATIC Rack PC 547B
Operating Instructions, 12/2007, A5E01127519-02
57

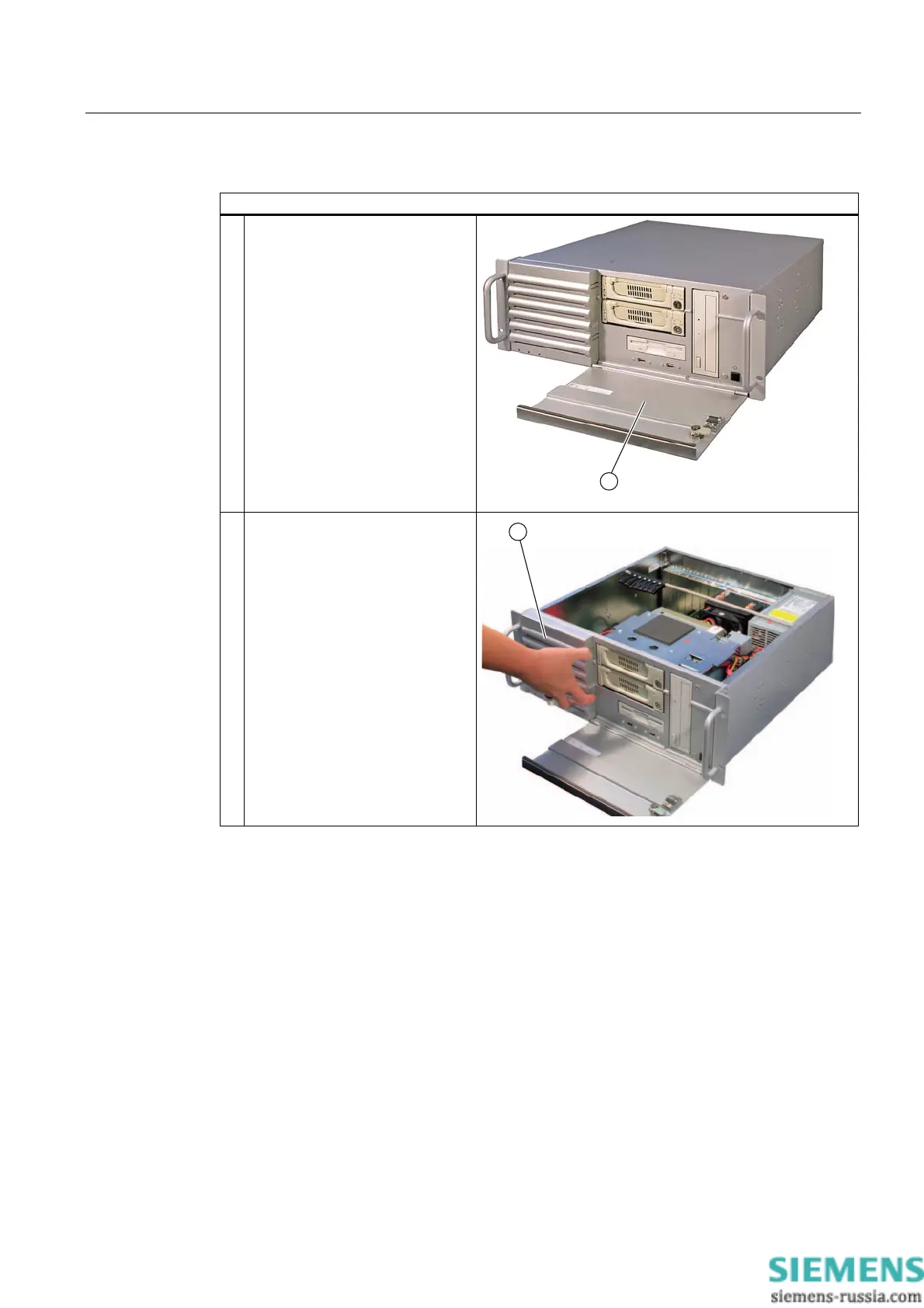

Steps for opening the device front
1 Tilt the front door (1) forward.

2 Remove the fan cover (2).

