Antennas
6.2 SIMATIC RF615A
SIMATIC RF600
214 System Manual, 11/2018, J31069-D0171-U001-A21-7618

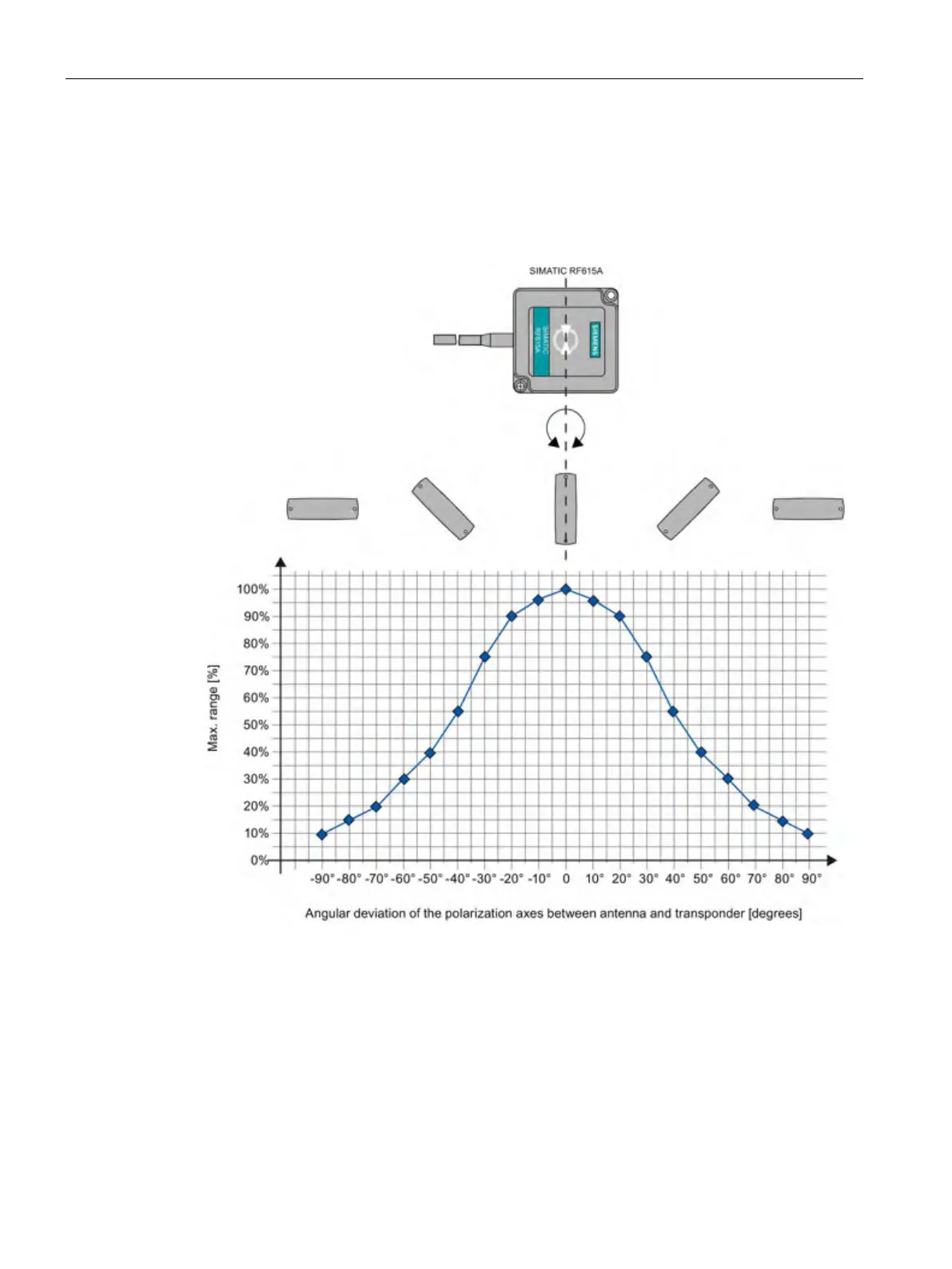

Angle deviation diagram for alignment
The following diagram shows the dependence of the following factors:
● Alignment angle of transponder to antenna
● Maximum range of antenna
Figure 6-4 Effect on the read/write range depending on the antenna alignment
