Siemens SIMATIC RF600 Series - Dimension Drawing

Transponder
7.5 SIMATIC RF690L Smartlabel
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
367
6GT2810-2AGx0
Design, dimensions and weight
Dimensions (L x W x D)
• ETSI • 88 × 25 × 1.6 mm
• FCC • 75 × 25 × 1.6 mm
Weight
5 g
1)
The EPC memory has a default size of 96 bits. When necessary, the EPC memory size
can be expanded to 480 bits in steps of 16 bits at the cost of the user memory.
2)
The information relates to the maximum read range. You can find more information on
ranges in the section "Minimum distances and maximum ranges (Page 337)".
3)
For more information, refer to the section "Storage and transportation roll goods
(Page 347)"
7.5.5 Dimension drawing

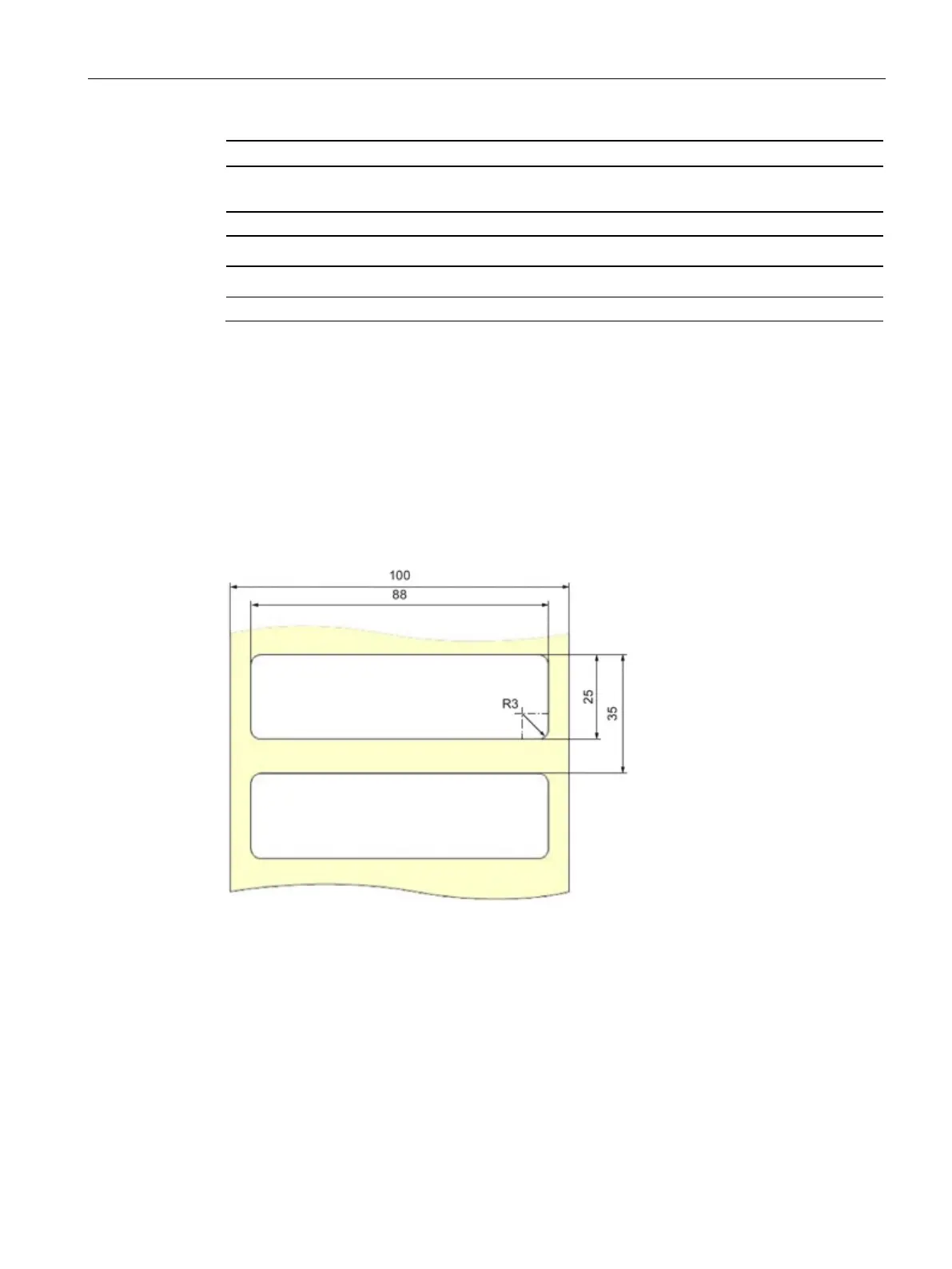

Figure 7-12 Dimension drawing RF690L (ETSI, article number: 6GT2810-2AG00)
