Transponder
7.15 SIMATIC RF682T
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
445
7.15.5 Dimension drawing

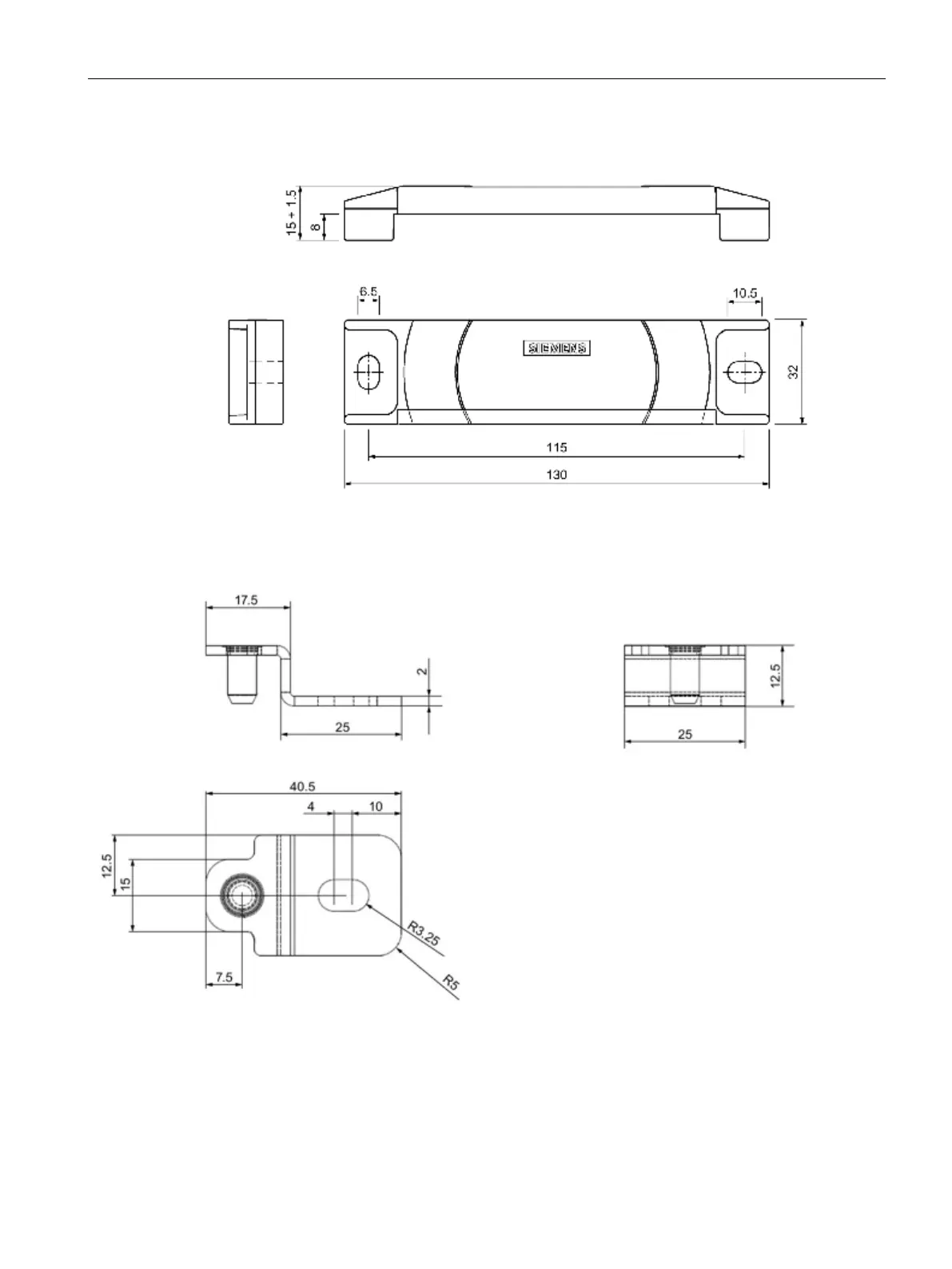

Figure 7-44 Dimension drawing of SIMATIC RF682T
Figure 7-45 Dimension drawing mounting for SIMATIC RF68xT
All dimensions in mm
Tolerances unless indicated otherwise ±0.5 mm.
