Transponder
7.4 SIMATIC RF642L Smartlabel
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
363

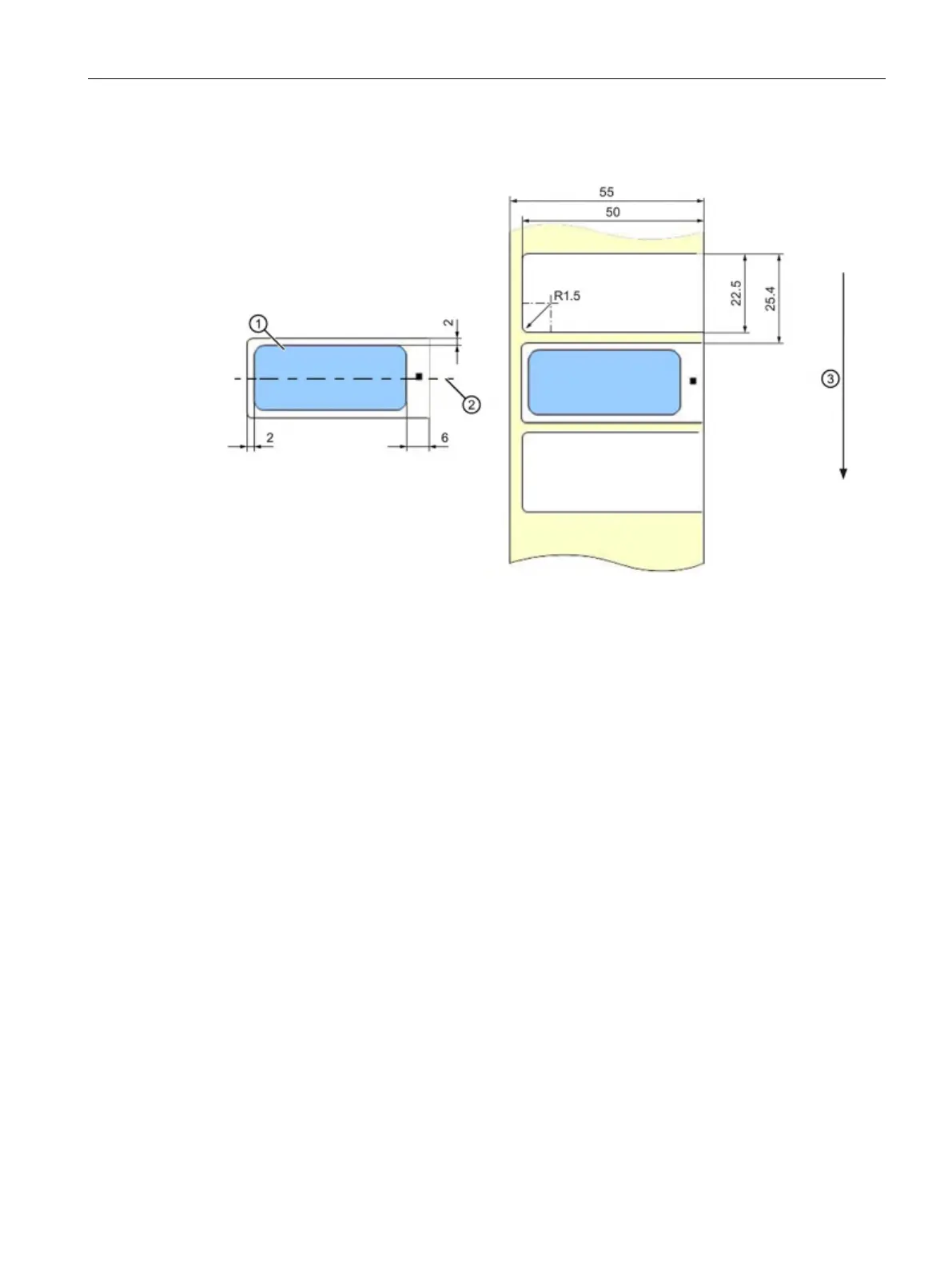

7.4.4 Dimension drawing
â‘
Printable area
â‘¡
Polarization axis
â‘¢
Conveyor direction
Figure 7-11 Dimension drawing RF642L
All dimensions in mm
