SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
463
10.1 Wide-range power supply unit for SIMATIC RF systems
10.1.1 Features
The wide range power supply unit for SIMATIC RF systems is a primary switched device for
supplying power and for use on single phase AC systems. The two DC outputs (sockets) are
connected in parallel and protected by a built-in voltage limiting circuit against overload and
short-circuits.
The device is vacuum-cast and prepared for Safety Class I applications. The EU and UK
versions satisfy the low-voltage directive as well as the current EU standards for CE
conformity. Furthermore, the US version has been UL-certified for the US and Canada.
Table 10- 1 Wide-range power supply unit for SIMATIC RF systems
Area of application
Voltage supply for Siemens Ident de-
Design features
• Mechanically and electrically rug-
ged design
• Short-circuit and no-load stability
• Suitable for frame mounting

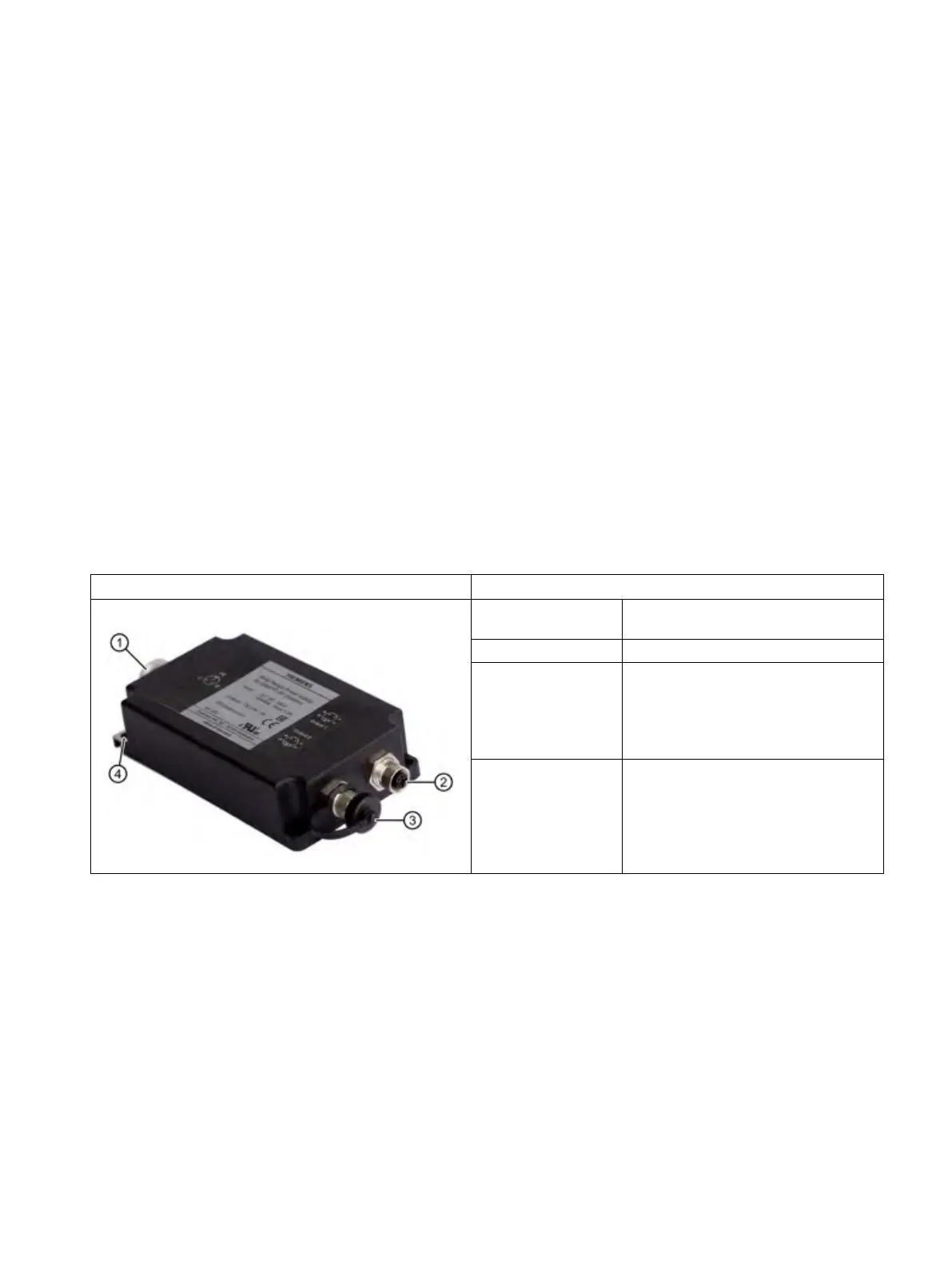

Structure
① Network connector (PE)
② DC output 1
③ DC output 2
Ground connection
10.1.2 Scope of supply
● Wide-range power supply unit for SIMATIC RF systems
● Country-specific power cable (2 m)
● Protective cover for flange outlet
● Operating Instructions
