RF600 system planning

4.3 Antenna configurations

SIMATIC RF600

46 System Manual, 11/2018, J31069-D0171-U001-A21-7618

4.3.4 Specified minimum and maximum spacing of antennas

Specified minimum spacing of antennas

The following diagram shows the specified minimum and maximum spacings for mounting

antennas:

Between the antenna and liquids or metals, a minimum distance of 50 cm should be kept to.

The distance between the antenna and the floor should also be at least 50 cm.

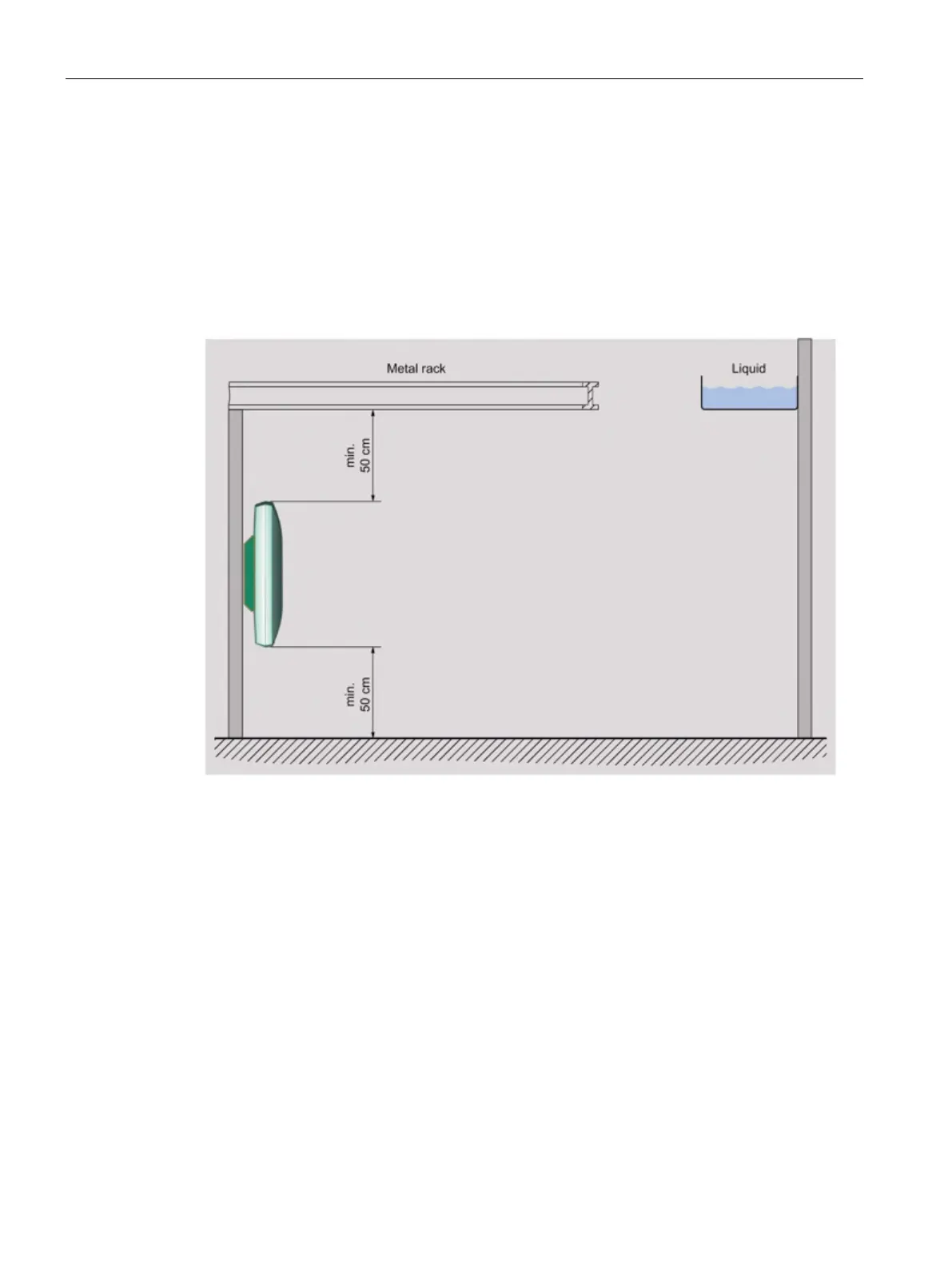

Figure 4-7 Minimum distance to the environment
