Siemens SIMATIC RF600 Series User Manual

Antennas
6.7 SIMATIC RF660A
SIMATIC RF600
System Manual, 11/2018, J31069-D0171-U001-A21-7618
301
6.7.4 Connecting the antenna
The SIMATIC RF660A antenna must be connected to the reader using an antenna cable.
Preassembled standard cables in lengths of 1 m, 3 m, 5 m, 10 m, 15 m, 20 m and 40 m are
available to connect the antenna.
The range of the antenna is limited by the cable loss. The maximum range can be achieved
with the cable 6GT2815-0BH10 (length 1m), since this cable has the lowest cable loss.
Requirement
Note
Use of Siemens antenna cable
To ensure optimum functioning of the antenna, i
t is recommended that a Siemens antenna
cable is used in accordance with the list of a
ccessories.

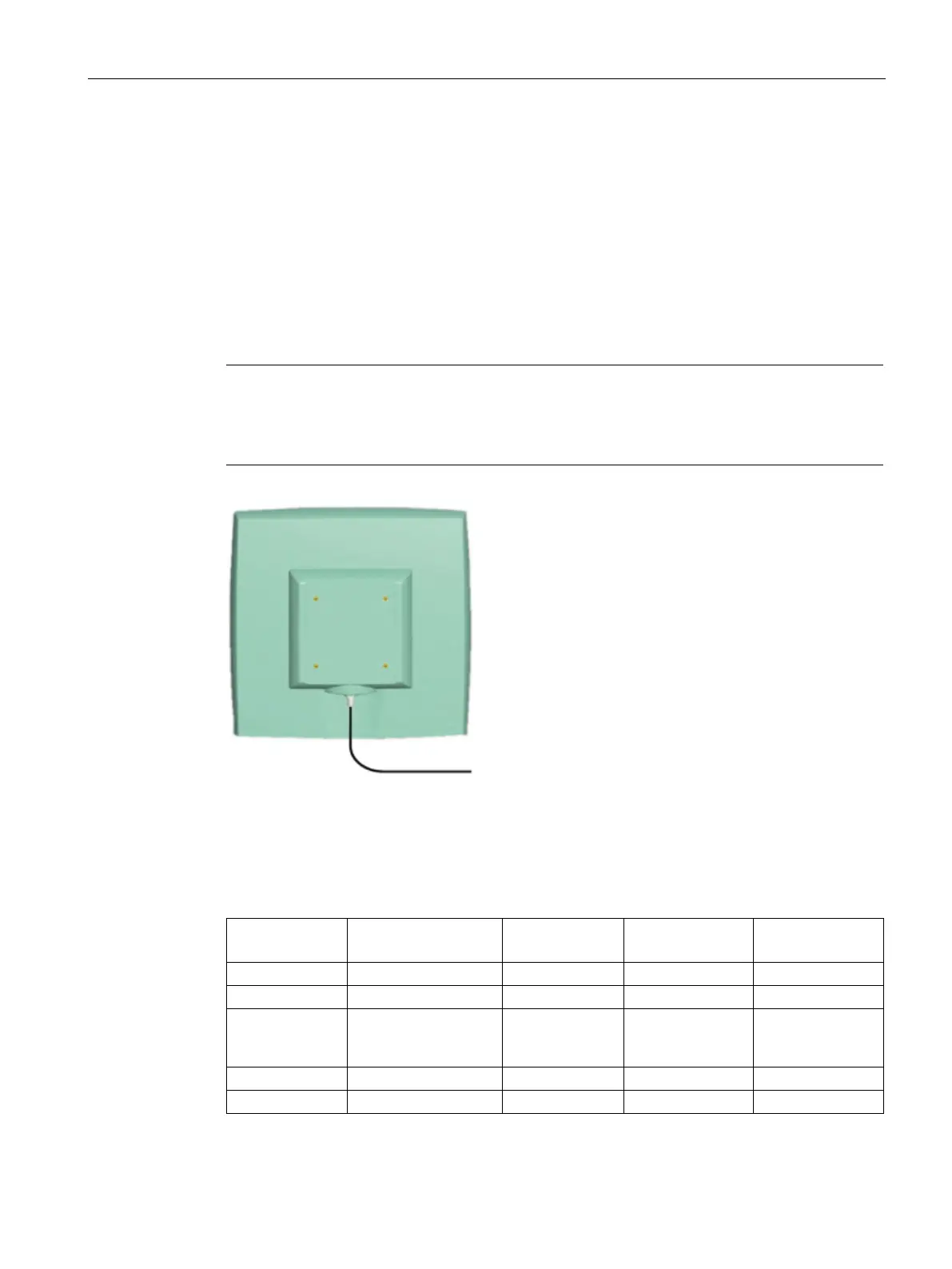

Figure 6-47 Rear of antenna with RTNC connection
Bending radii and bending cycles of the antenna cable
Table 6- 37 Bending radii and bending cycles of the antenna cable
Cable designa-
tion
Article number
Length [m]
Cable loss [dB]
Bending radius
[mm]
1)
Antenna cable
6GT2815-0BH10
1
0.5
51
Antenna cable
6GT2815-0BH30
3
1
51
Antenna cable
(suitable for drag
chains)
6GT2815-2BH50 5 1.5 44
2)
Antenna cable
6GT2815-1BN10
10
2
77
Antenna cable
6GT2815-0BN10
10
4
51
