Transponder
7.8 SIMATIC RF620T
SIMATIC RF600
382 System Manual, 11/2018, J31069-D0171-U001-A21-7618
7.8.2 Ordering data
Table 7- 25 Ordering data RF620T
Spacer for SIMATIC RF620T 6GT2898-2AA00
Delivery format
SIMATIC RF620T is supplied in the following form:
● 20 transponders per packaging unit
Minimum order quantity: 1 packaging unit (20 units)
7.8.3 Planning the use
7.8.3.1 Range when mounted on flat metallic carrier plates
The transponder generally has linear polarization. The polarization axis runs as shown in the
diagram below. When using a circular antenna and when the transponder is centrally
mounted on a plane metal plate, which may either be almost square or circular, it can be
aligned in any direction. When using a linear antenna, the polarization axes of antenna and
transponder must always be aligned in parallel.

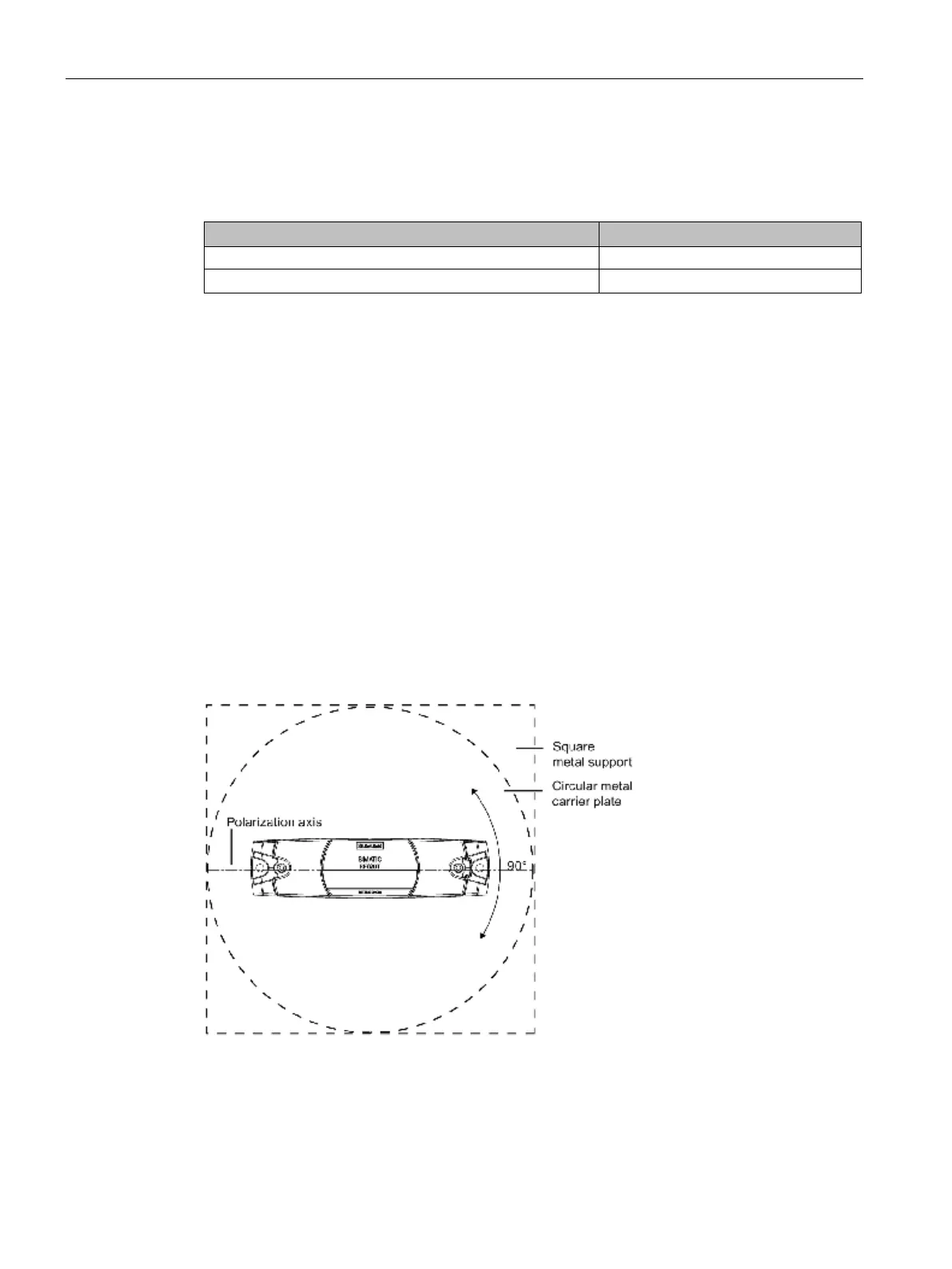

Figure 7-17 Optimum positioning of the transponder on a (square or circular) metal surface
