Expert Functions

5.6 Measuring Function

Connection of the SINAMICS S120 to the Technology CPU

164 Product Information, 09/2011, A5E00480378-04

Creating and configuring measuring inputs in S7T Config

To create and configure a measuring input, follow these steps:

1. Switch to the Technology > Axes > Axis_1 > Measuring input folder in the

S7T Config project navigator.

2. Insert the measuring input in the project by clicking "Insert measuring input".

A dialog opens.

3. Click "OK" to confirm the unchanged settings.

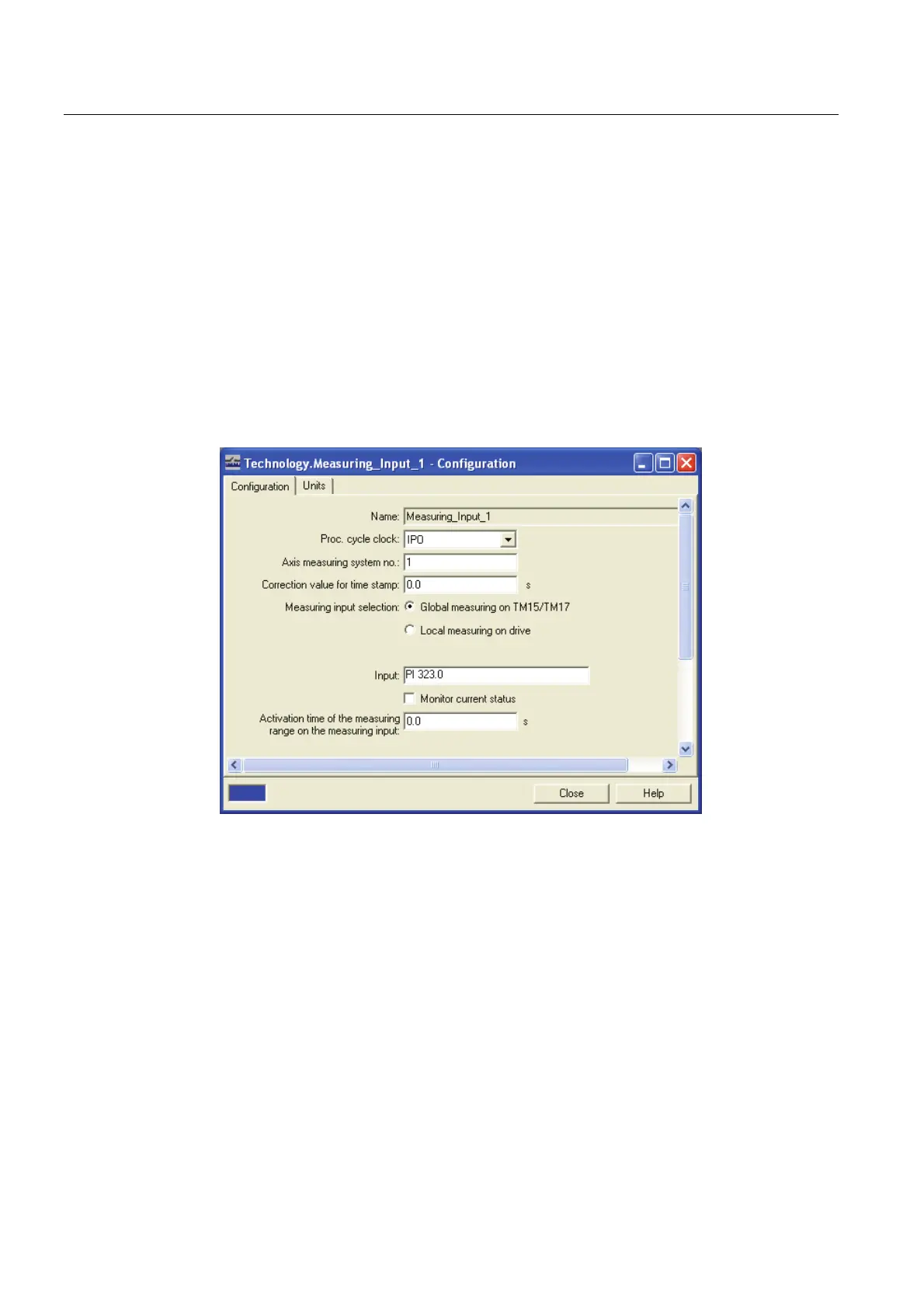

4. To parameterize the measuring input, switch to the

Technology > Axes > Axis_1 > Measuring inputs > Measuring input_1 > Configuration

dialog in the S7T Config project navigator.

The "Configuration" dialog opens.

5. Enter the following input address for this example: PI 323.0.

The address 323 is derived from the offset address of TM17 of 3 bytes and from the

PROFIBUS address of the TM17 module of 320 bytes.

The bit address results from the use of the first DI/O 0 input on the

TM17 terminal module.

Result

This completes the configuring in S7T Config.

As the next step, you will have to create the user program.
