Siemens SIMATIC S7-300 Module data Product Information

Commissioning
3.3 Preparing the connection to the SINAMICS
Connection of the SINAMICS S120 to the Technology CPU
26 Product Information, 09/2011, A5E00480378-04

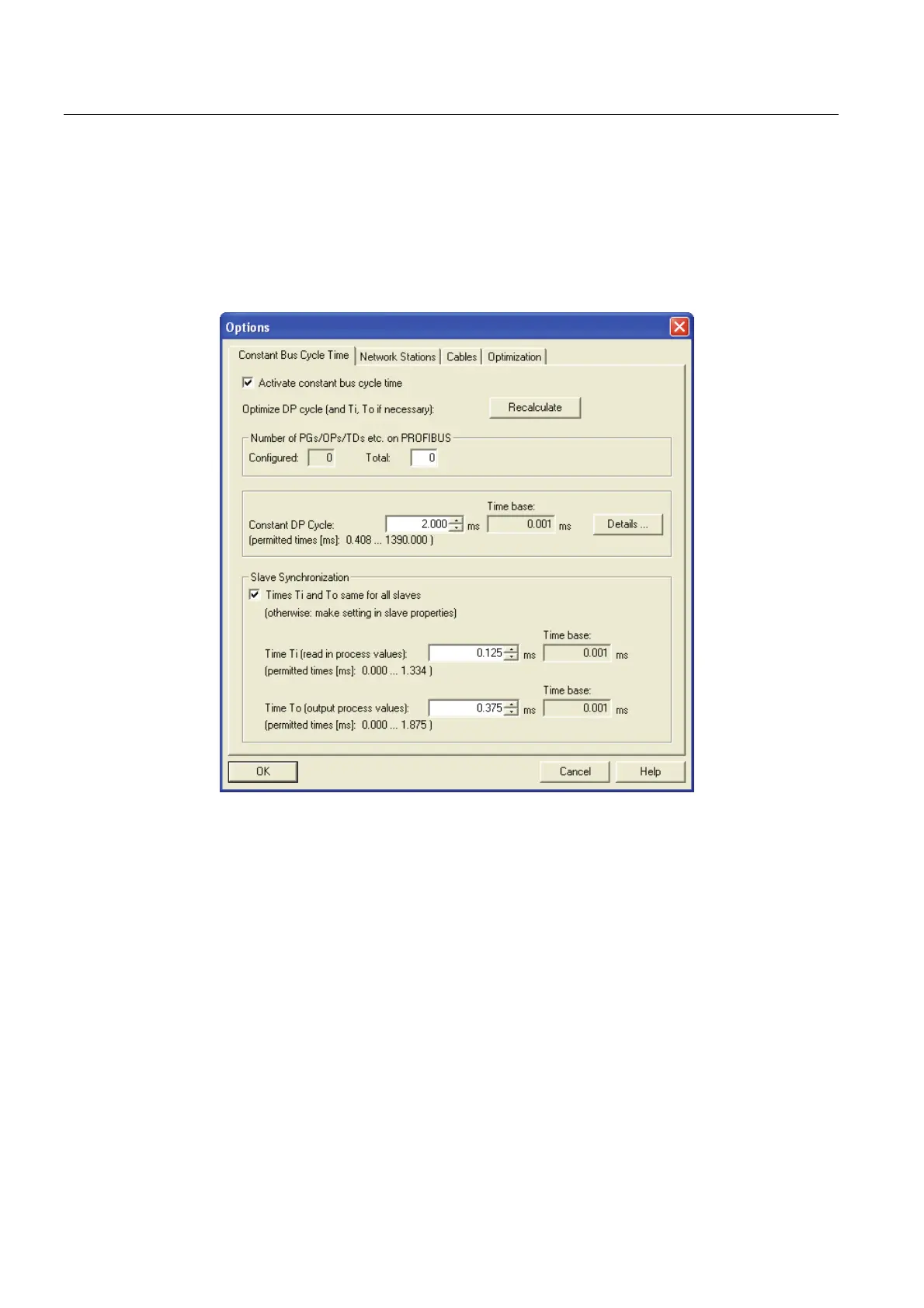

3. Click the "Options" button to make additional settings for PROFIBUS. In the
"Constant bus cycle time" tab, activate the "Activate constant bus cycle time" function.
Also activate the "Slave Synchronization" to keep the time values identical for all
connected slaves. Then click the "Recalculate" button to calculate the constant
DP cycle time and the T
i
and T
o
times. Round up the calculated constant DP cycle time
(0.250 ms step) and enter the rounded value in the input box.
Recommended rounded values are, for example, 1.5 ms or 2.0 ms.
Click the "OK" button to confirm the settings. The configured objects are then added to
the SIMATIC 300 station.
4. To automatically generate the technology system data, open the object properties
in the shortcut menu of the technology. In the "Technology system data" tab,
activate the "Generate technology system data" function.

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
