SIMATIC IPC547G
Operating Instructions, 04/2020, A5E49948632-AA
13
Device with standard enclosure
Device with short enclosure
Interfaces
See section "Interfaces (Page 20)".
Drive bays
• On the front:
– 4 × slimline removable trays in the drive
cage type A or
– 1 × 5.25" with mounting bars and
3 × slimline removable trays in the drive
cage type A or
– 3 × 5.25"/3.5" with mounting bars in
drive cage type B
and in each case
– 1 x slimline format for DVD burner
• Internal:
– 2 x 3.5" with cage for internal mounting
of drive
• Internal:
– 2 × 3.5"
or
– 2 × 2.5"

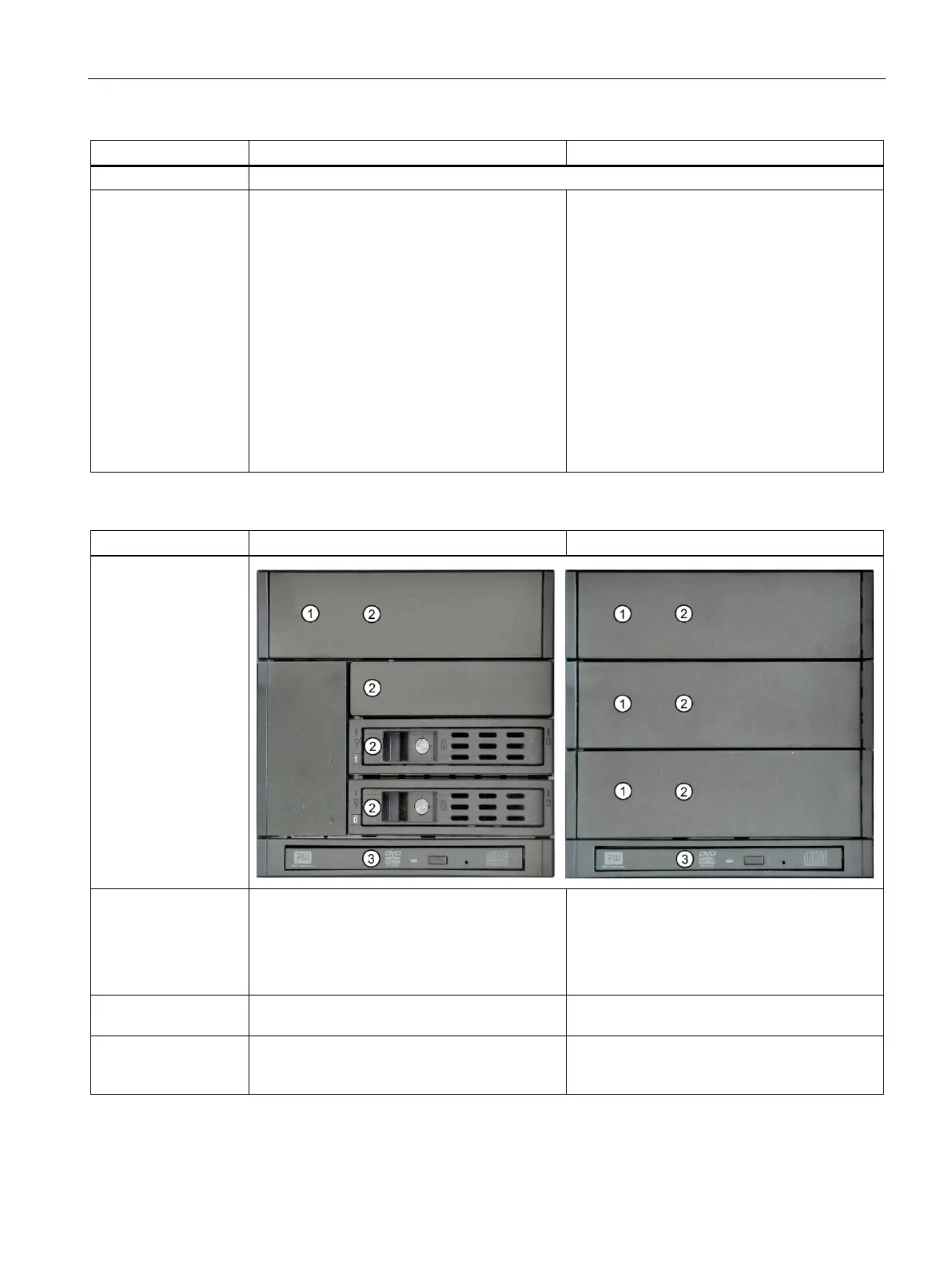

Installation options of drives in a standard enclosure
Drive cage type A
Drive cage type B
Basic design
Possible drive bays
• 4 × 3.5"/2.5"
②
or
• 1 × 5.25"
① + 3 × 3.5"/2.5" ②
and
• 1 × 9.5 mm slimline ODD
③
• 3 × 3.5"/2.5"
②
(max. 2 are released) or
• 3 × 5.25"
①
and
• 1 × 9.5 mm slimline ODD
③
of which drives in the
removable tray
4 0
of which drives for
internal, robust instal-
lation
0 2 (3.5"/2.5")

Siemens Simatic series Specifications

General

Processor	Intel Core i3, Core i5, Core i7
Operating System	Windows 10 IoT Enterprise, Linux
Storage	SSD, HDD
Interfaces	Ethernet, USB, RS-232/485
Ports	Ethernet, USB, Serial
Mounting	DIN rail, wall
Protection Class	IP65
Graphics	Integrated Intel HD Graphics
Expansion Slots	PCIe
Power Supply	24V DC or 100-240V AC
Operating Temperature	0°C to 50°C (depending on model)
