Expanding and assigning parameters to the device
6.1 Information on expansions
SIMATIC IPC547G
72 Operating Instructions, 04/2020, A5E49948632-AA
See also
ESD guideline (Page 143)
Spare parts and repairs (http://support.automation.siemens.com/WW/view/en/16611927)
6.1.1 Drives
Drives can be installed in the standard enclosure as follows:
● In the drive cage type A for operable drives in the removable tray
● In the cage for internal mounting of drive
● On a drive bay plate on the left-hand side wall
Drives can be installed in the
short enclosure variant as follows:
● On a drive bay plate on the front
6.1.1.1 Permissible expansion for temperature range 0 to 35 °C

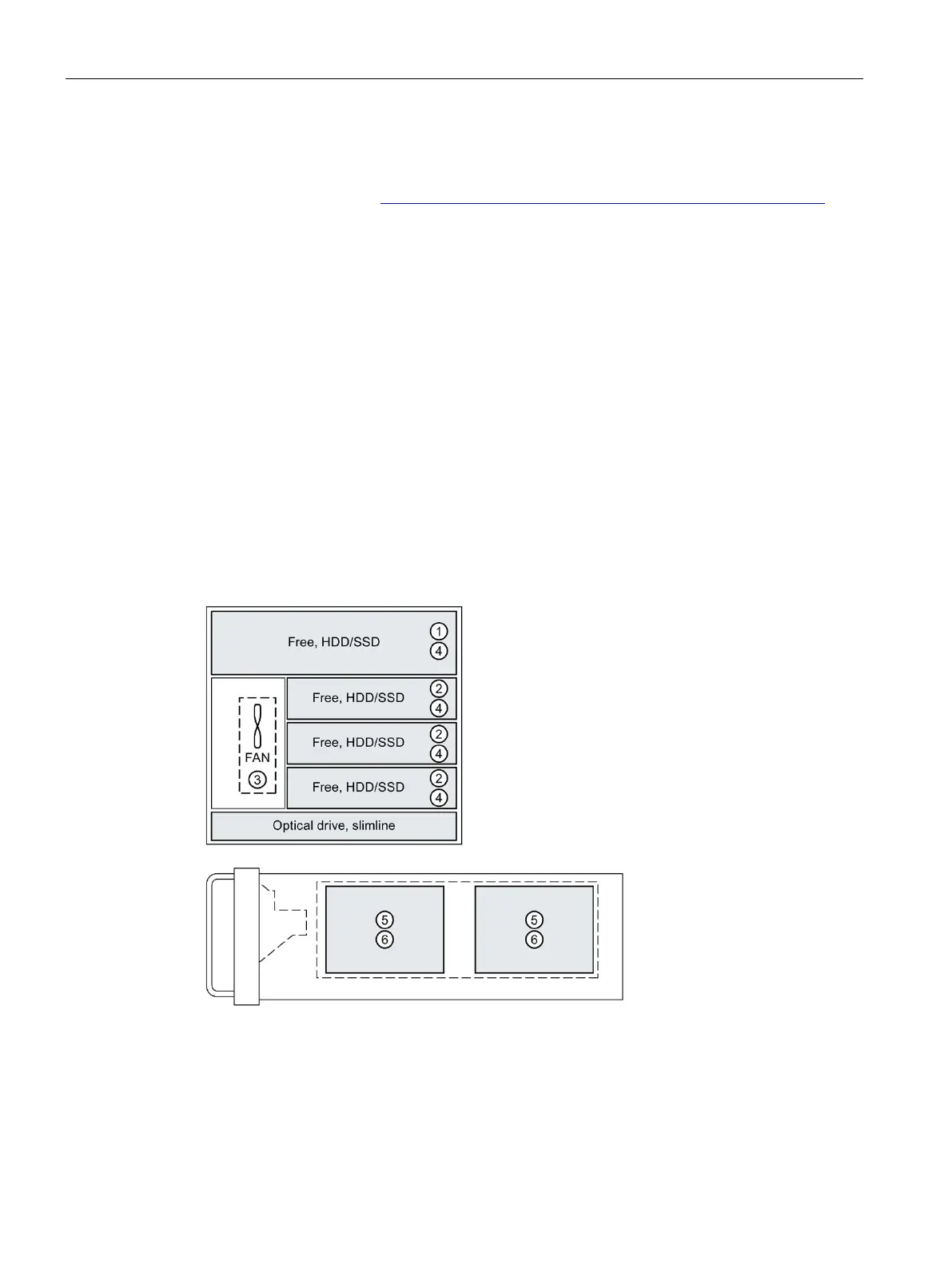

Enclosure variant with drive cage type A
①
Drive in 5.25" adapter for removable tray
②
Drive in removable tray
③
Fan on drive cage type A. The fan is only required
in conjunction with the hard disk type "Enterprise"
④
Hard disk type "Enterprise" is possible
⑤
Additional drive mounted
on the left
-hand side wall
on the drive bay
plate For
details, see section
"
Install / replace internal
hard disk/SSD on the side
panel (standard enclosure
only) (Page 92)."
⑥
Hard disk type "Enter-
prise" is possible
The maximum permitted power loss of the expansion cards is 80 W.
