Technical specifications
8.3 Dimension drawings
SIMATIC IPC547G
Operating Instructions, 04/2020, A5E49948632-AA
147

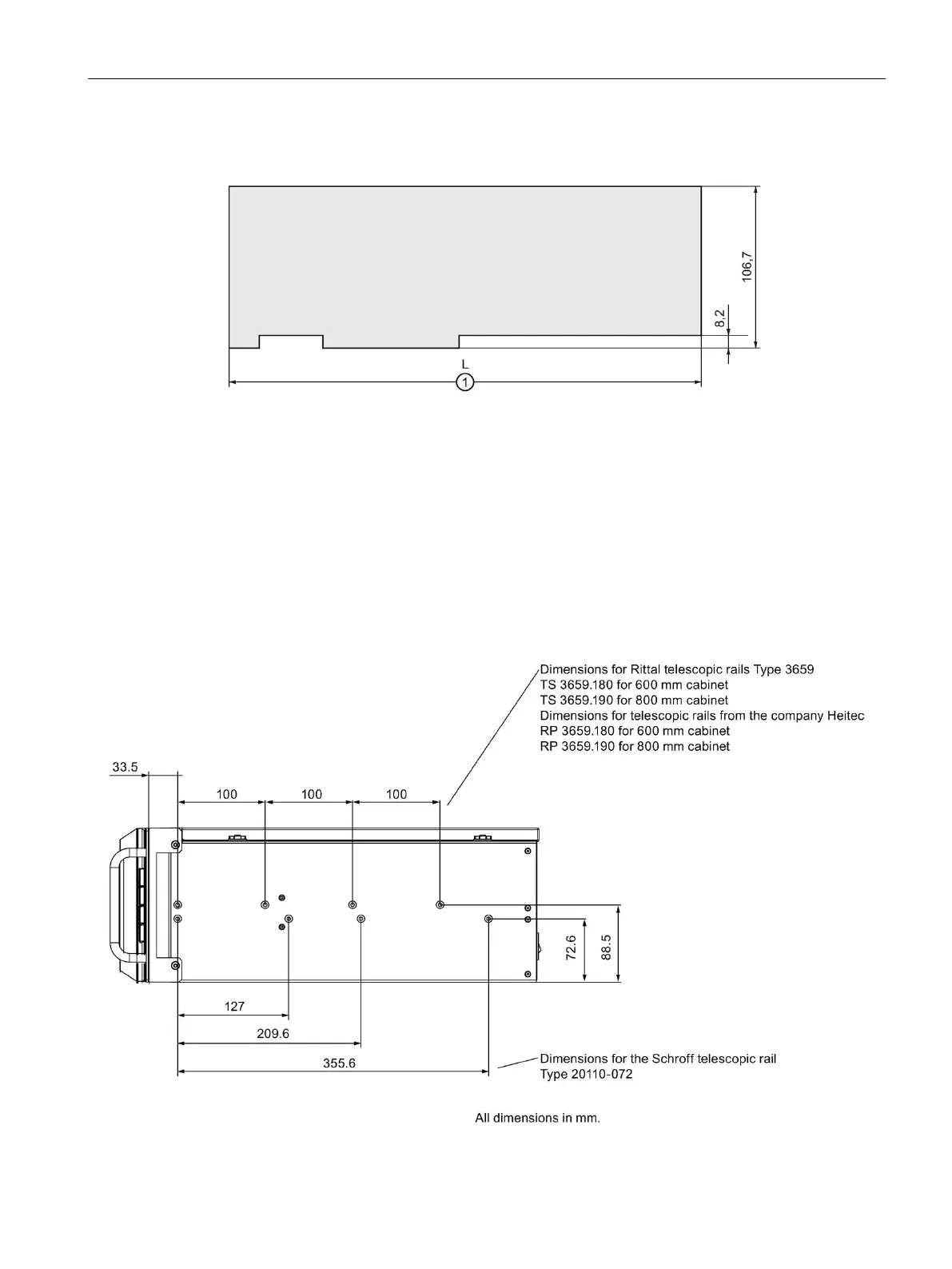

8.3.2 Dimension drawing of the expansion cards
① L
Length of expansion card
Device with standard enclosure: 312
Device with short enclosure: 260
All dimensions in mm
8.3.3 Dimension drawing of the telescope rails
Device with standard enclosure: Dimensions for bore holes for telescopic rails
