Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC547G
80 Operating Instructions, 04/2020, A5E49948632-AA
6.6.2 Removing and installing a 3.5"/2.5" drive in drive cage type B
Requirement
● The device is equipped with the drive cage type B.
● The device is fully disconnected from the mains voltage; see section "Switching off the
device (Page 63)".
● The device is open; see section "Open the device (Page 76)".
● Screwdriver T10 for loosening the HDD
● Screwdriver T8 for loosening the SSD

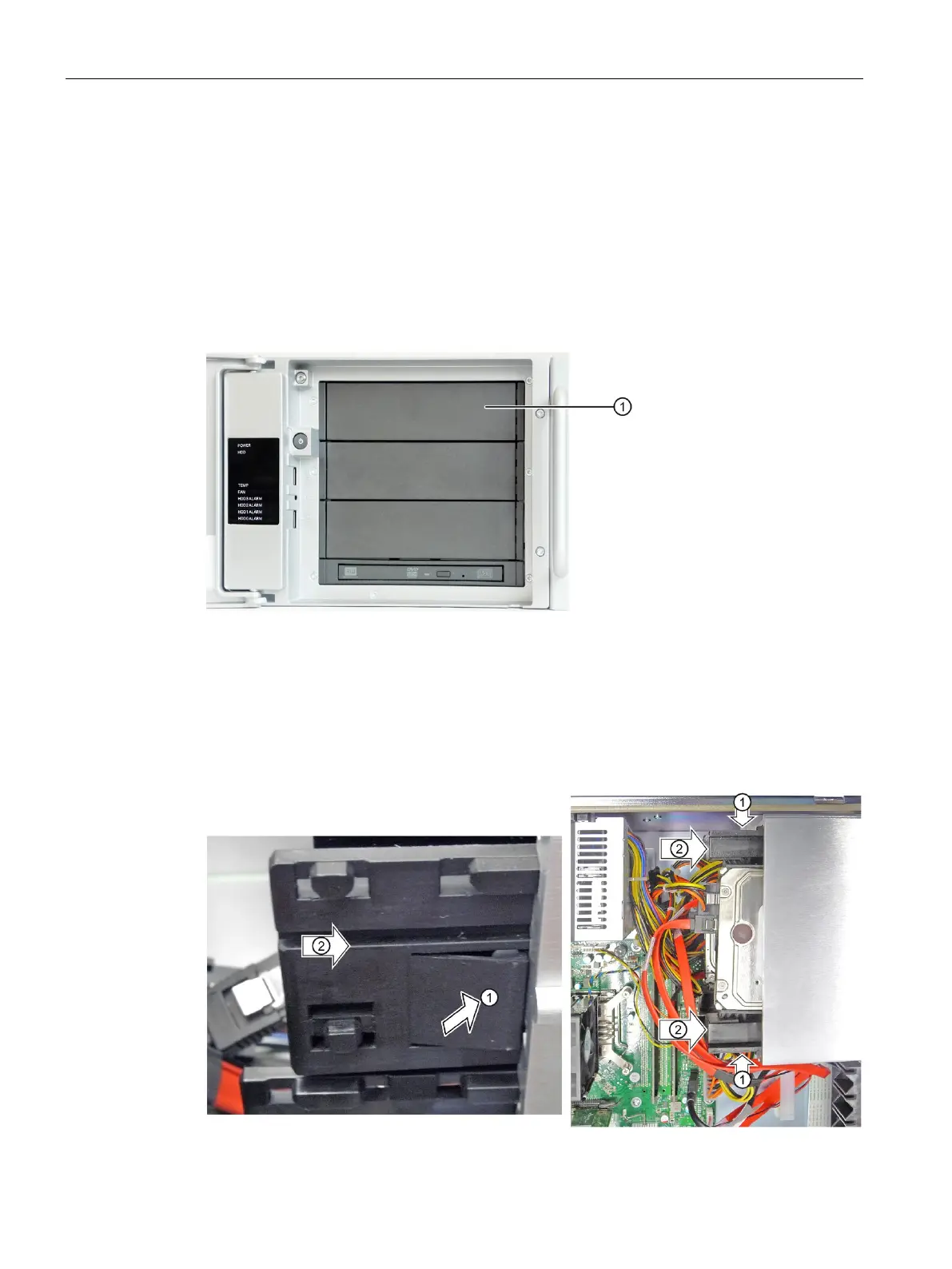

①
Drive with drive bay cover
Procedure
1. Remove the power supply and data cables from the drive.
2. Unlock the drive mounting bar by pressing laterally against the surfaces
① and push the
drive mounting bar forward from the device in the direction of the arrow
②. Carefully set
down the drive mounting bar.
