Device maintenance and repair
7.4 Removing and installing hardware
SIMATIC IPC547G
116 Operating Instructions, 04/2020, A5E49948632-AA
7.4.1.2 Change the fan on drive cage type A
The fan is only installed in the removable tray (drive cage type A) for configurations with
RAID and the hard disk type "Enterprise".
Requirement
● The device is fully disconnected from the mains voltage; see section "Switching off the
device (Page 63)".
● The device is open; see section "Open the device (Page 76)".
● 5.25" adapter for removable rack unit in slot 3 has been removed; see section "Installing
a hard disk or SSD in slot 3 (Page 91)"
● A fan
Use only a fan of the same type.

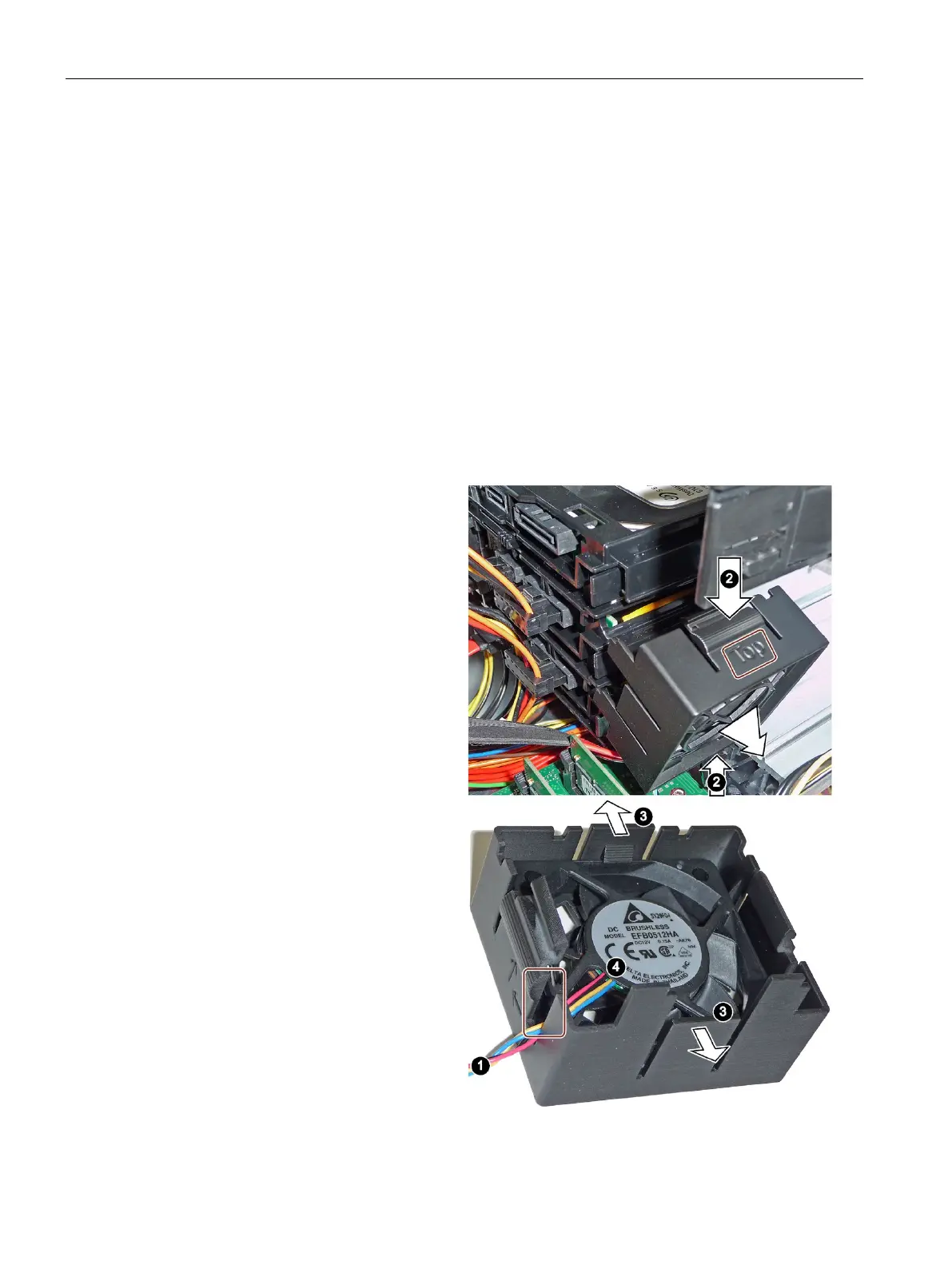

Procedure
Detach the fan cable from the
motherboard.
Press the upper and lower lock in
the direction of the arrow, remove
the fan support from the drive
cage and put it down as shown.
Note: The fan holder is labeled as
follows:
– At the top
② with "Top"
– At the bottom
② with arrows
which indicate the direction of
rotation and air flow of the fan.
Bend the locking latches of the
fan support slightly outwards and
remove the fan from the fan
support.
Place the new fan in the fan
support as shown. Use the cable
outlet
④
as a guide, it must lie on
the highlighted recess through
which you guide the fan cable.
Finally, snap the new fan
completely into place in the
locking latches
③.
Mount the fan support on the
drive cage (see above).
Connect the fan cable to the
motherboard.
