Device maintenance and repair
7.4 Removing and installing hardware
SIMATIC IPC547G
Operating Instructions, 04/2020, A5E49948632-AA
115

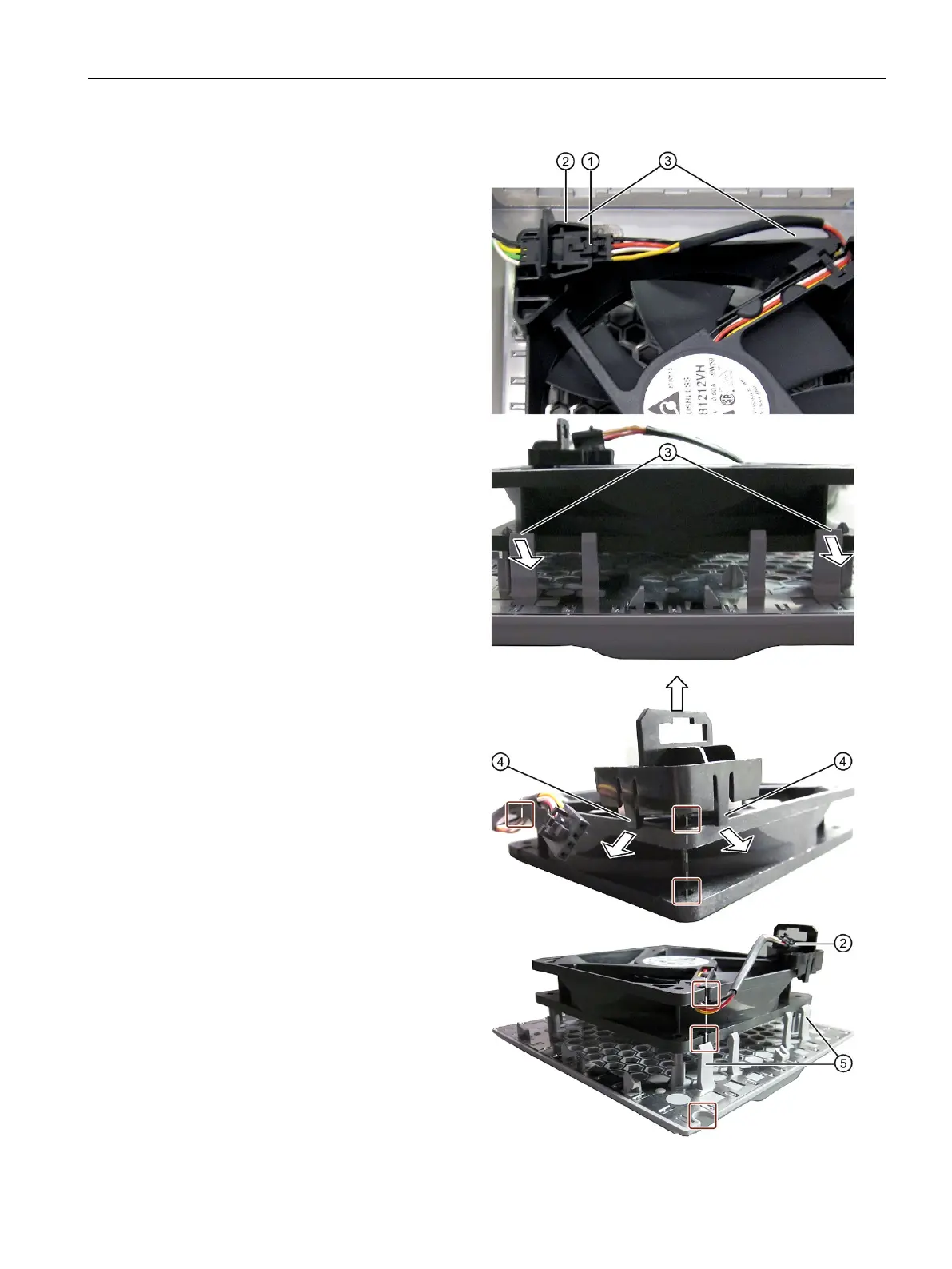

Replace the fan in the fan support
1.
Press on the clip on the small fan
cable plug connector
and
remove the connector from the
larger adapter plug
.
2.
Press on the side of the clips
and loosen the adapter plug from
the cable holder.
3.
Loosen the locking latches of
the fan support at the front and
rear and remove the fan.
4.
Loosen the locking latches of
the cable holder and remove the
cable holder.
Place the cable holder on the
new fan as shown. Use the
highlighted positions as a guide.
Snap the cable holder into place.
5.
Place the new fan on the fan
support as shown. Use the
highlighted positions as a guide.
Snap the new fan into place in
the locking latches
.
6.
Install the adapter connector
of the fan cable in the cable
holder.
7.
Insert the small fan cable
connector
in the adapter
connector again.
8.
Mount the fan support in the
enclosure (see above).
