Device maintenance and repair
7.4 Removing and installing hardware
SIMATIC IPC547G
114 Operating Instructions, 04/2020, A5E49948632-AA
Procedure

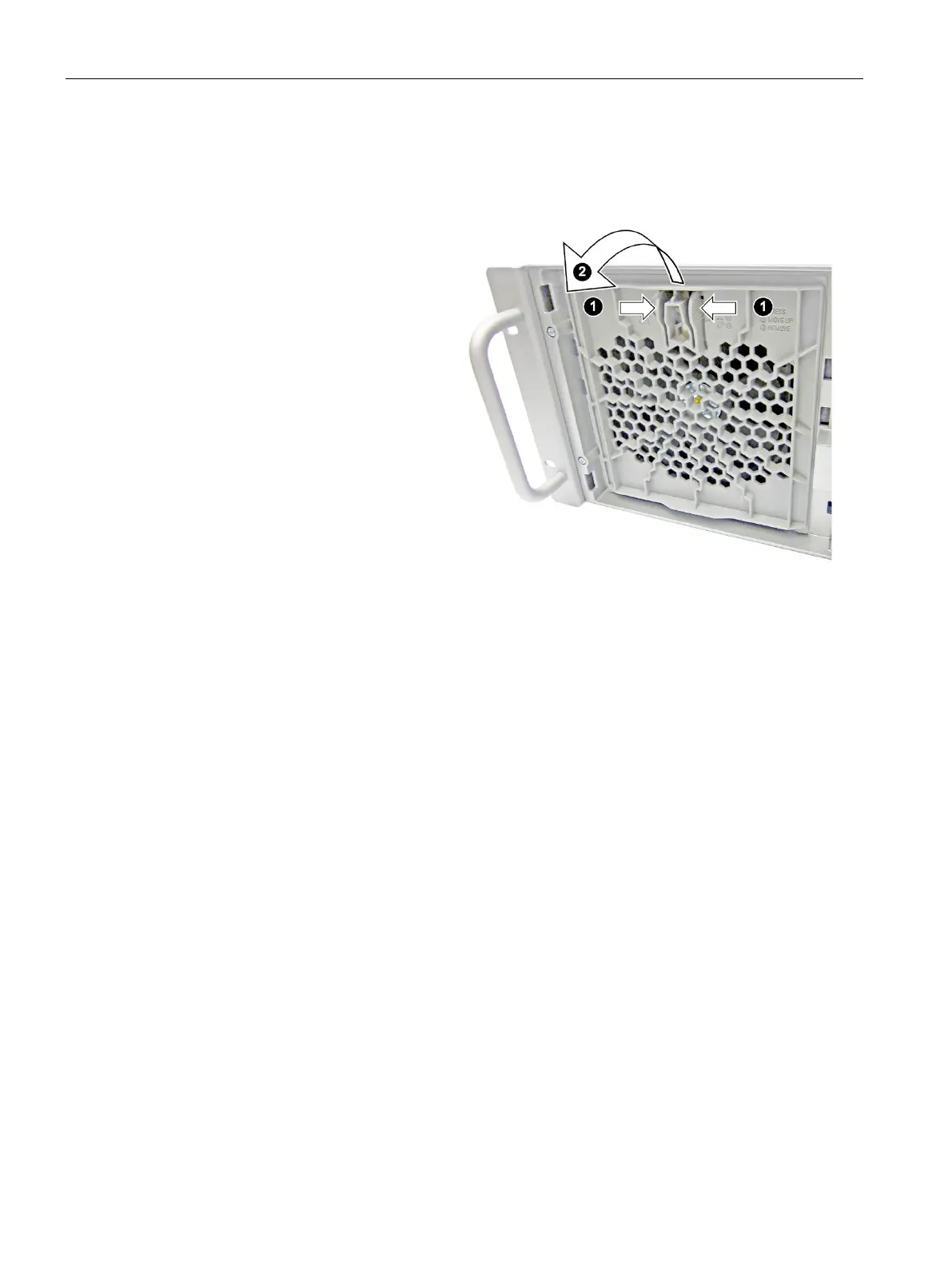

Remove the fan support
1.
Press the locks
①
together and
keep them pressed.
2.
Lift the fan support ② slightly
upwards from the bayonet fitting
and remove it to the front from
the front of the enclosure.
3.
Put down the fan support with the
openings facing down (fan is
above, see following figures).
