Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC547G
Operating Instructions, 04/2020, A5E49948632-AA
87
6.6.5 Installing and replacing SSDs, short enclosure
Requirement
The device is fully disconnected from the mains voltage, see section "Switching off the
device (Page 63)".
The device is open, see the chapter "Open the device (Page 76)".
T8 screwdriver
Procedure
Removal

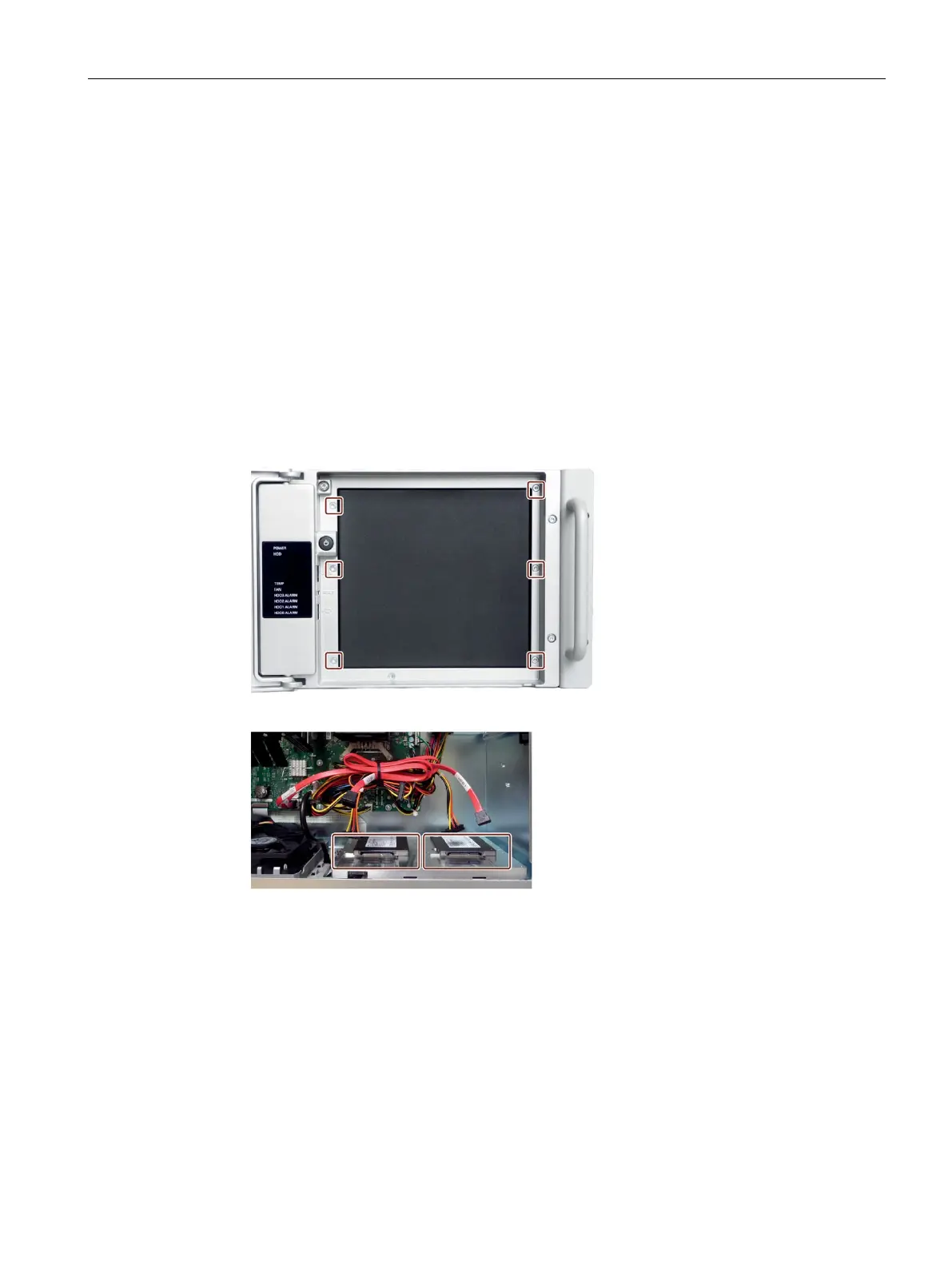

1. Loosen the highlighted screws and remove the drive bay plate from the device.
The internal hard disks are located on the front wall of the device.
2. Disconnect the power supply and data cables from the hard disk that you are removing.
