Overview
1.2 Device configuration
SIMATIC IPC547G
20 Operating Instructions, 04/2020, A5E49948632-AA

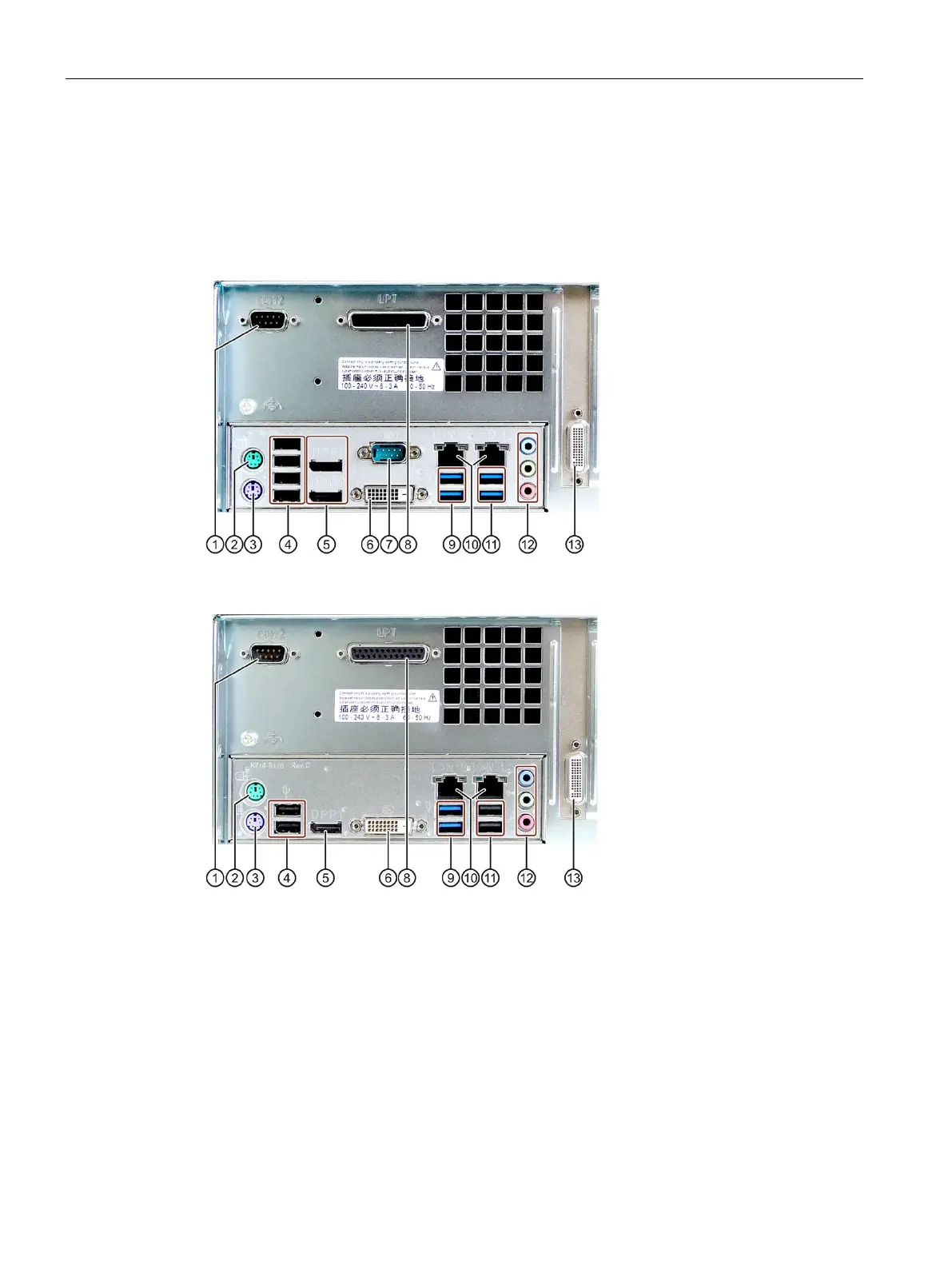

1.2.1 Interfaces
Interfaces
Device with motherboard D3446-S
Device with motherboard D3445-S
①
COM2
Serial interface 2
(V.24), 9-pin D-sub socket (optional)
②
Mouse
Connection for a PS/2 mouse
③
Keyboard
Connection for a PS/2 keyboard
④
USB 2.0
Connections for USB devices
⑤
DPP
Connection for monitors with DisplayPort interface or VGA via
DP/VGA adapter or DVI
-D via DP/DVD-D adapter (optional)
⑥
DVI
-D
Connection for monitor with DVI interface
⑦
COM1
Serial interface 1 (V.24), 9
-pin D-sub socket
