SIMATIC IPC547G
Operating Instructions, 04/2020, A5E49948632-AA
161

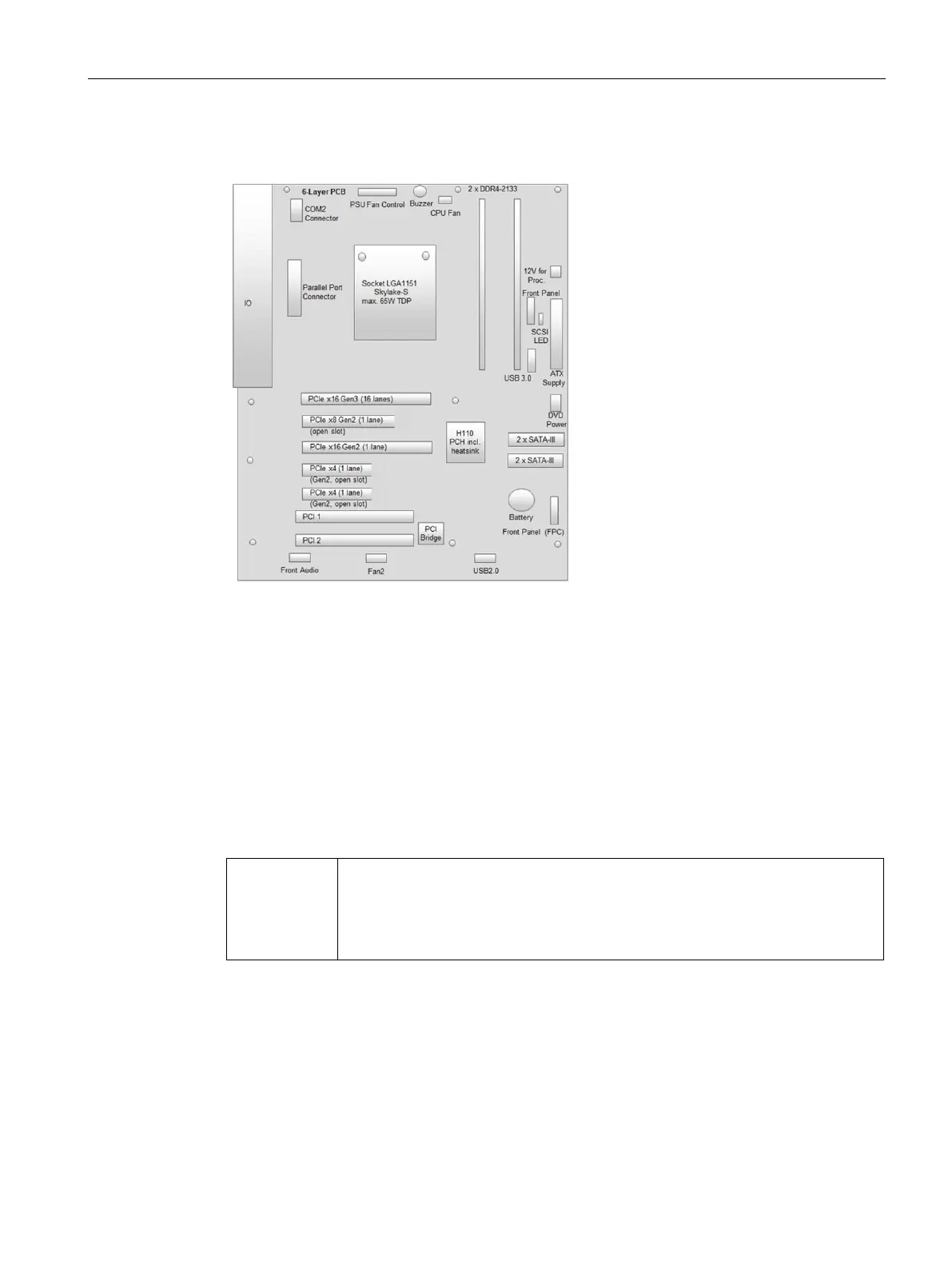

Layout of the motherboard D3445-S
Additional information
For a description of the interfaces, refer to section "Interfaces (Page 20)".
8.5.2 System resources
All system resources (hardware addresses, memory configuration, allocation of interrupts,
DMA channels) are assigned dynamically by the Windows OS, depending on the hardware
configuration, drivers and connected external devices. You can view the current
configuration of system resources or possible conflicts with the following operating systems:
Mi-
crosoft Window
s
1. Press the "Windows key" and "R" at the same time.
The "Run" dialog box opens.
2. Enter "msinfo32" in the "Open" field.
3. Confirm your entry with "OK".
8.5.3 Interrupt assignment
Interrupt assignment depending on operating system
The functions are assigned different interrupts (IRQ), depending on the operating system. A
distinction is made between the PIC and APIC modes.

Siemens Simatic series Specifications

General

Processor	Intel Core i3, Core i5, Core i7
Operating System	Windows 10 IoT Enterprise, Linux
Storage	SSD, HDD
Interfaces	Ethernet, USB, RS-232/485
Ports	Ethernet, USB, Serial
Mounting	DIN rail, wall
Protection Class	IP65
Graphics	Integrated Intel HD Graphics
Expansion Slots	PCIe
Power Supply	24V DC or 100-240V AC
Operating Temperature	0°C to 50°C (depending on model)
