Overview
1.2 Device configuration
SIMATIC IPC547G
24 Operating Instructions, 04/2020, A5E49948632-AA
On/Off switch and alarm reset button

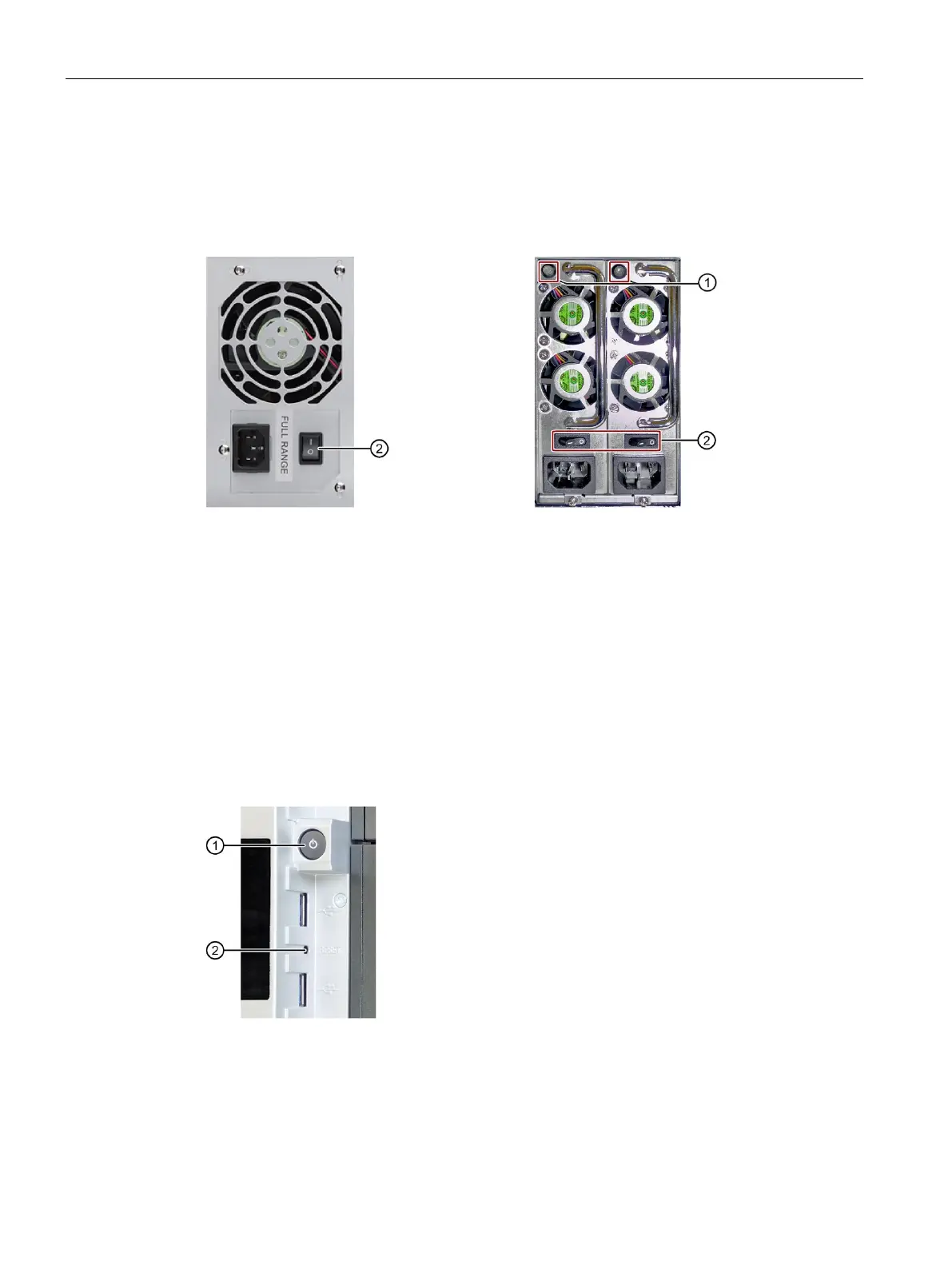

The following figures show the location of the on/off switch on the rear of the device for
devices with simple or redundant power supply. The alarm reset button is only available for
devices with redundant power supply.
①
Alarm reset button for switching off the warning signal of the redundant power supply
②
On/off switch
On/off switch and reset button
The On/off button ① and the reset button ② are located on the front of the device behind
the front door. The On/off button starts and shuts down the operating system. The reset
button is for the emergency when the device can no longer be operated.
You can find additional information in the chapters "Switching on the device (Page 55)" and
"Switching off the device (Page 63)."
①
On/off button
②
Reset button for
emergencies

Siemens Simatic series Specifications

General

Processor	Intel Core i3, Core i5, Core i7
Operating System	Windows 10 IoT Enterprise, Linux
Storage	SSD, HDD
Interfaces	Ethernet, USB, RS-232/485
Ports	Ethernet, USB, Serial
Mounting	DIN rail, wall
Protection Class	IP65
Graphics	Integrated Intel HD Graphics
Expansion Slots	PCIe
Power Supply	24V DC or 100-240V AC
Operating Temperature	0°C to 50°C (depending on model)
