Installing and connecting the device
3.2 Mounting the device
SIMATIC IPC547G
44 Operating Instructions, 04/2020, A5E49948632-AA
1
The systems meets the requirements according to IEC60297_3_100.
CAUTION
Risk of physical injury
The device is too heavy to be mounted exclusively with the 19-inch brackets of the front
panel. The device may fall down, injure people and get damaged.
Secure the device using additional measures. The mounting screws of the telescopic rails
may not protrude more than 5 mm into the device.
Note
For vertical operation, mount the device on a horizontal base made of metal and secure it
against falling. The following device stands are available from the
Rittal company:
Rittal type TE
7000.620, Rittal type VR 5501.655, Rittal type DK 5501.655.
Please observe the instructions from the cabinet manufacturer.

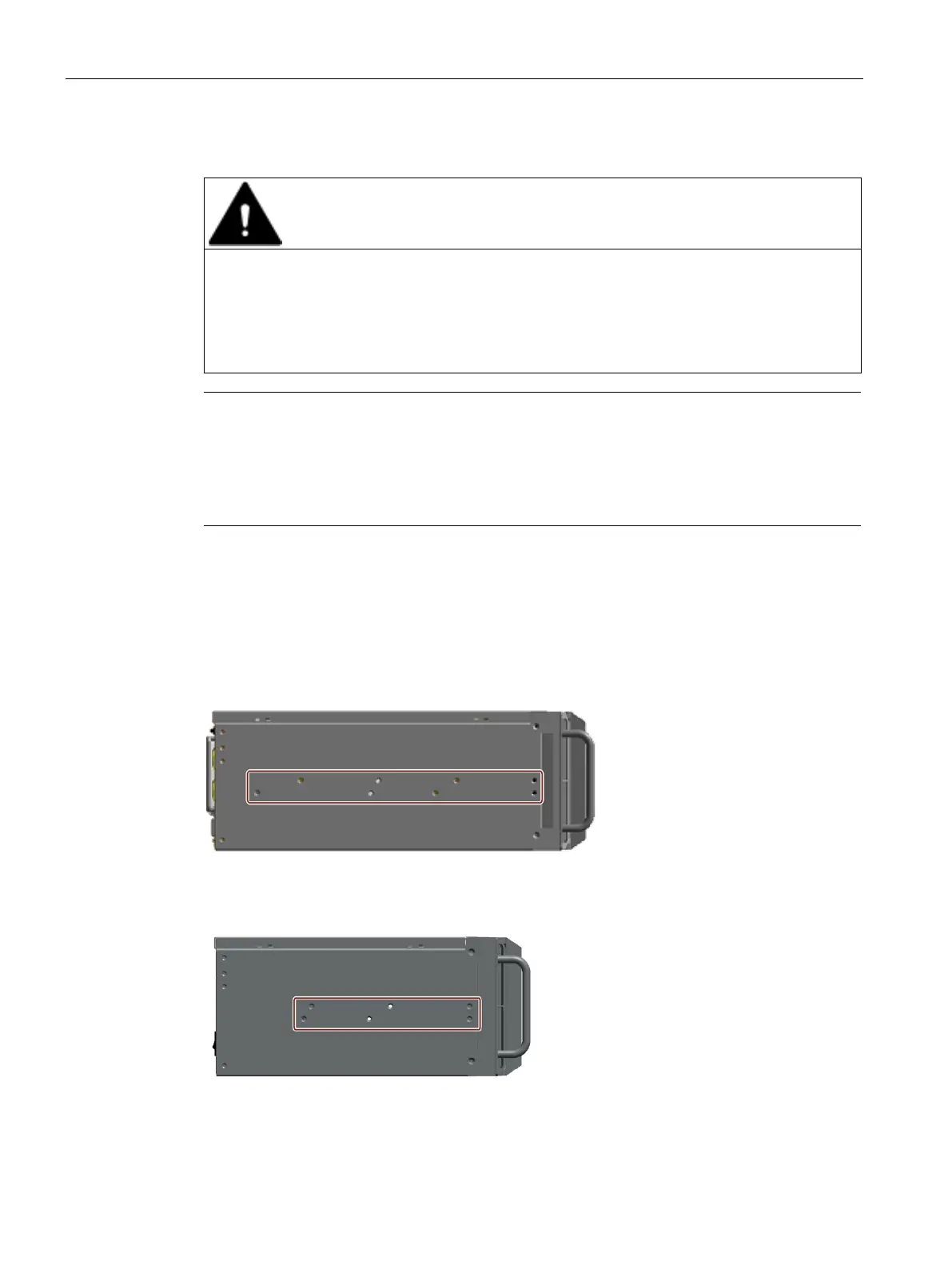

Position of the mounting holes for angle brackets or telescopic rails
The dimensions for the mounting holes are listed in the chapter "Dimension drawing of the
telescope rails (Page 147)".
Fastening holes for standard enclosure
Fastening holes for short enclosure
