Expanding and assigning parameters to the device
6.6 Drives
SIMATIC IPC547G
98 Operating Instructions, 04/2020, A5E49948632-AA
Procedure
Installing a drive
1. Remove the drive cover of the free slot, see section "Removing and installing a 3.5"/2.5"
drive in drive cage type B (Page 80)" or "Removing and installing the hard disk or SSD in
the removable tray (Page 83)".
2. Remove the drive bay cover
① (front) together with the right and left drive mounting bars
② from the slot.

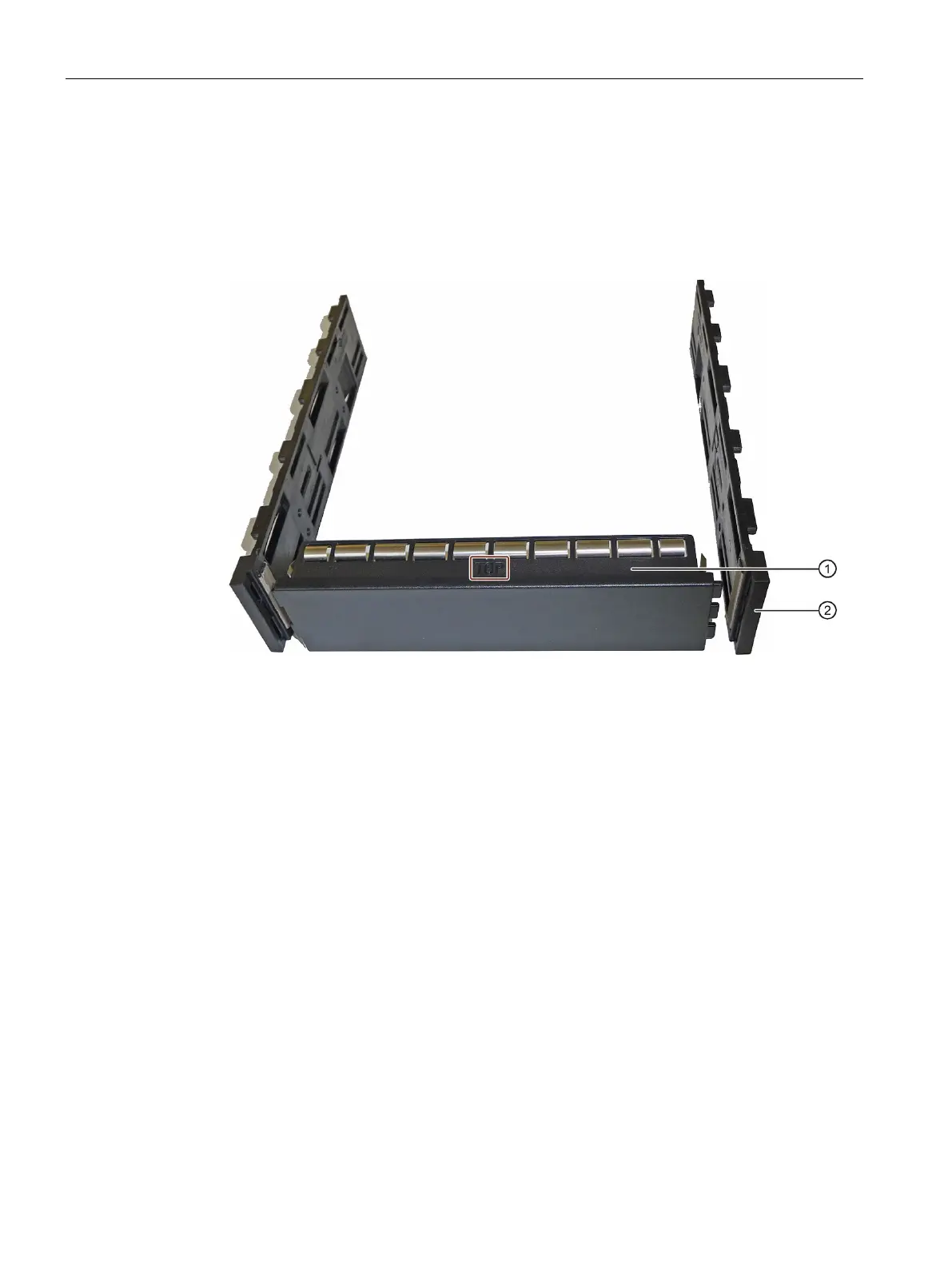

3. Remove the left and right drive mounting bars
① from the side and the drive bay cover
from the front
②.
Note: The mounting bars are labeled "L" and "R" and have to be installed in the same
way again on the "left" and "right".
4. Screw the right
② and left ③ drive mounting bars to the new drive. Take care not to
touch the contacts of the drive when you do this. The drive bay cover
① is no longer
required.
5. Carefully insert the new drive with the mounting bars into the drive cage from the front
and push it evenly, without tilting, in the guide rail on the left and the right until it snaps
into place at the back.
